Specifications
| CNC Control |
yes |
| Type of CNC Control |
Haas |
| # Axis |
3 |
| Machine Hours |
14057 |
Equipped With
GENERAL SPECIFICATIONS:

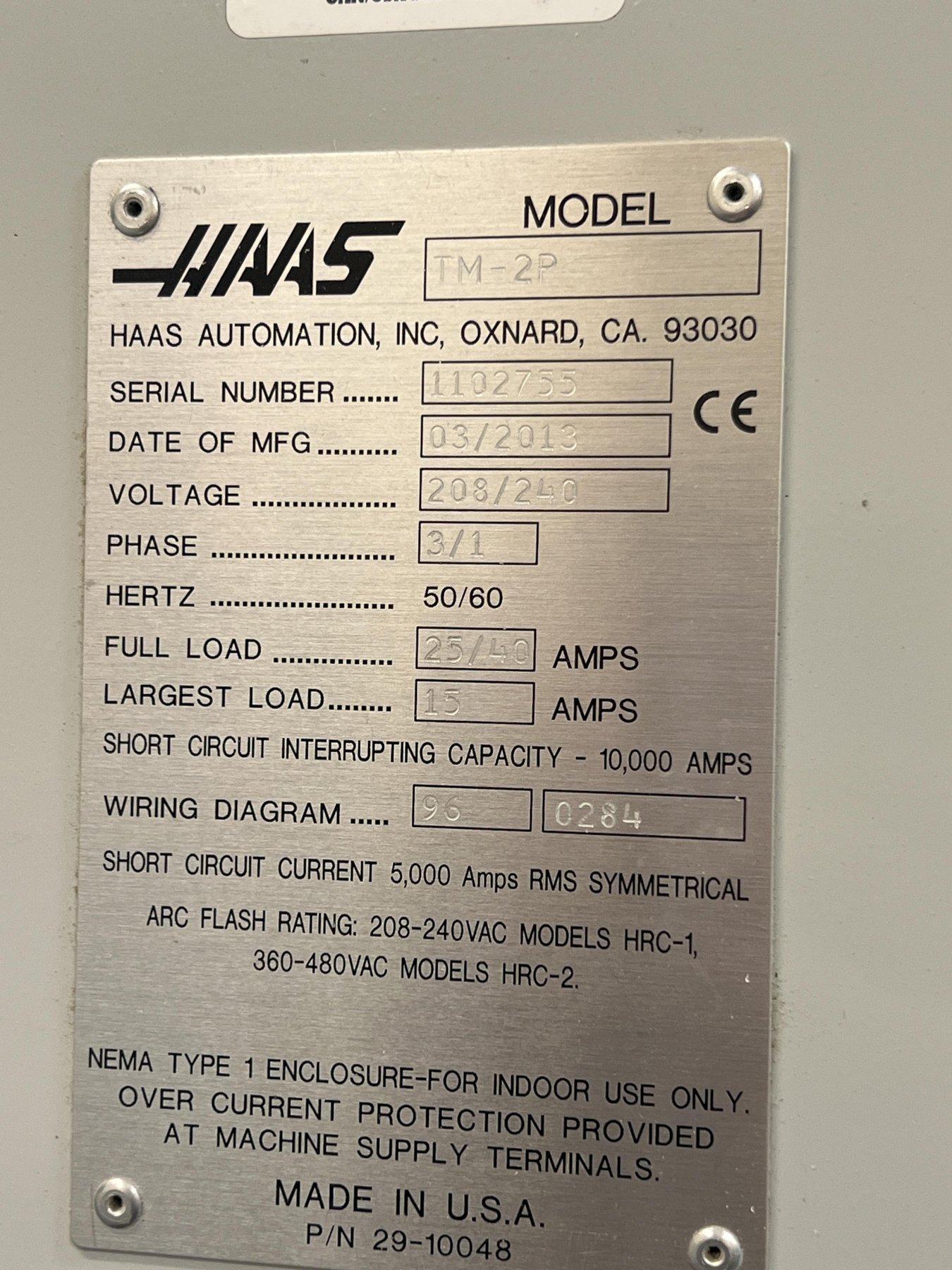

MAKE..................... HAAS
MODEL.................... TM-2P
SERIAL NUMBER............ 1102755
AGE (YEAR)............... 2013

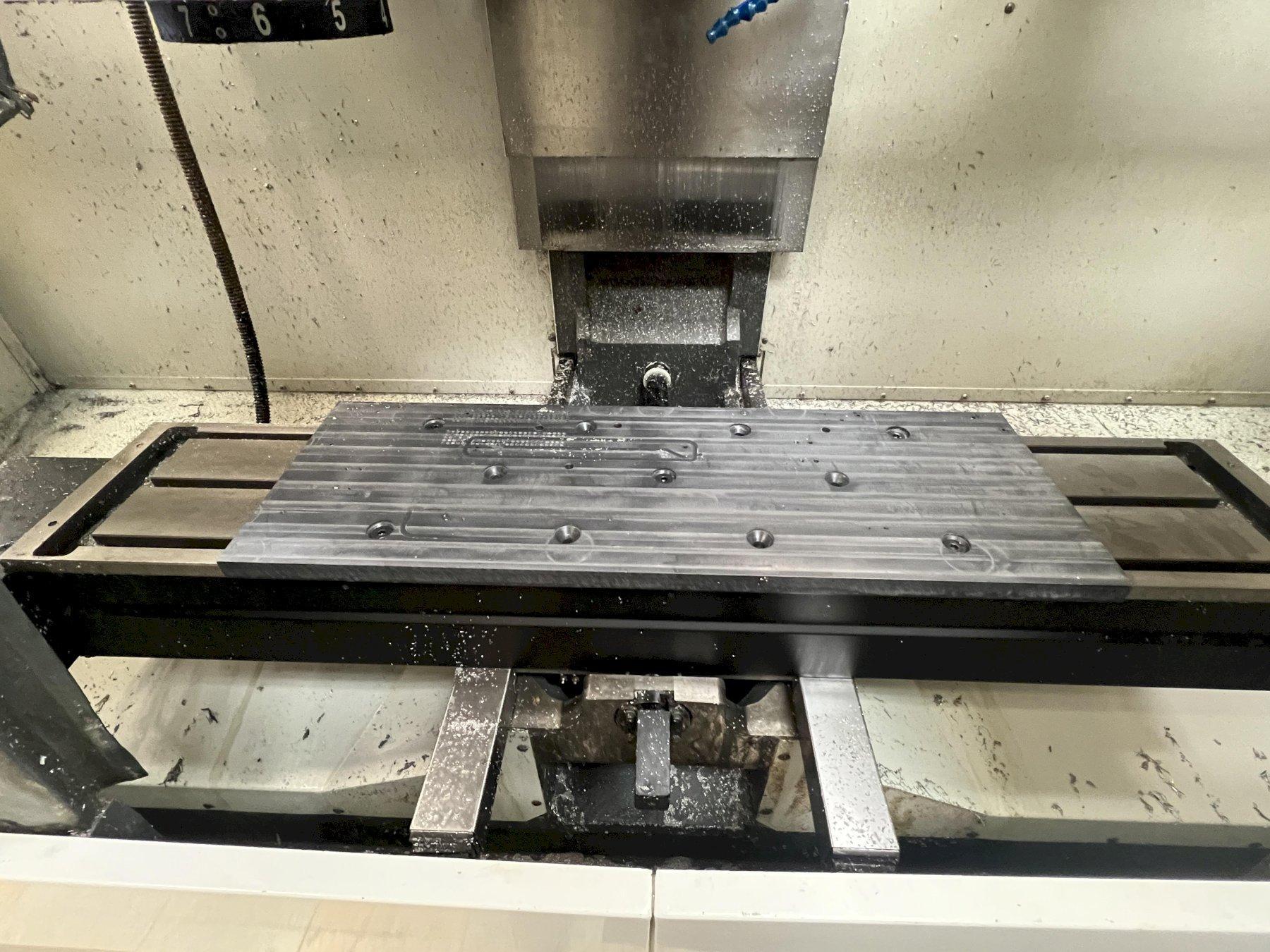

TABLE SIZE............... 57.75" X 10.5"
MAX TABLE LOAD........... 1000 LBS
TRAVELS X................ 40"
TRAVELS Y................ 16"
TRAVELS Z................ 16"

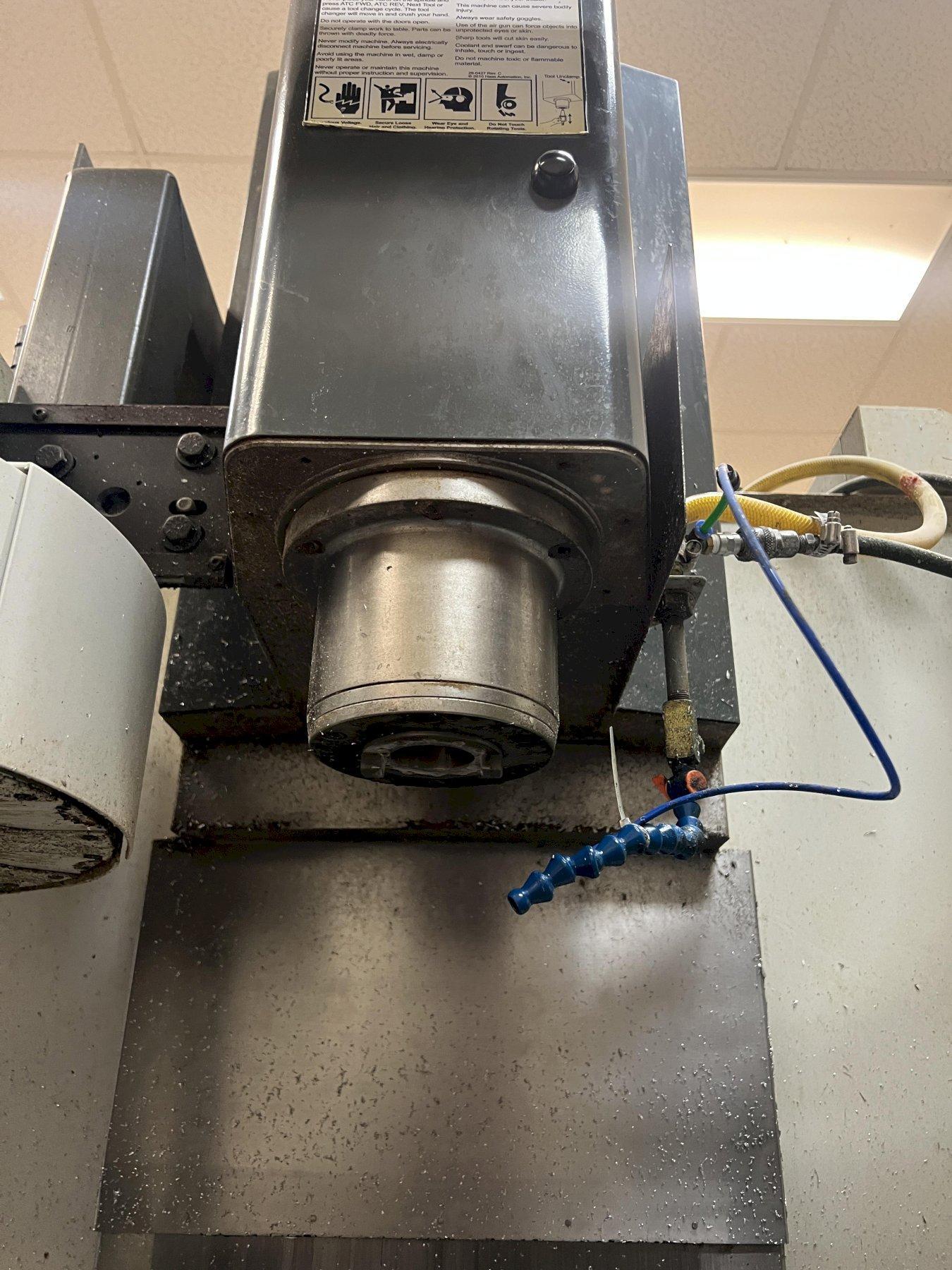

SPINDLE MOTOR............ 7.5 HP
SPINDLE SPEED............ 6000 RPM
SPINDLE TAPER............ CT 40

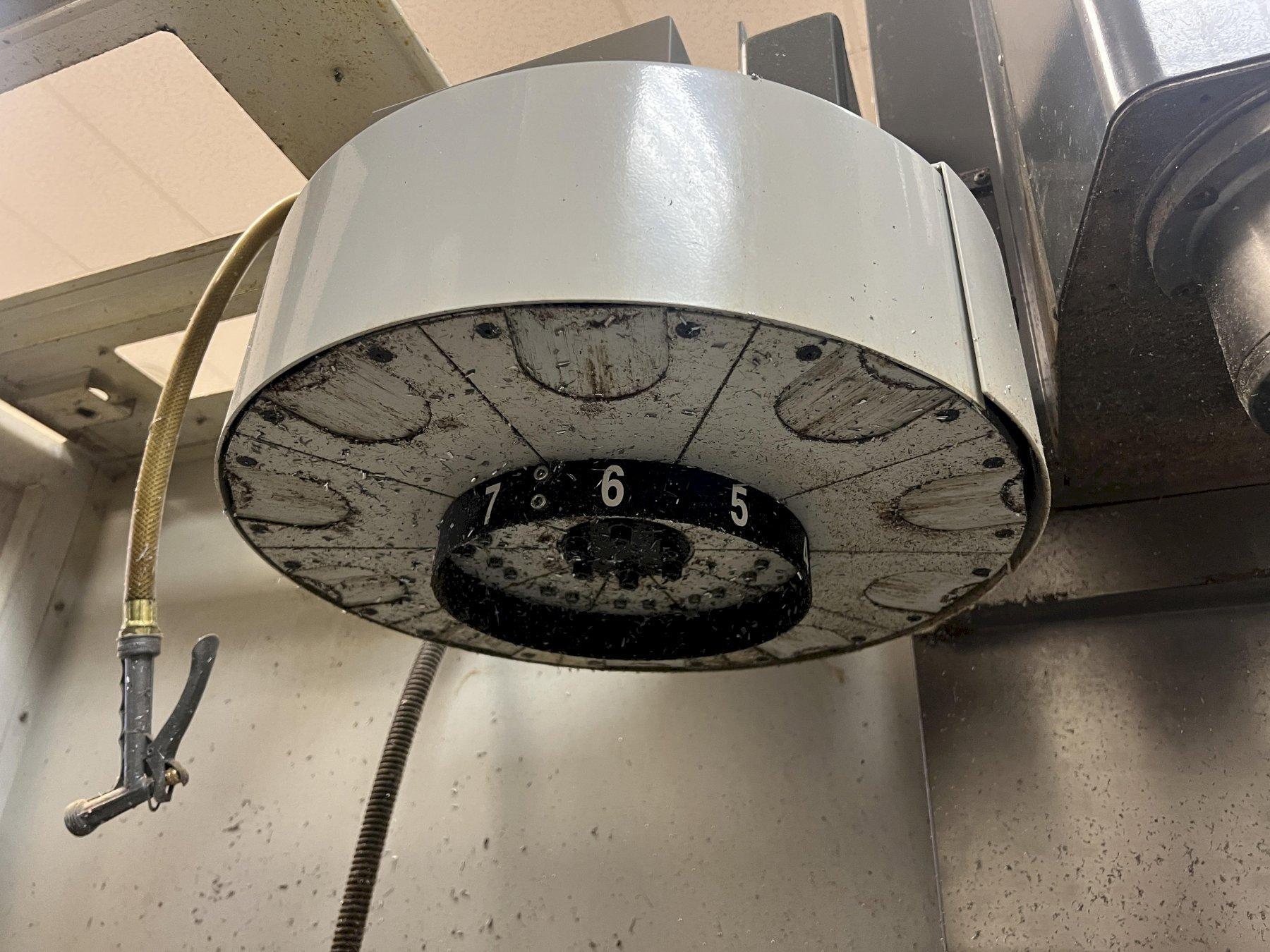

TOOL CHANGER............. 10 ATC
2021 INSP:
SERVO TIME............... 55303
MOTION TIME.............. 3507
SPINDLE TIME............. 3493
TOOL CHANGES............. 22017
SOFTWARE VERSION......... M18.13B
DC BUSS DISPLAY.......... 290
RUN / POWER ON TIME...... 14057
FLOPPY VERSION........... 14.011
MOCON 1 FIRMWARE......... 17.12
EQUIPPED WITH:

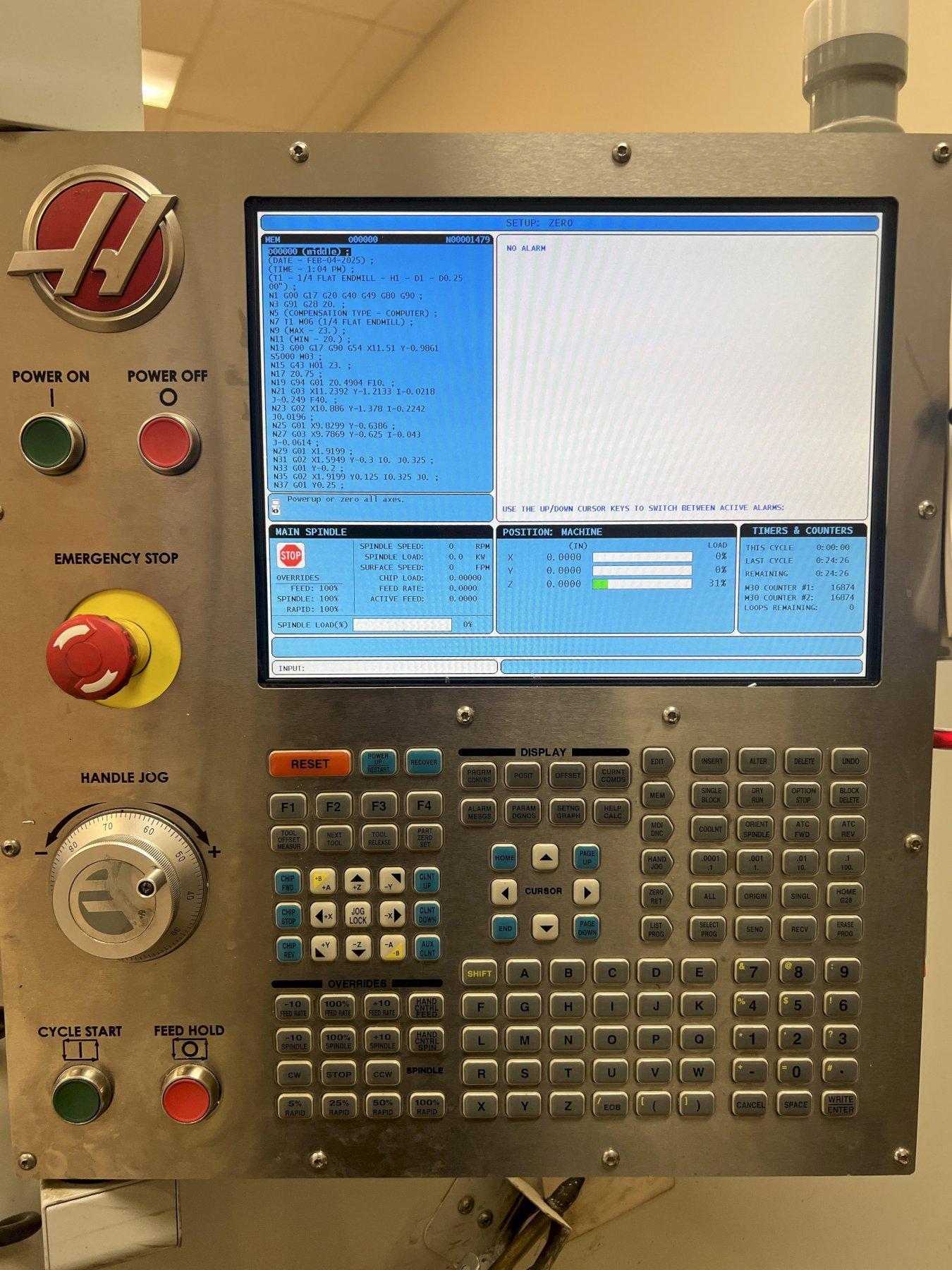

VISUAL PROGRAMMING SYSTEM
1 GB PROGRAM MEMORY
MEMORY LOCK KEYSWITCH
15" COLOR LCD MONITOR
USB PORT
ETHERNET INTERFACE
POWER-FAILURE DETECTION MODULE
SPECIFICATIONS SUBJECT TO VERIFICATION
