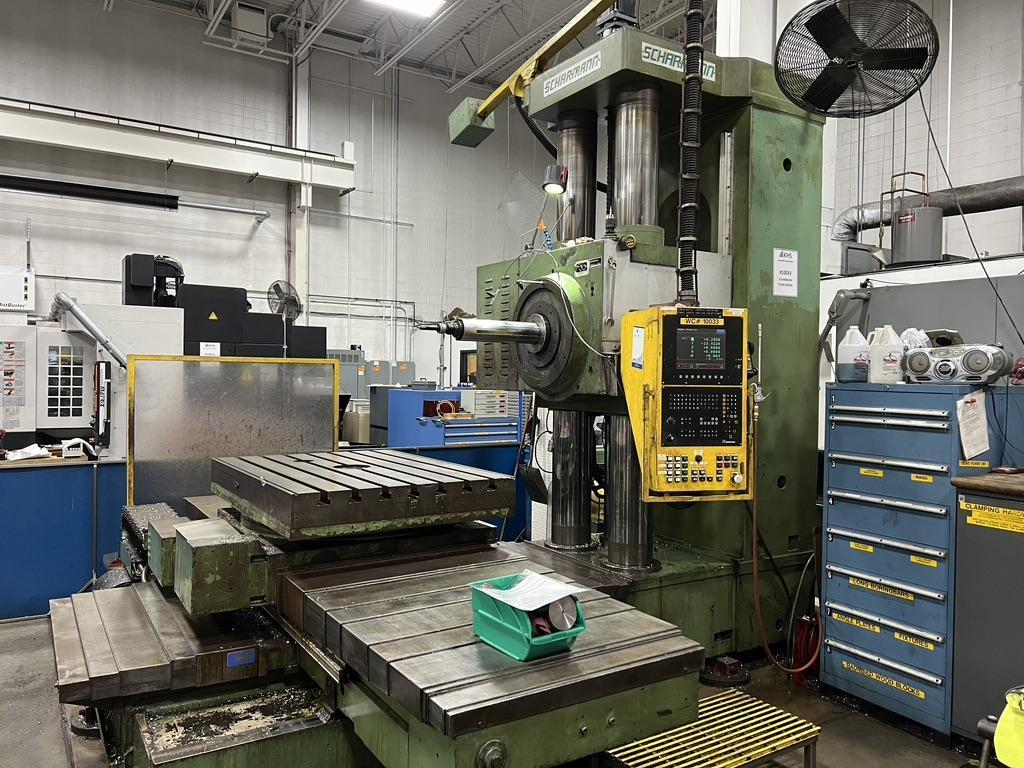

GENERAL SPECIFICATIONS:
MANUFACTURER........................ SCHARMANN

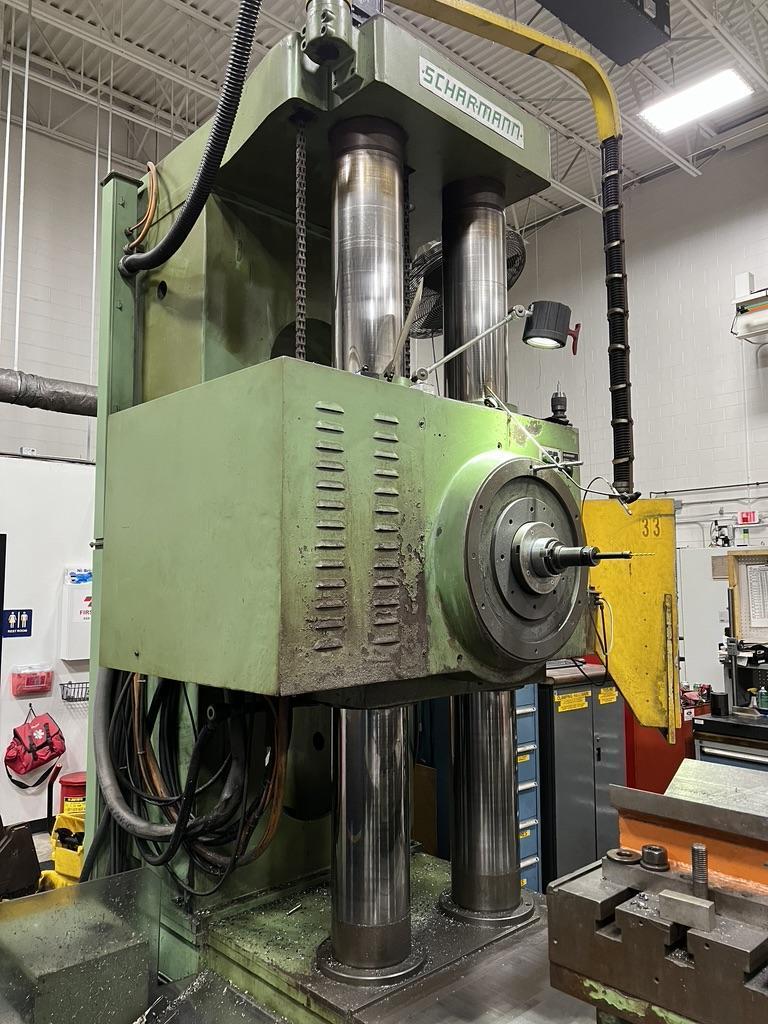

MODEL............................... FB 100
NEW (APPROX.)....................... 1975
RETROFITTED......................... 1996
SERIAL.............................. 75144257

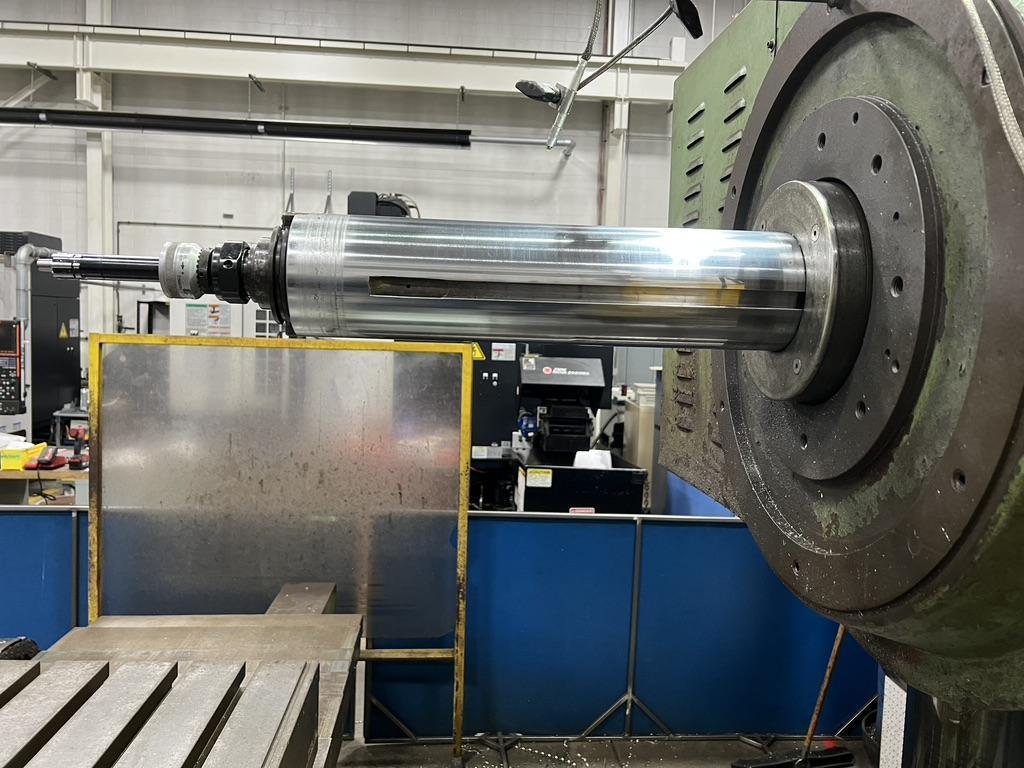

SPINDLE DIAMETER.................... 4.7"
TAPER IN SPINDLE.................... #50 CAT

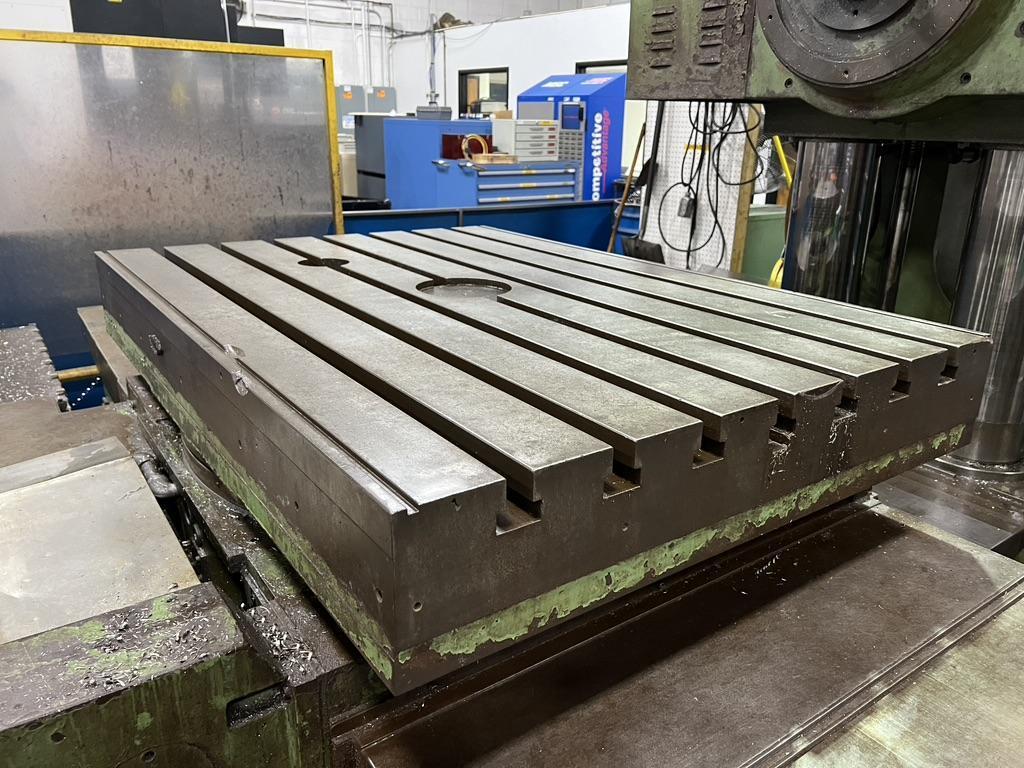

TABLE SIZE.......................... 39" X 55"
Y TRAVEL (VERTICAL HEAD)............ 55"
X TRAVEL (TABLE CROSS).............. 79"
Z TRAVEL (TABLE IN OUT)............. 48"
W TRAVEL (SPINDLE).................. 24"
SPINDLE SPEEDS (2 GEAR RANGES)...... 50-500 RPM
500-2000 RPM
MAIN MOTOR.......................... 30 H.P.

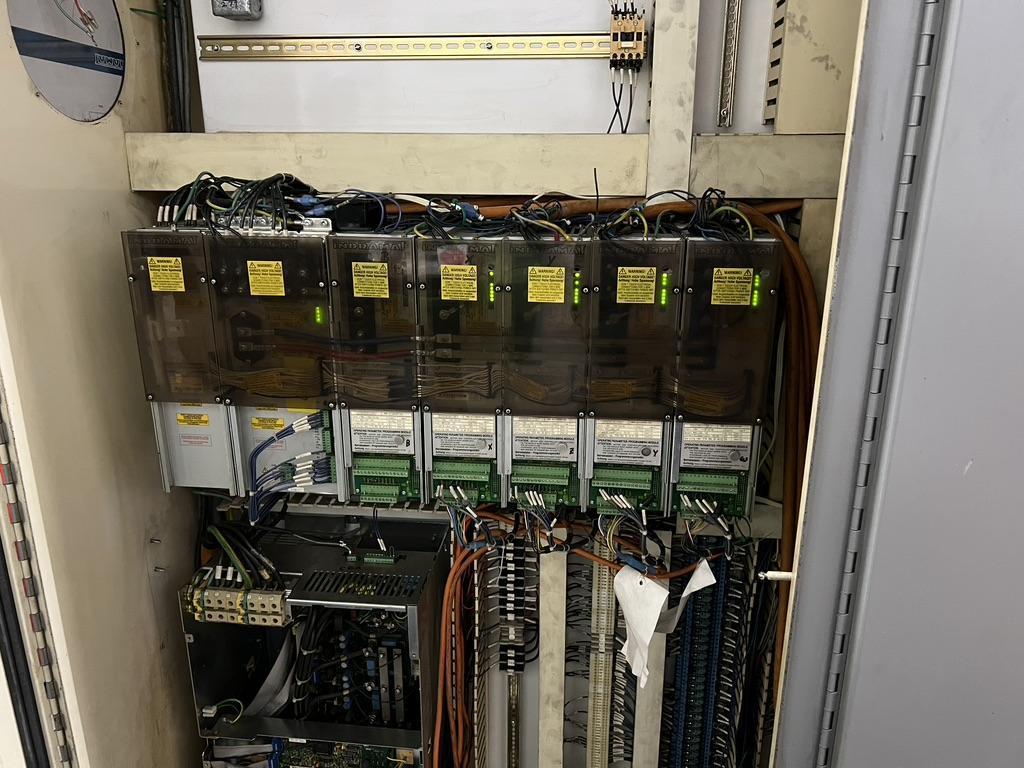

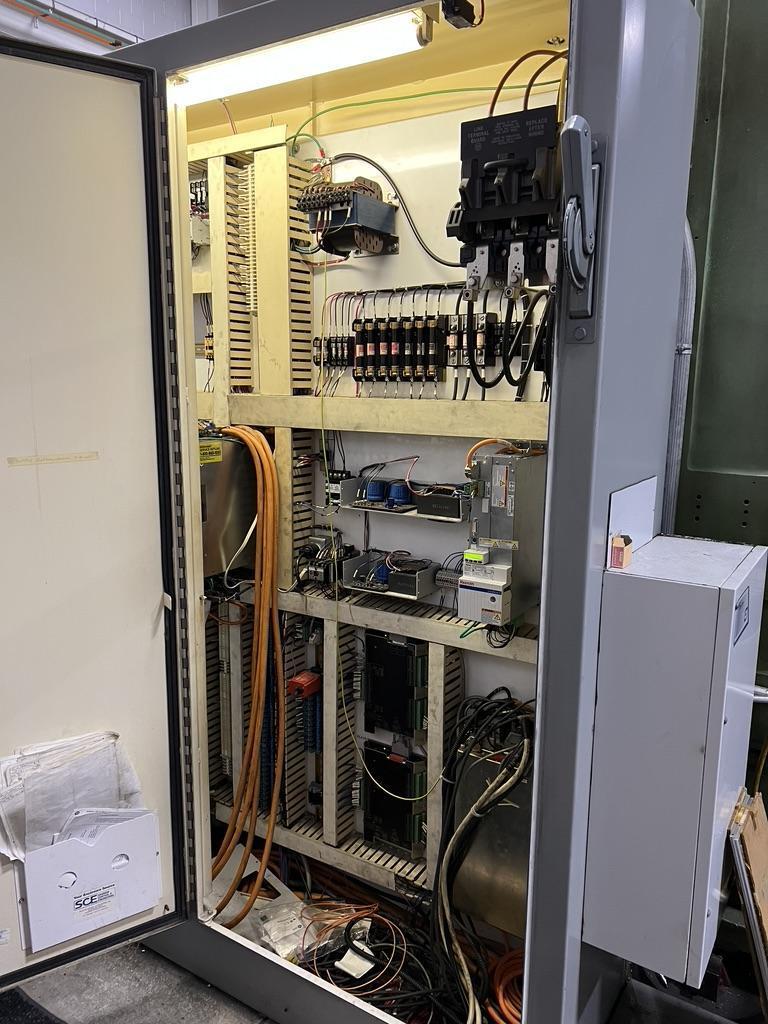

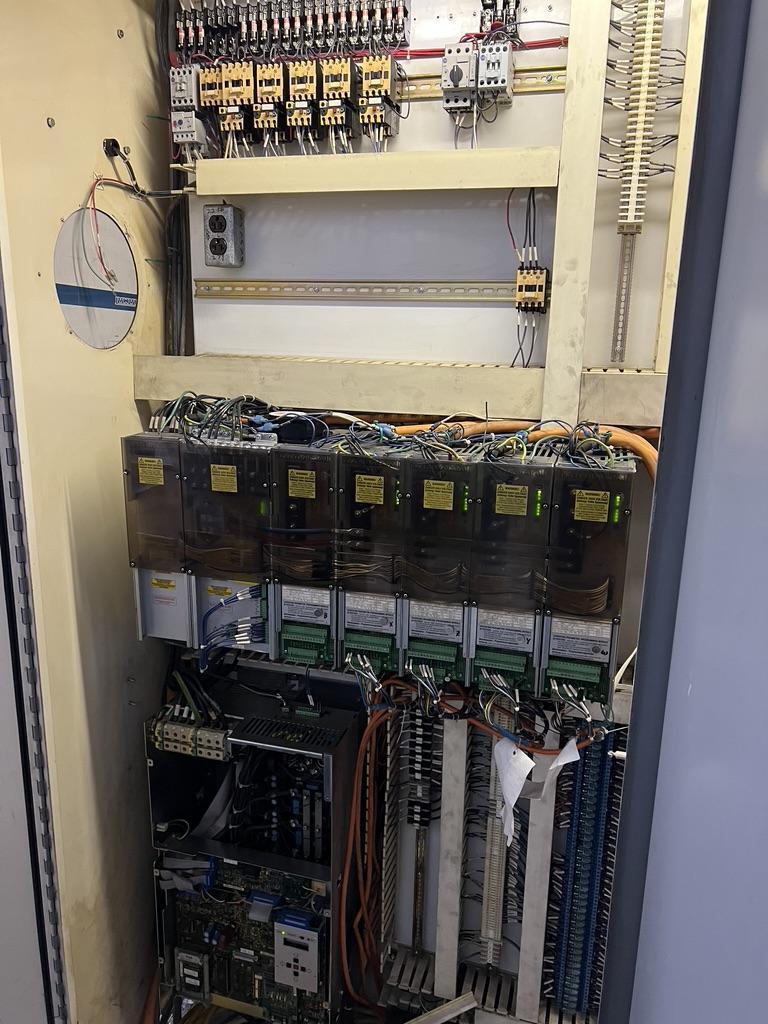

ELECTRICS........................... 480V / 3PH
MACHINE WEIGHT (APPR.).............. 48,000 LBS
EQUIPPED WITH:

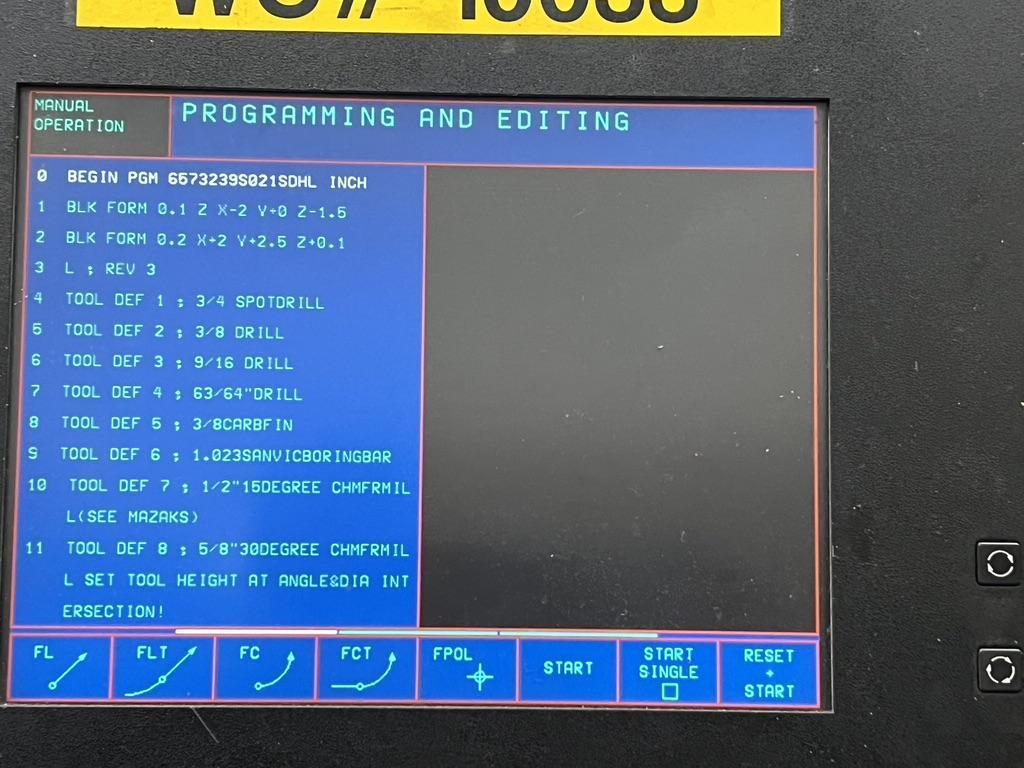

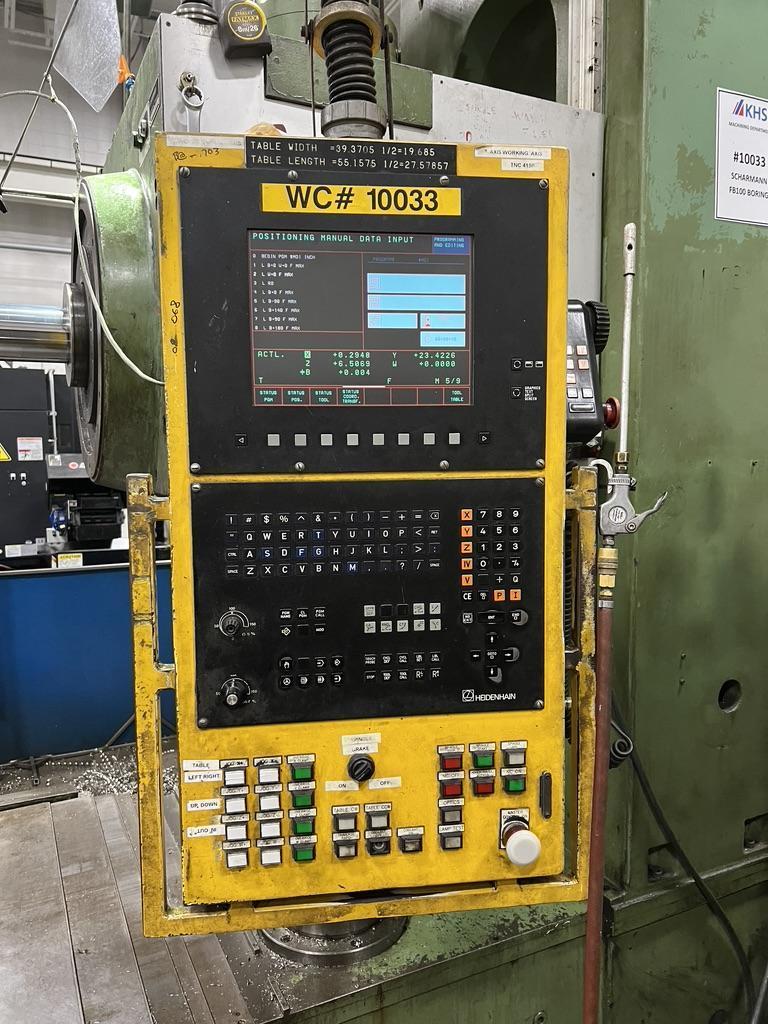

HEIDENHAIN TNC 415B CNC CONTROL WITH GRAPHICS
HEIDENHAIN SCALES X,Y,Z AND BALL SCREWS
4TH AXIS PROGRAMMABLE TABLE
POWER DRAW BAR

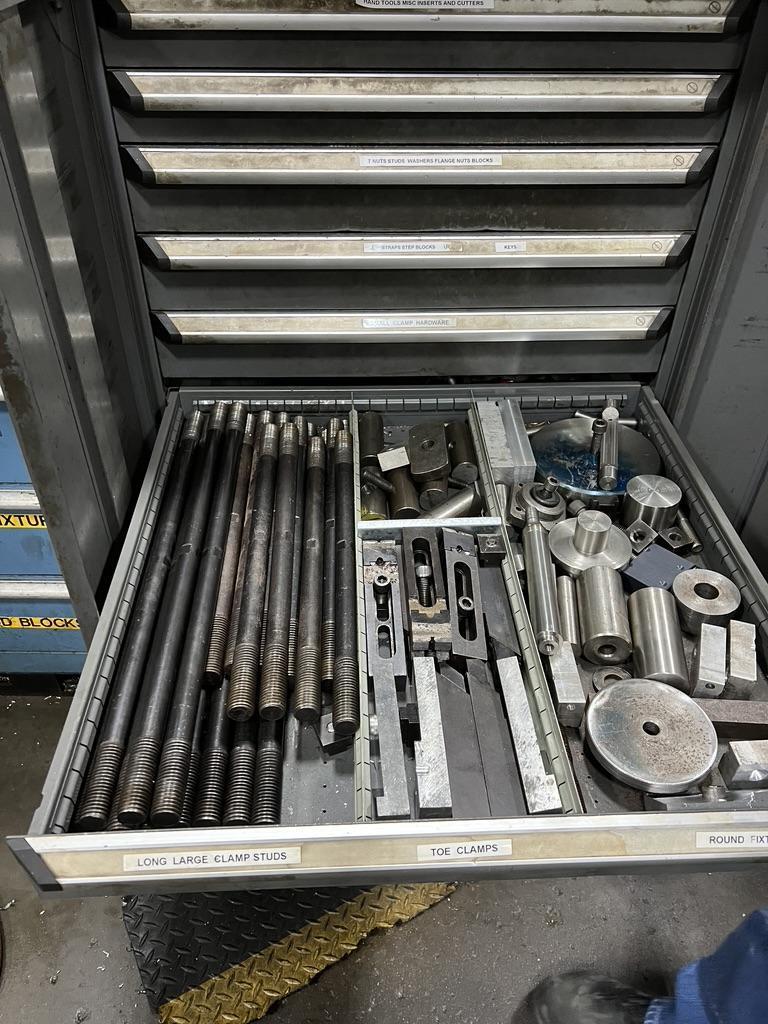

TELESCOPING WAY COVERS
COOLANT
MISC. MANUALS APPROXIMATELY 50 TOOL HOLDERS WITHOUT PERISHABLES
