Specifications
Equipped With
GENERAL SPECIFICATIONS:

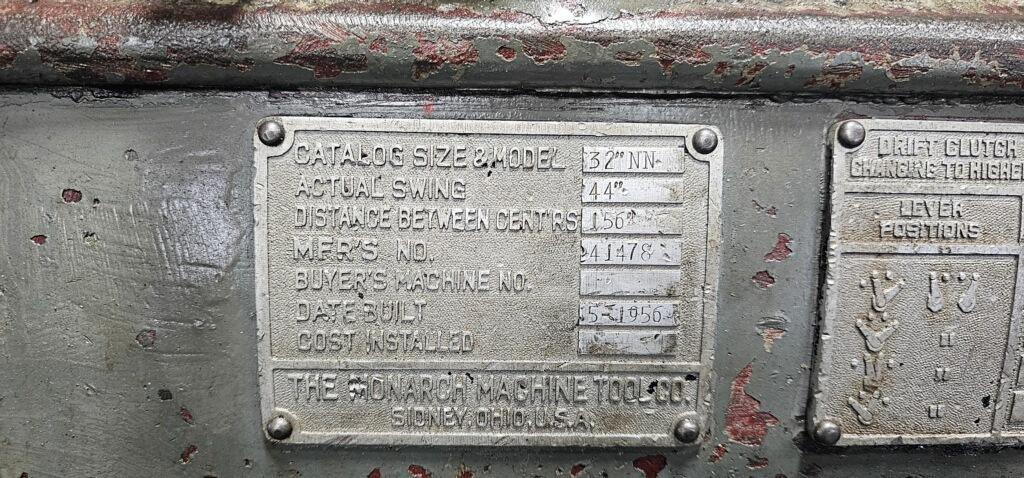

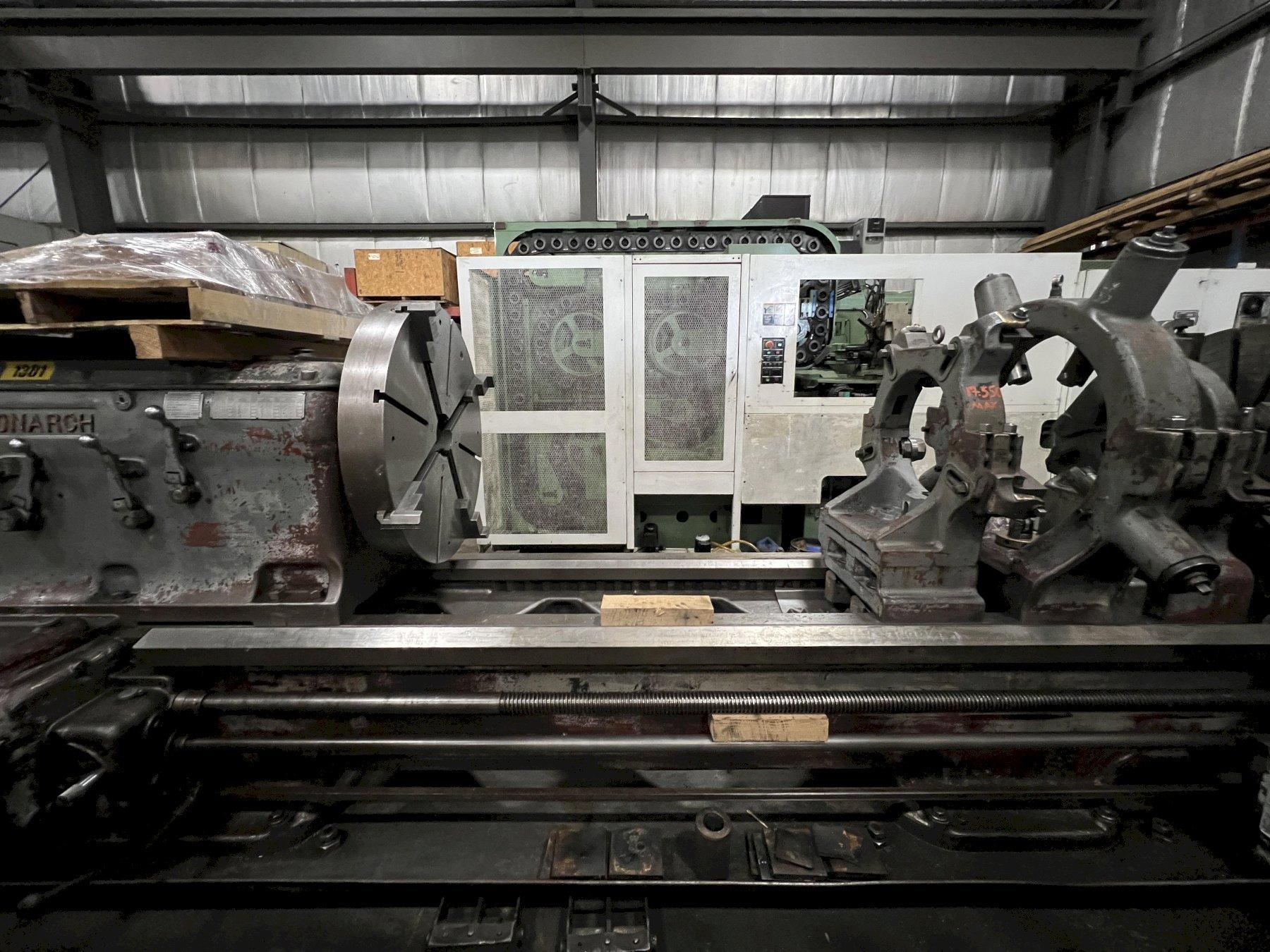

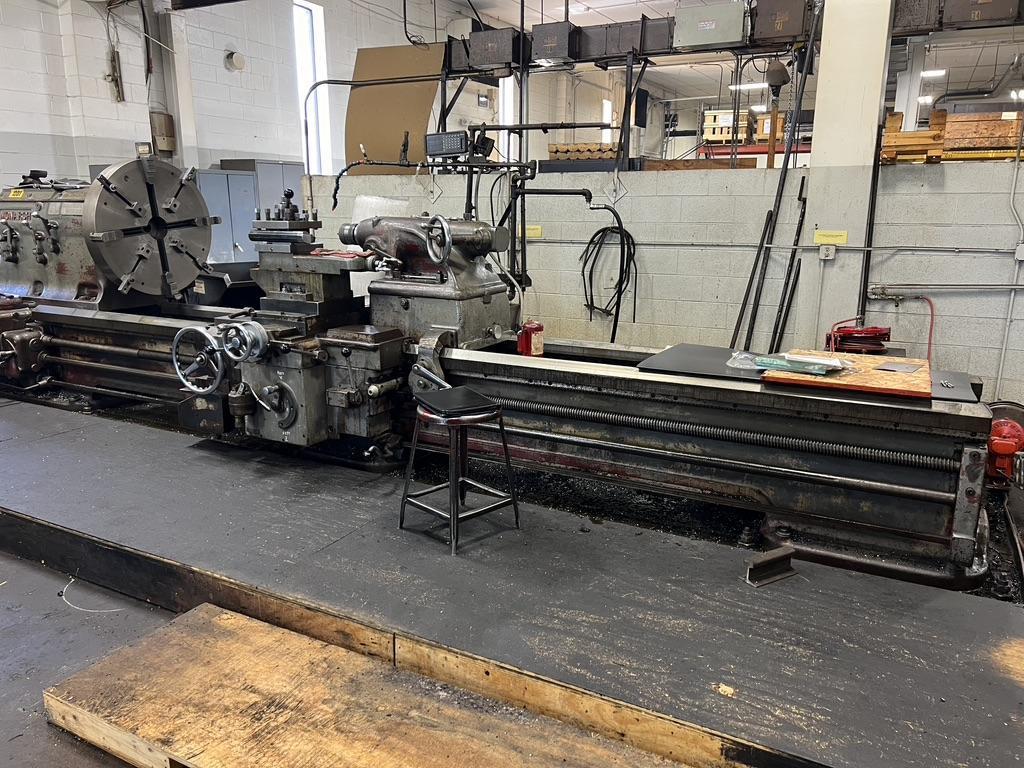

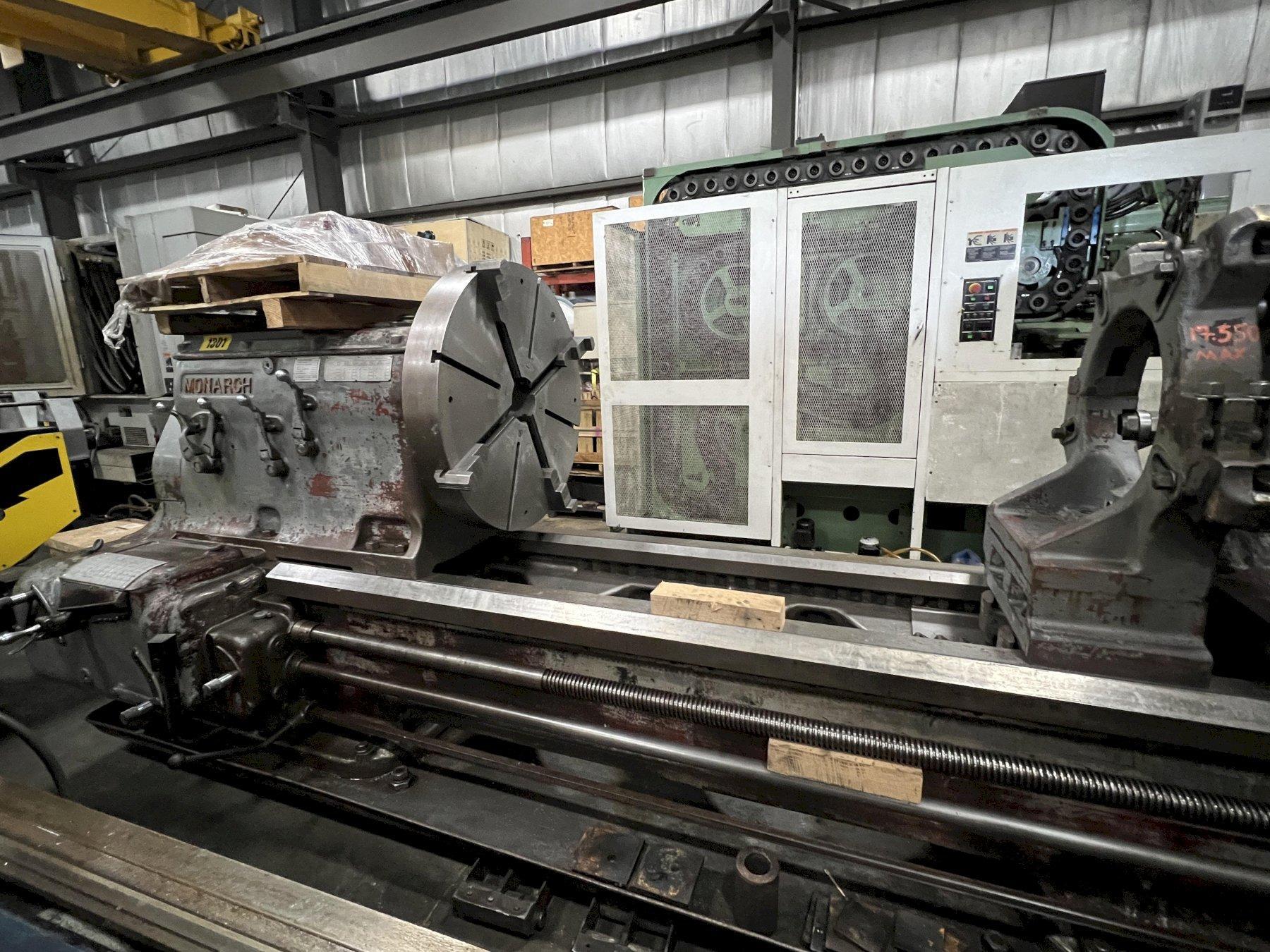

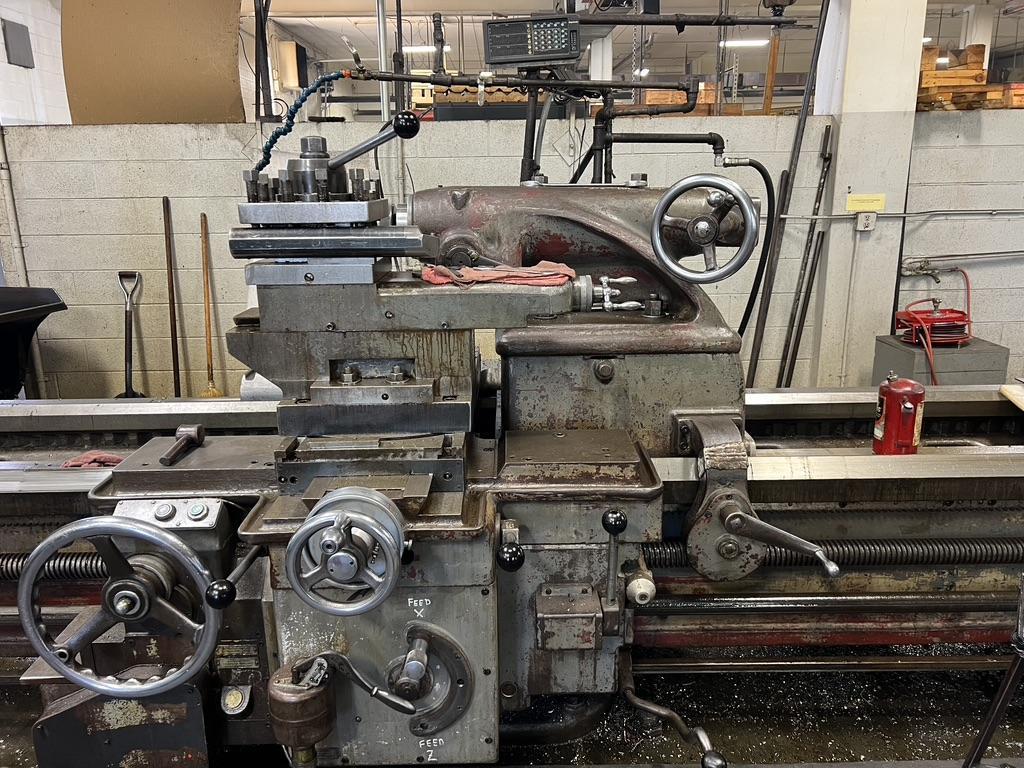

MANUFACTURER................... MONARCH
MODEL.......................... 32"NN
SERIAL #....................... 41478
AGE (YEAR)..................... 1956
SWING.......................... 44"
SWING OVER C.S................. 30"

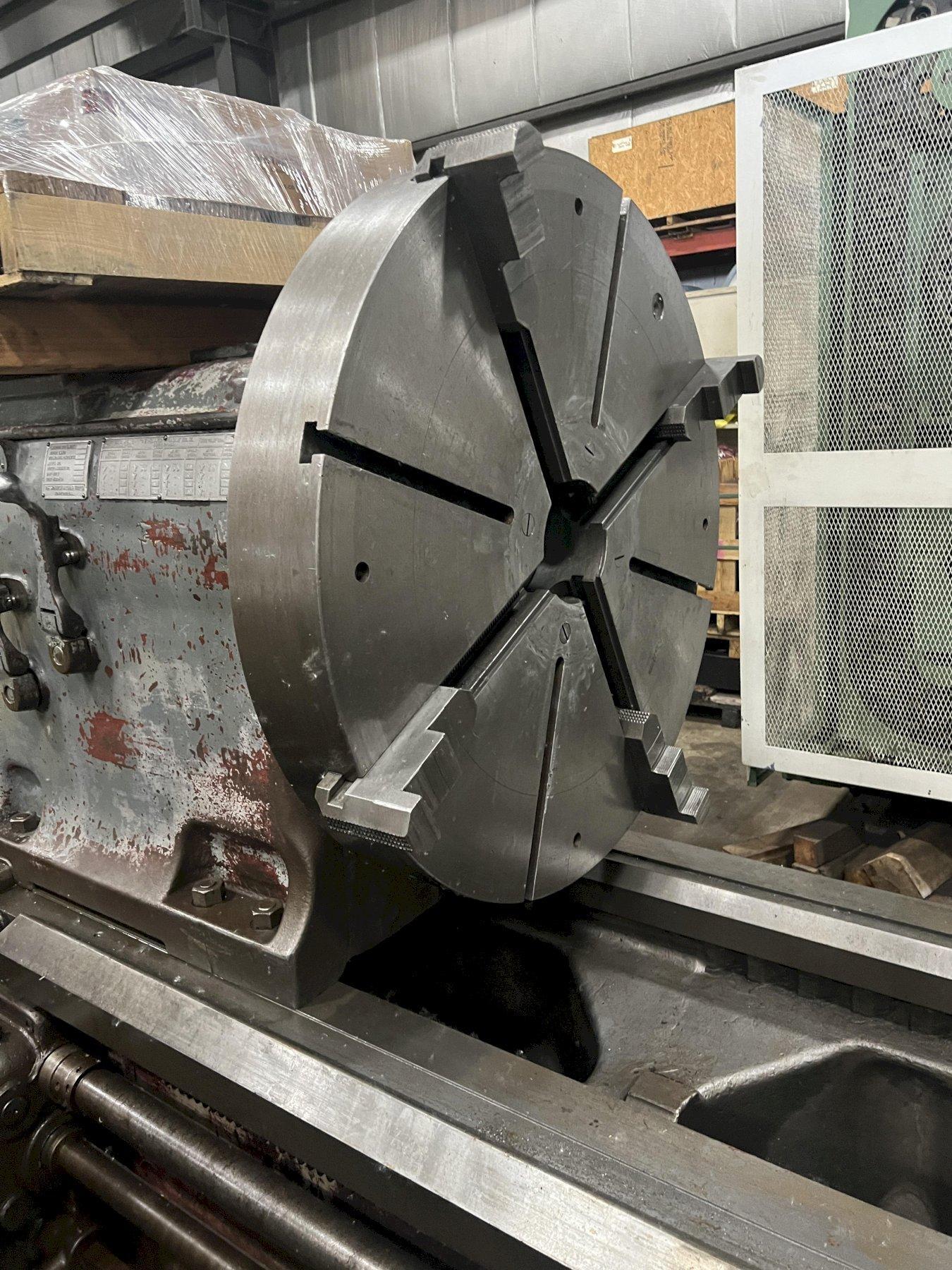

CHUCK SIZE (4 JAW)............. 36"
DISTANCE BETWEEN CENTERS....... 156"
SPINDLE BORE................... 2.25"

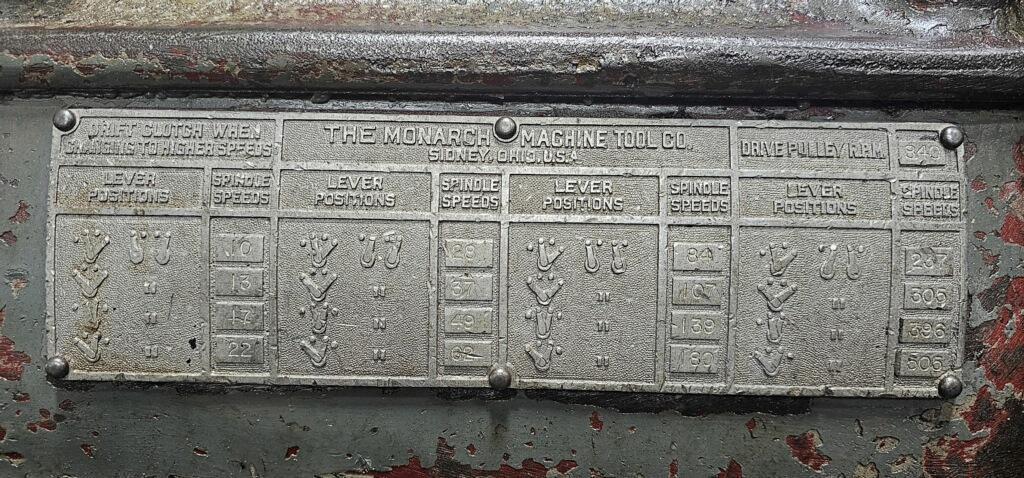

SPINDLE SPEEDS (21)............ 10 - 505 RPM
LONGITUDINAL FEEDS............. .0019 - .1211 IPR
THREADS........................ 1 - 56 TPI
SPINDLE NOSE................... D1-11
OVERALL DIMENSIONS............. 7' WIDE X 23' LONG
WEIGHT (APPROX)................ 30,000 LBS.
ELECTRICS...................... 220 VOLTS / 3 PHASE

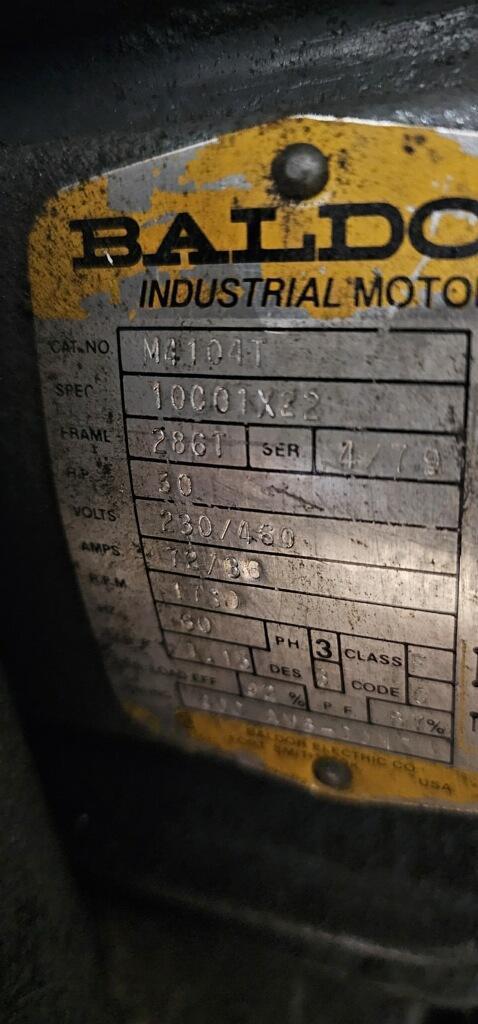

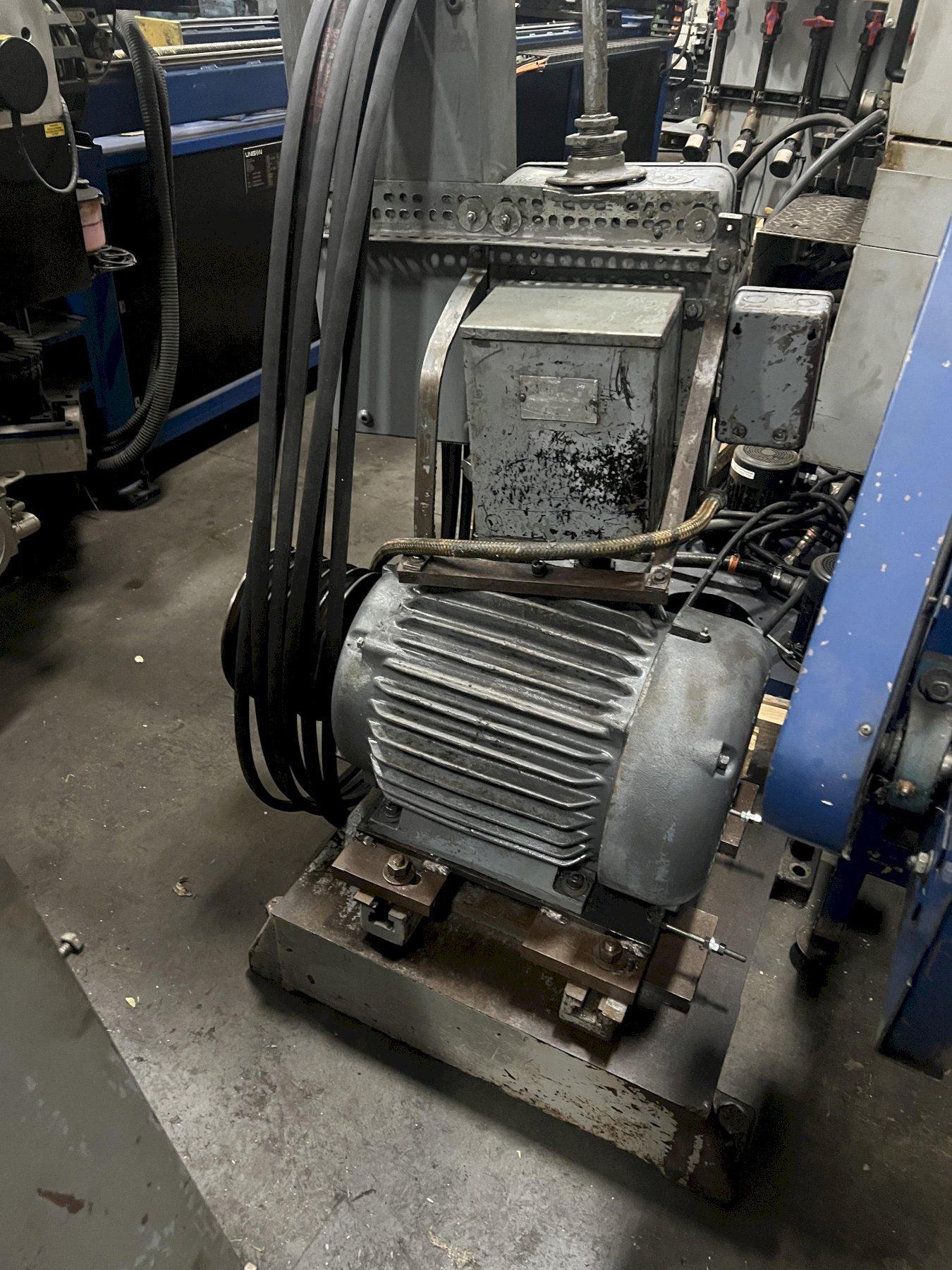

MAIN MOTOR..................... 30 HP 220/440/3/60
EQUIPPED WITH:
MAGNASCALE DIGITAL READOUT
RAPID TRAVERSE

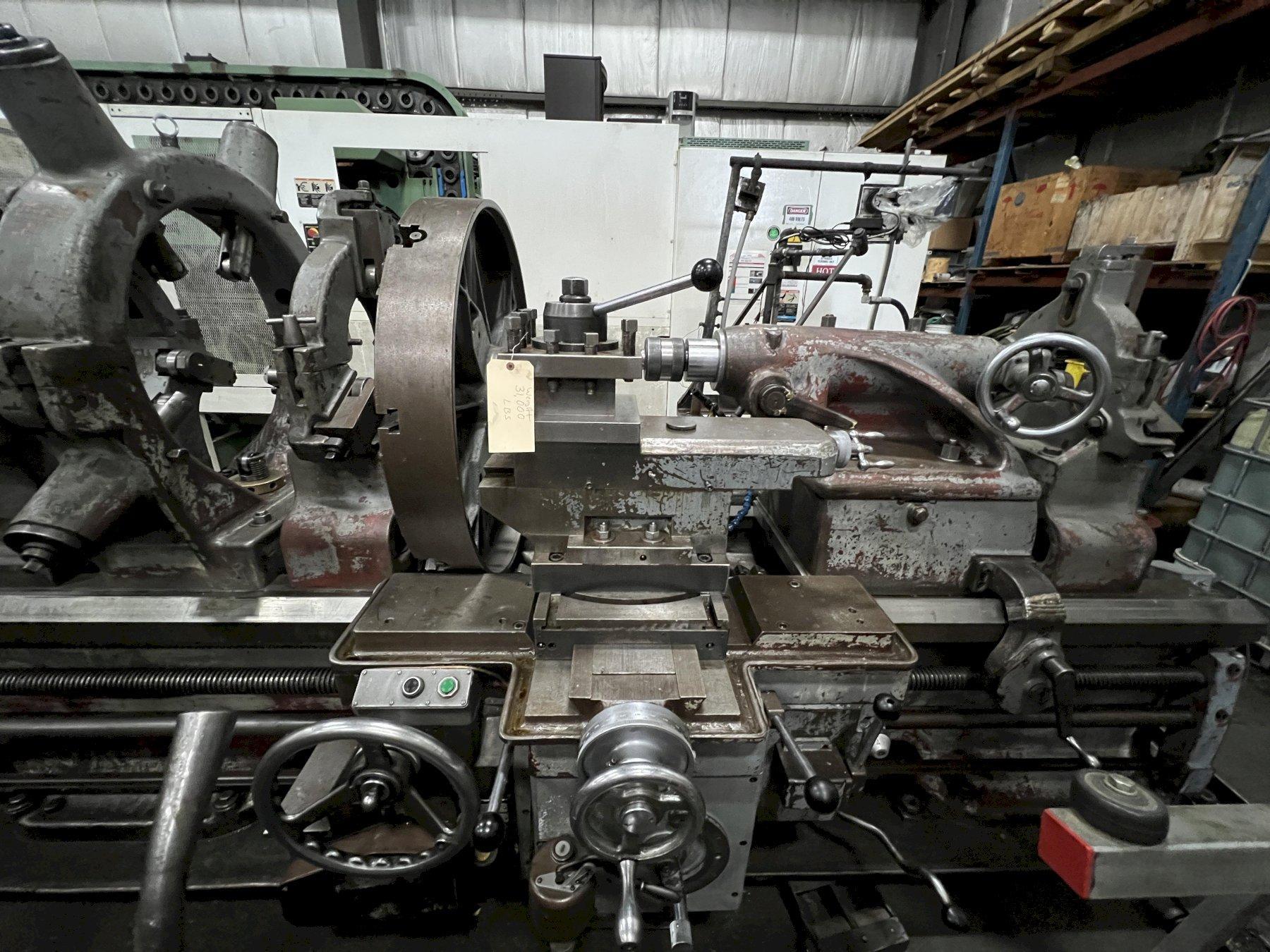

TOOL POST

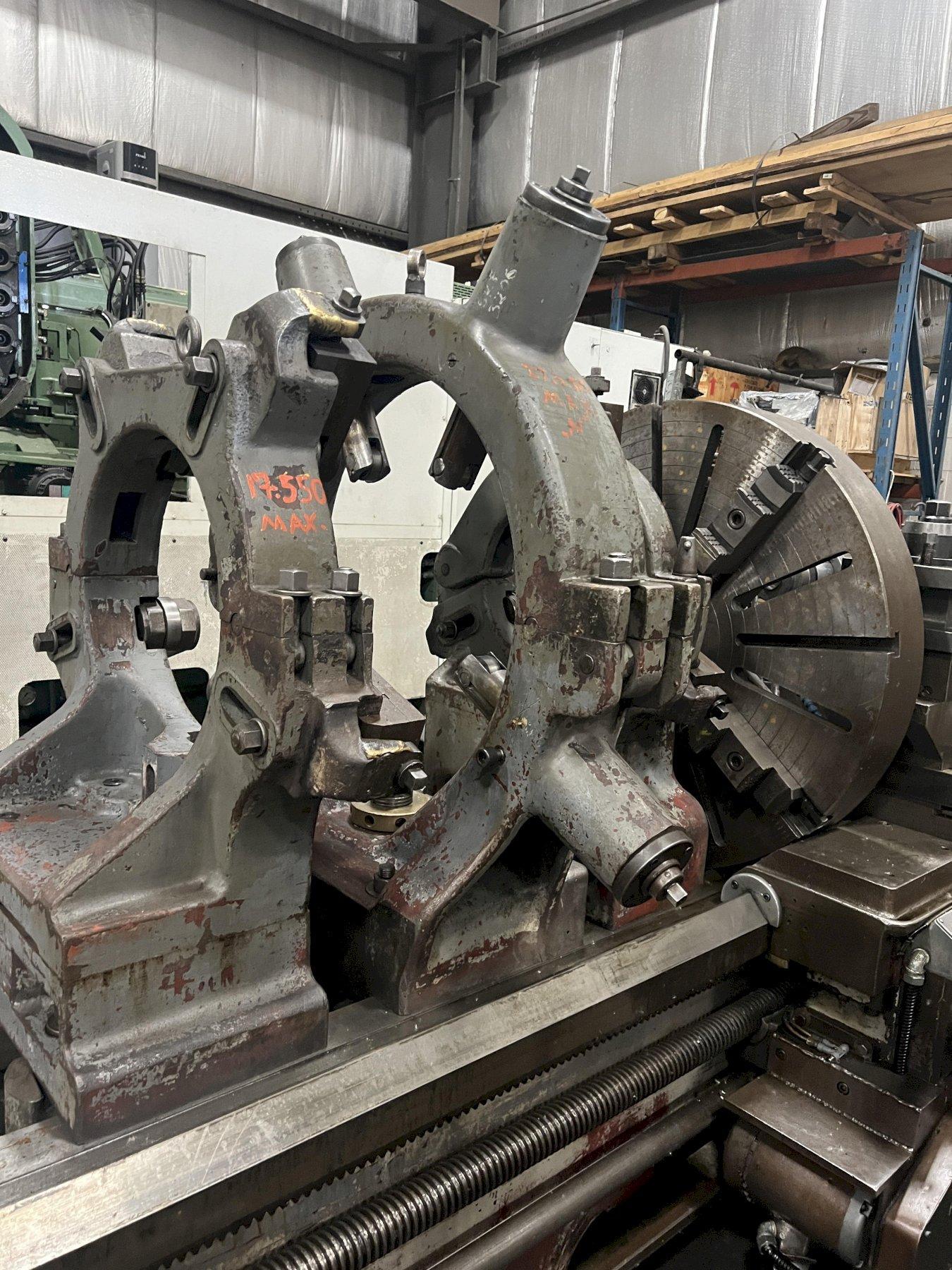

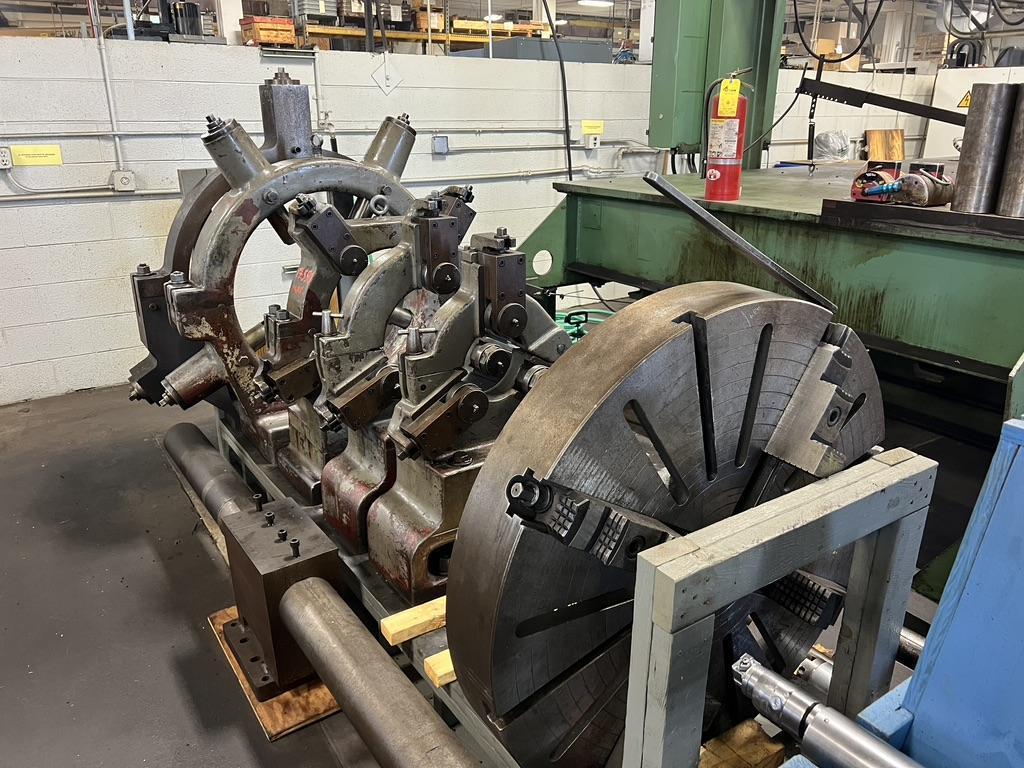

5 ROLLER STEADY RESTS (7", 12", 17.5", 27.25", 33")

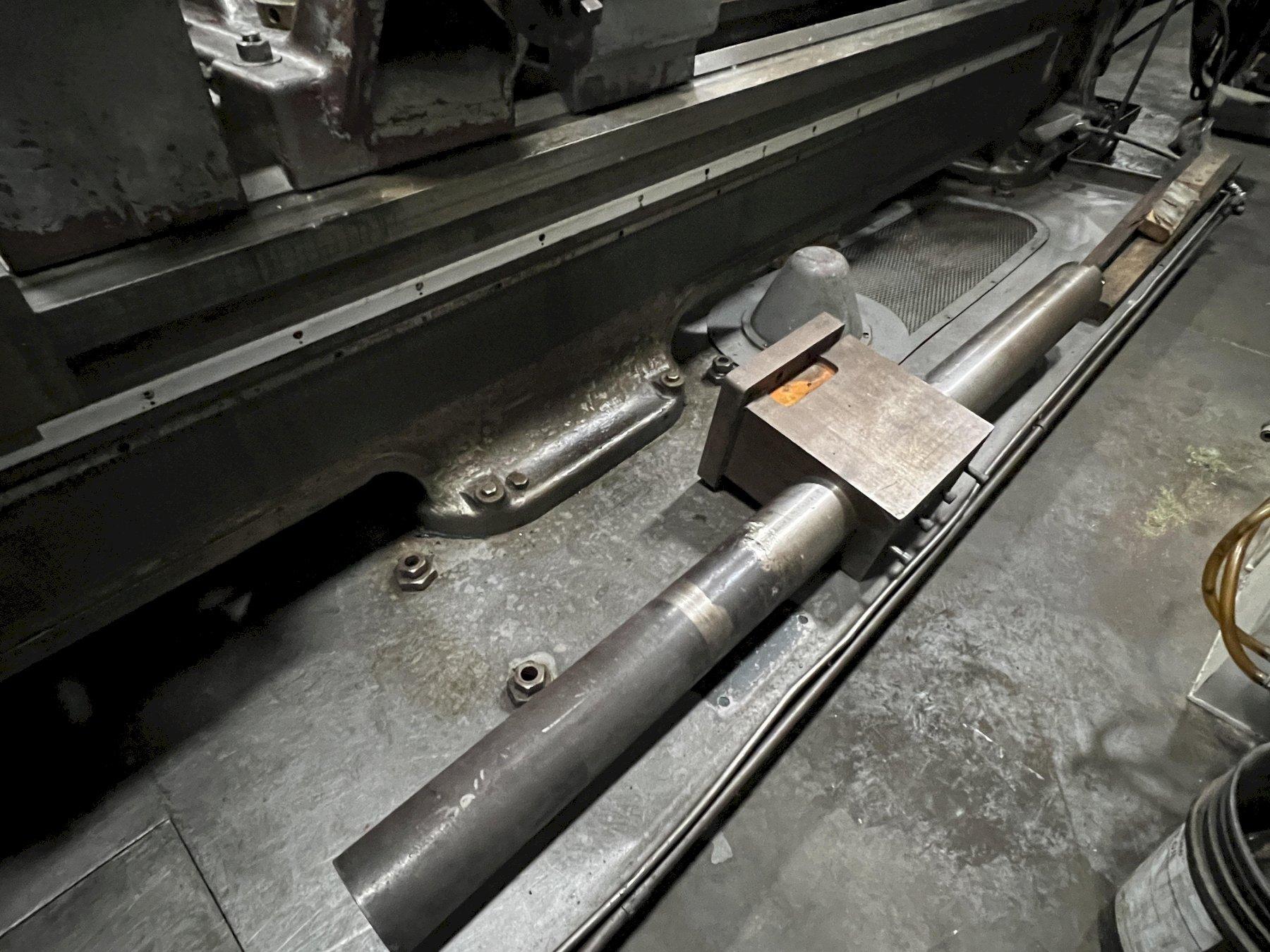

BORING HOLDER WITH BAR
