GENERAL SPECIFICATIONS:

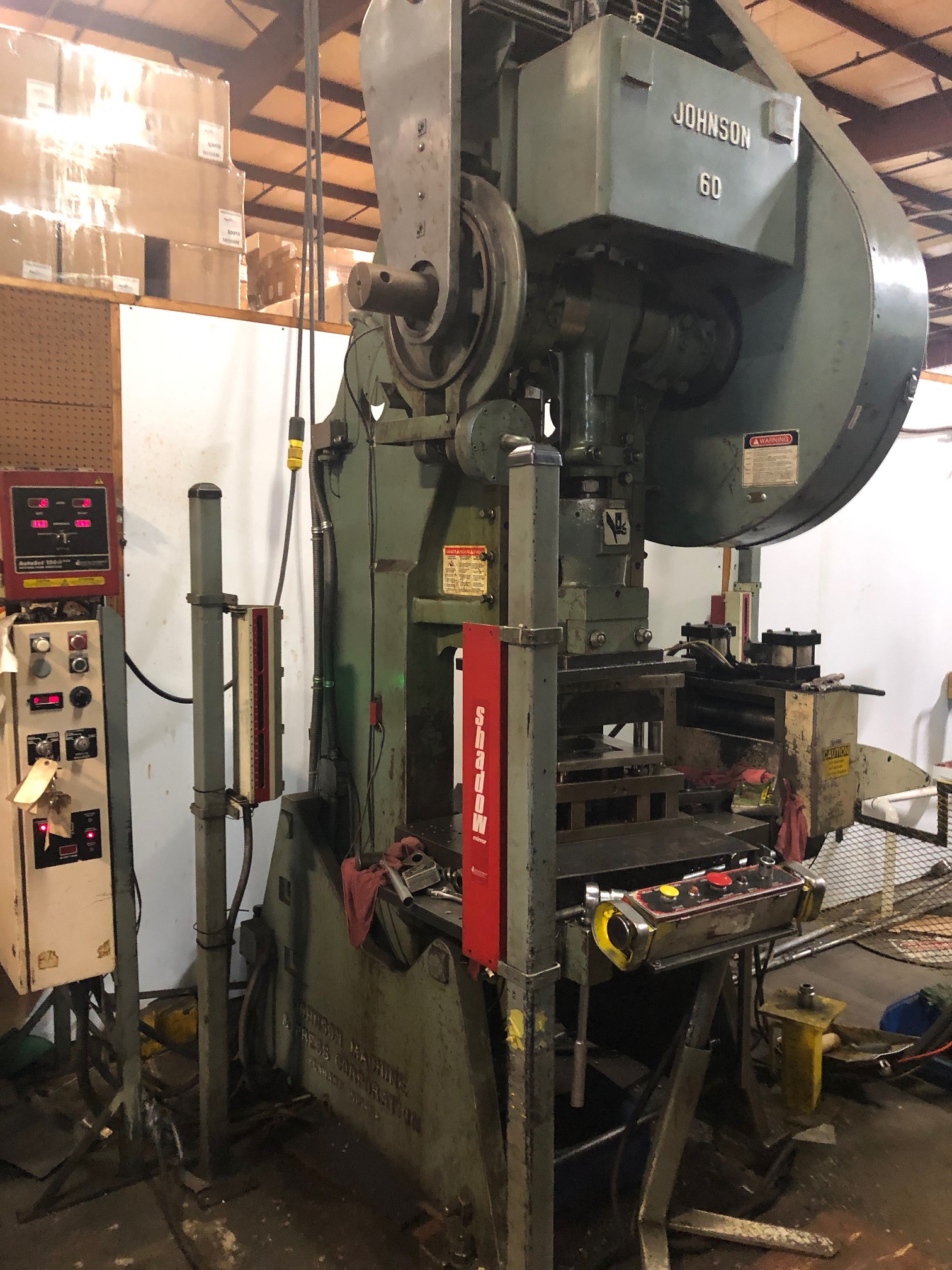

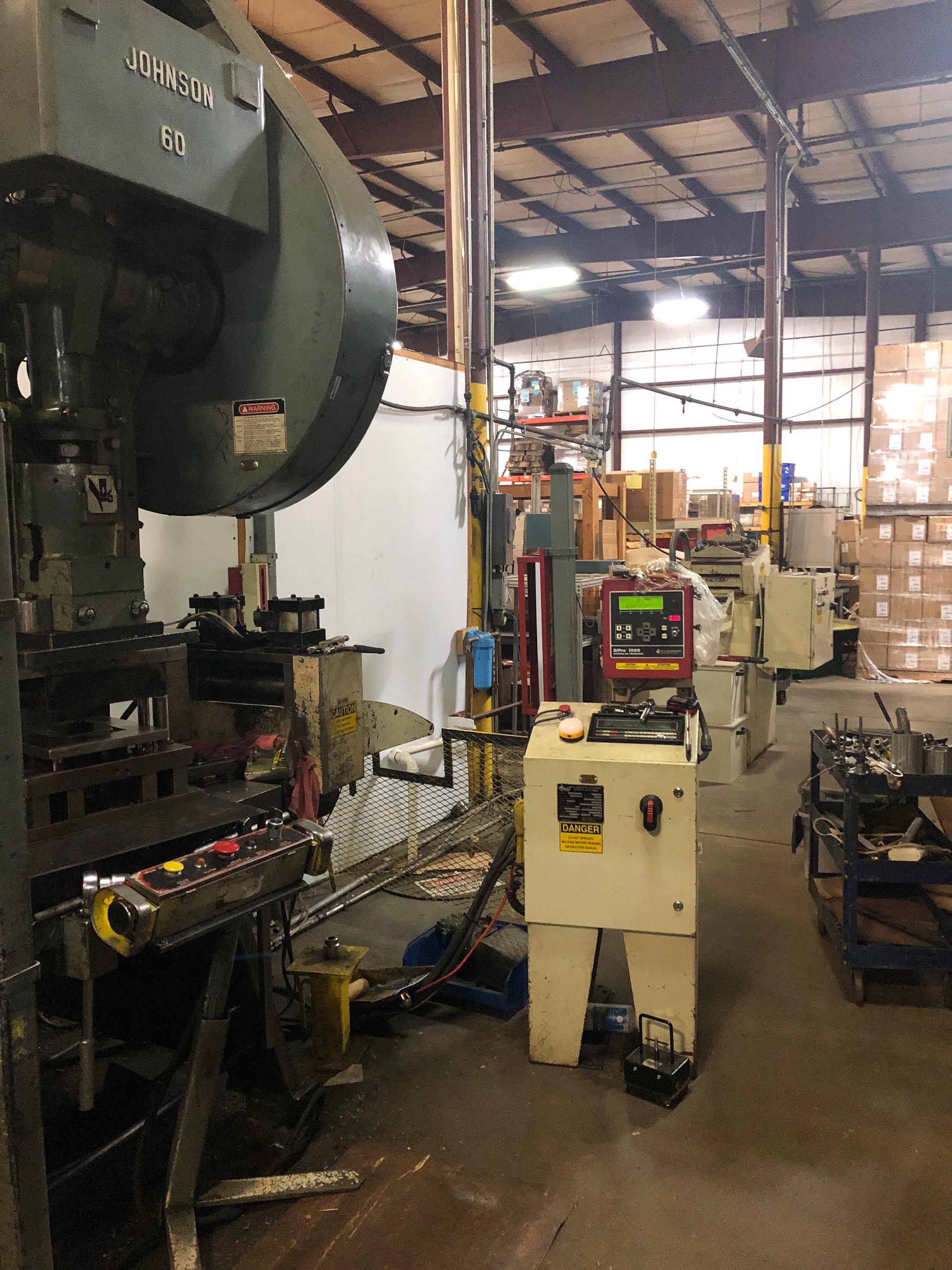

MANUFACTURER...................... JOHNSON (SOUTH BEND)
MODEL............................. 60
TYPE.............................. Flywheel
CAPACITY.......................... 60 TON
BED SIZE.......................... 22" x 32" F/B
RAM AREA.......................... 20" X 14.25" F/B
SPEED............................. 20 TO 90 SPM
STROKE............................ 4"
SLIDE ADJUSTMENT.................. 3.5"
SHUT HEIGHT TO BED................ 17"
SHUT HEIGHT TO 3" BOLSTER......... 14"
EQUIPPED WITH:
NEW CLUTCH 2018

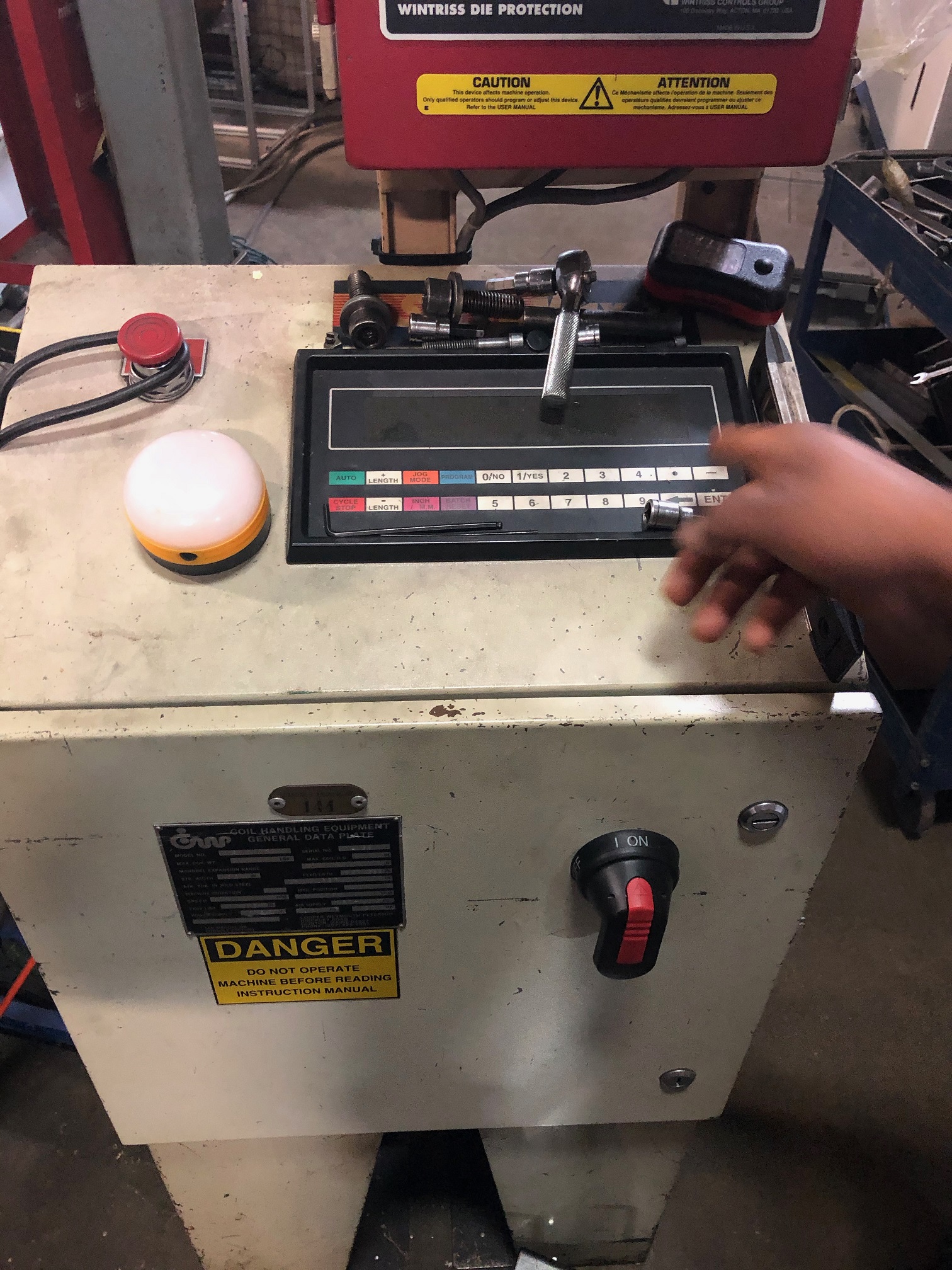

WINTRESS DIPRO 1500 DIE PROTECTION
WINTRESS AUTOSET 1500 LOAD ANALYZER
DUAL PALMS
SHADOW LIGHT CURTAINS
COOPER WEYMOUTH SERVO FEED LINE RIGHT TO LEFT DIRECTION
MODEL S1X12 SERVOMAX II FEEDER
12" STOCK WIDTH
999.99 FEED LENGTH
.156 STOCK THICKNESS

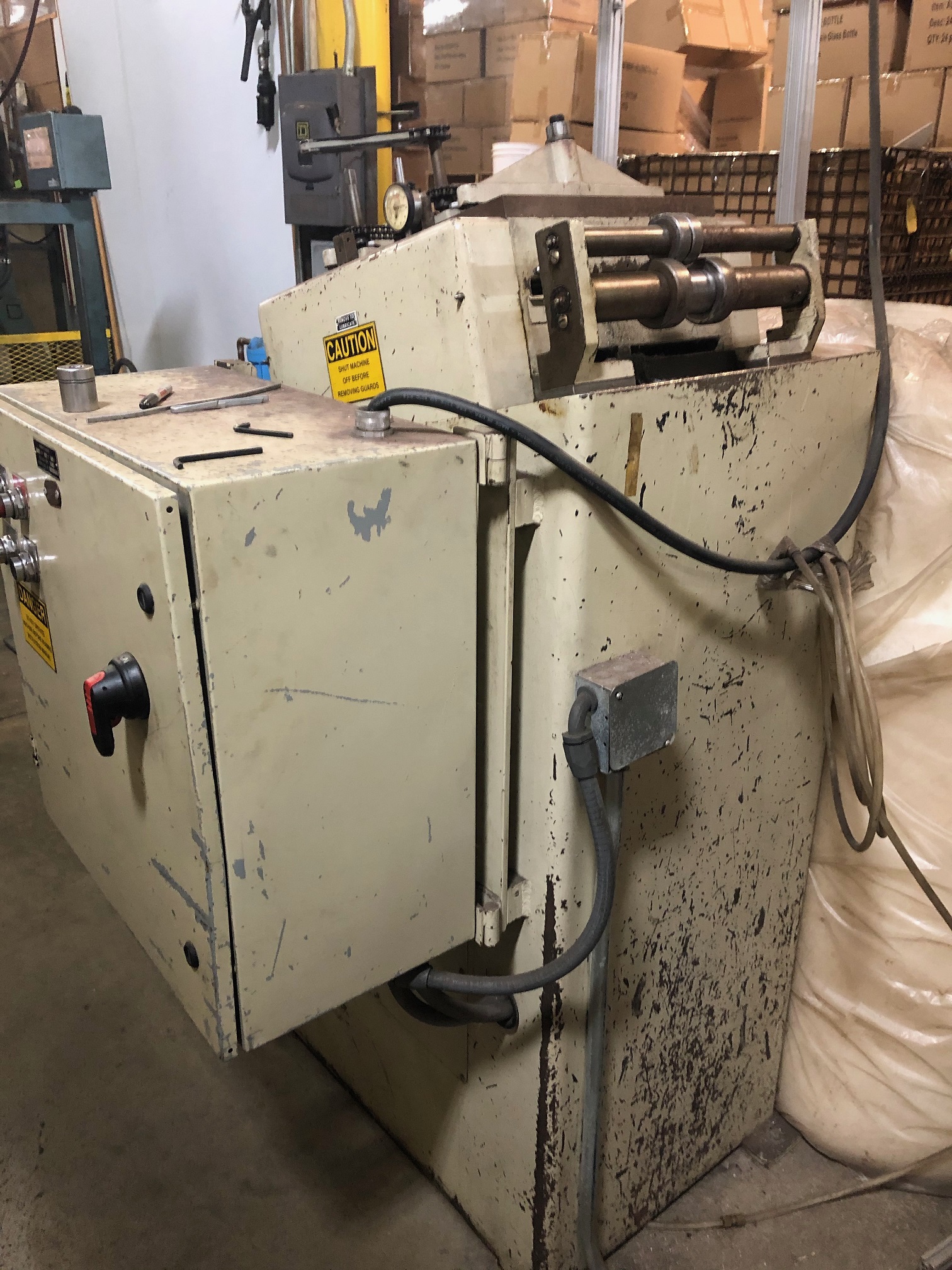

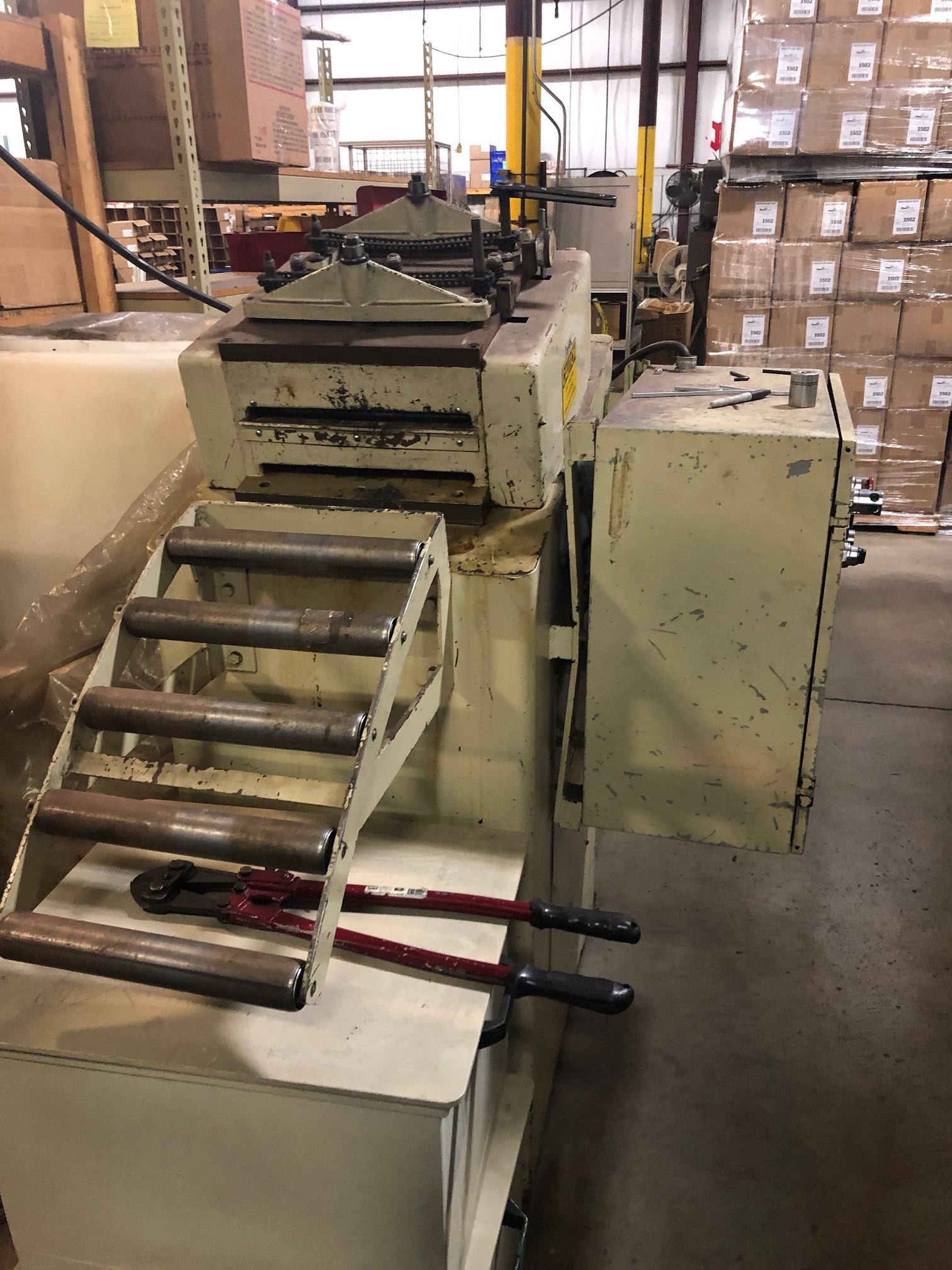

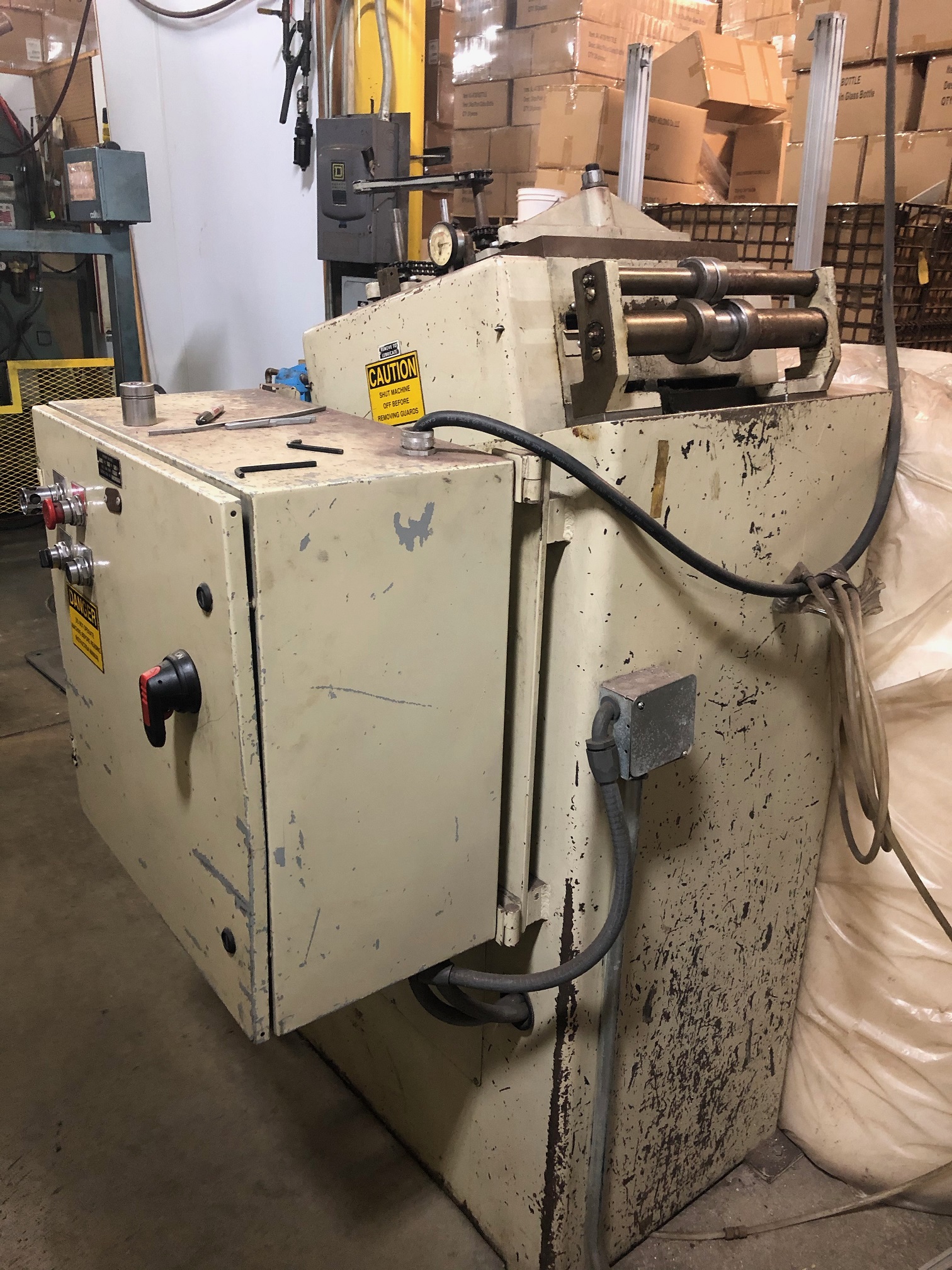

MODEL SE12B STRAIGHTENER
12" STOCK WIDTH
.125 STOCK THICKNESS
100 IPM SPEED

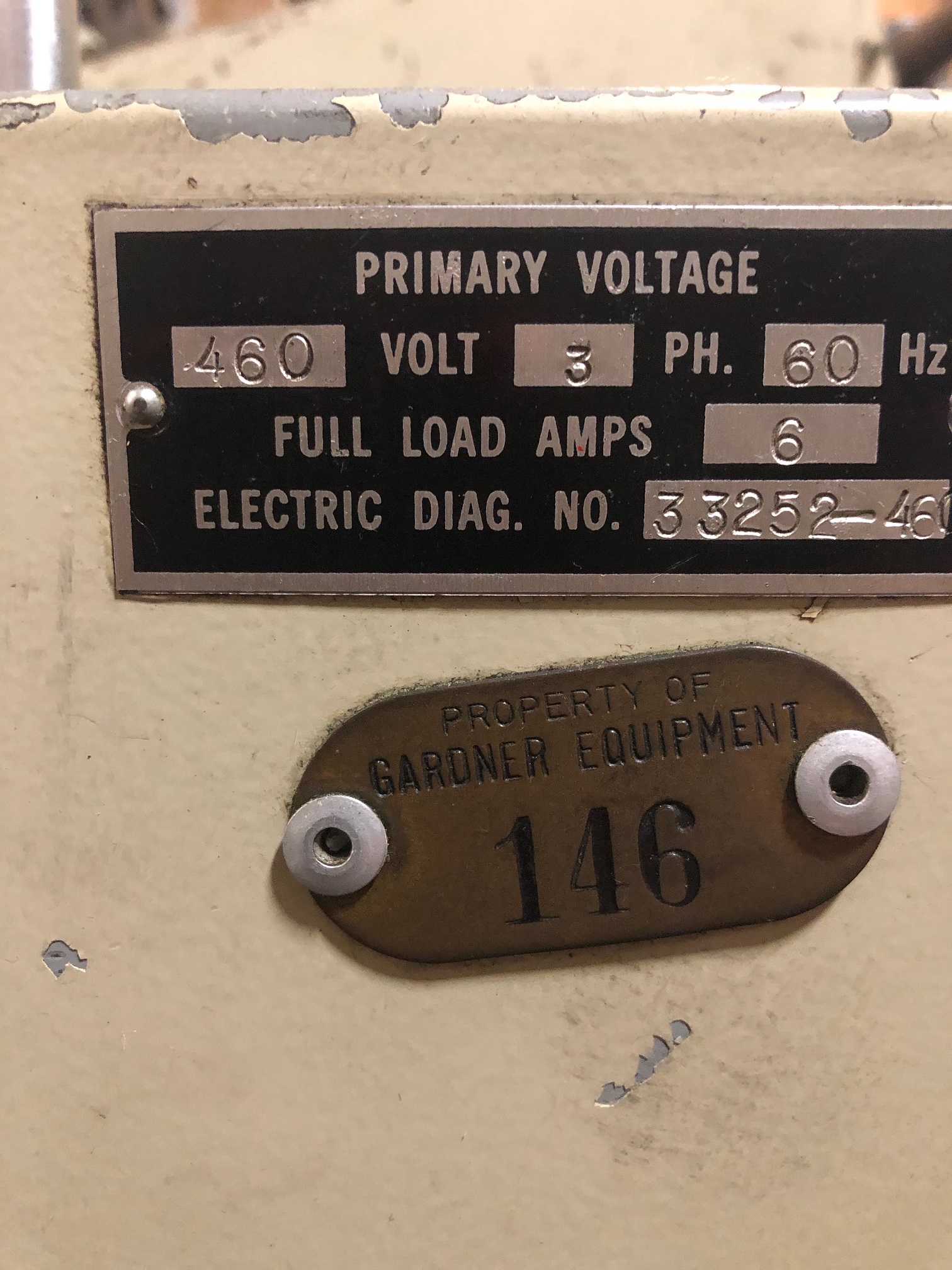

WIRED 460 VOLTS

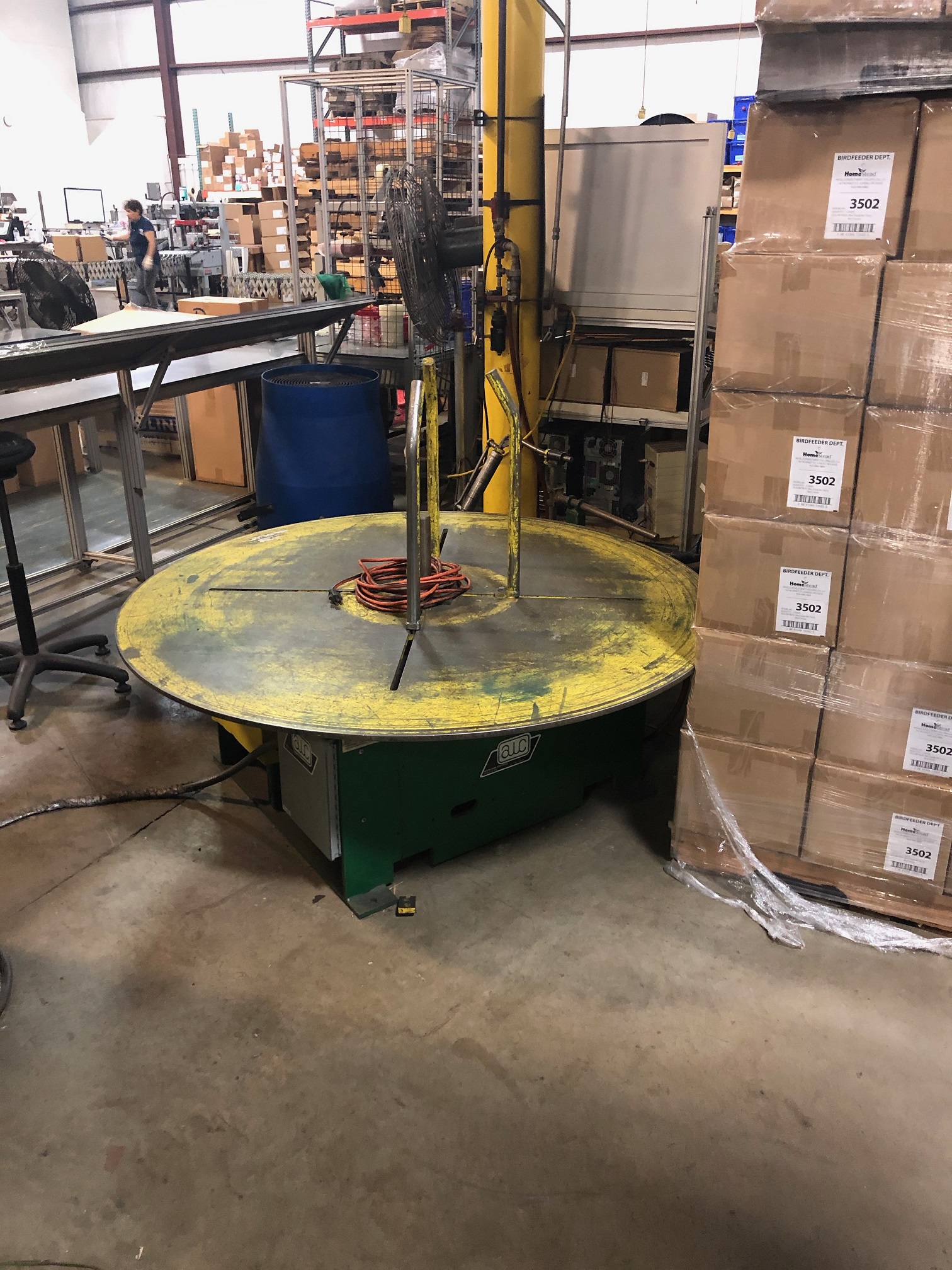

3000 LB. X 8.5" WIDE HORIZONTAL PANCAKE COIL REEL
PRESS COMPLETELY REBUILT BY FEDERAL PRESS IN 1991
