Specifications
Equipped With

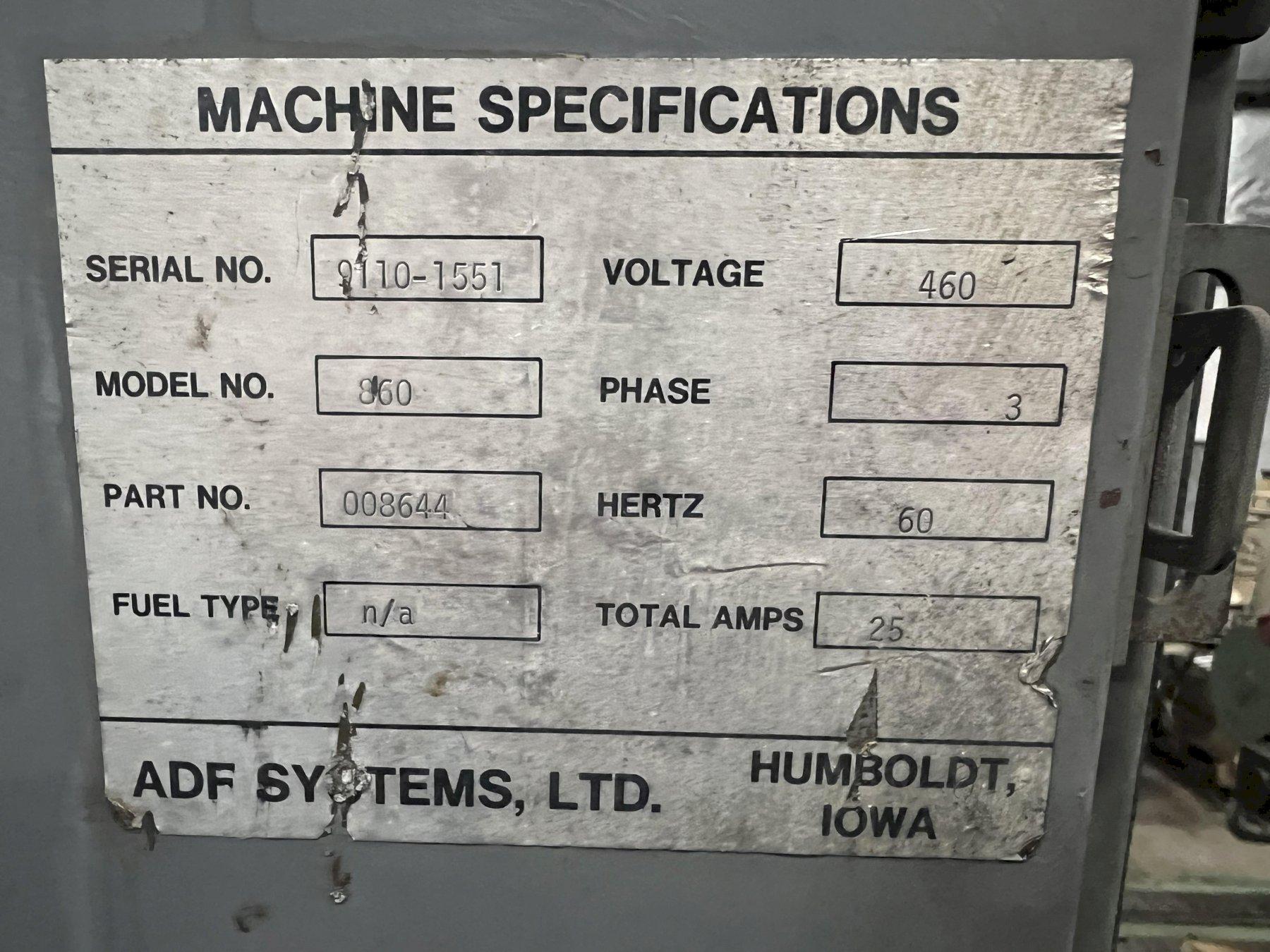

GENERAL SPECIFICATIONS:
MANUFACTURER...................... ADF SYSTEMS
MODEL............................. 860
SERIAL NUMBER..................... 9110-1551
TURNTABLE DIAMETER................ 42"
TURNTABLE ROTATION................ 6 RPM
LOAD CAPACITY..................... 500 LBS.
NUMBER OF NOZZLES................. 18
WORKING HEIGHT.................... 36"
TANK CAPACITY..................... 56 GALLONS
MAX. TEMPERATURE.................. 160 DEGREES F
PUMP CAPACITY..................... 18 GPM @ 750 PSI
SPRAY CHAMBER AND TANK............ 304 STAINLESS STEEL
MAIN FILTER SYSTEM................ 100 MICRON BLANKET
SECONDARY FILTER SYSTEM........... 2 CARTRIDGES
APPROXIMATE WEIGHT................ 1200 LBS
EQUIPPED WITH:

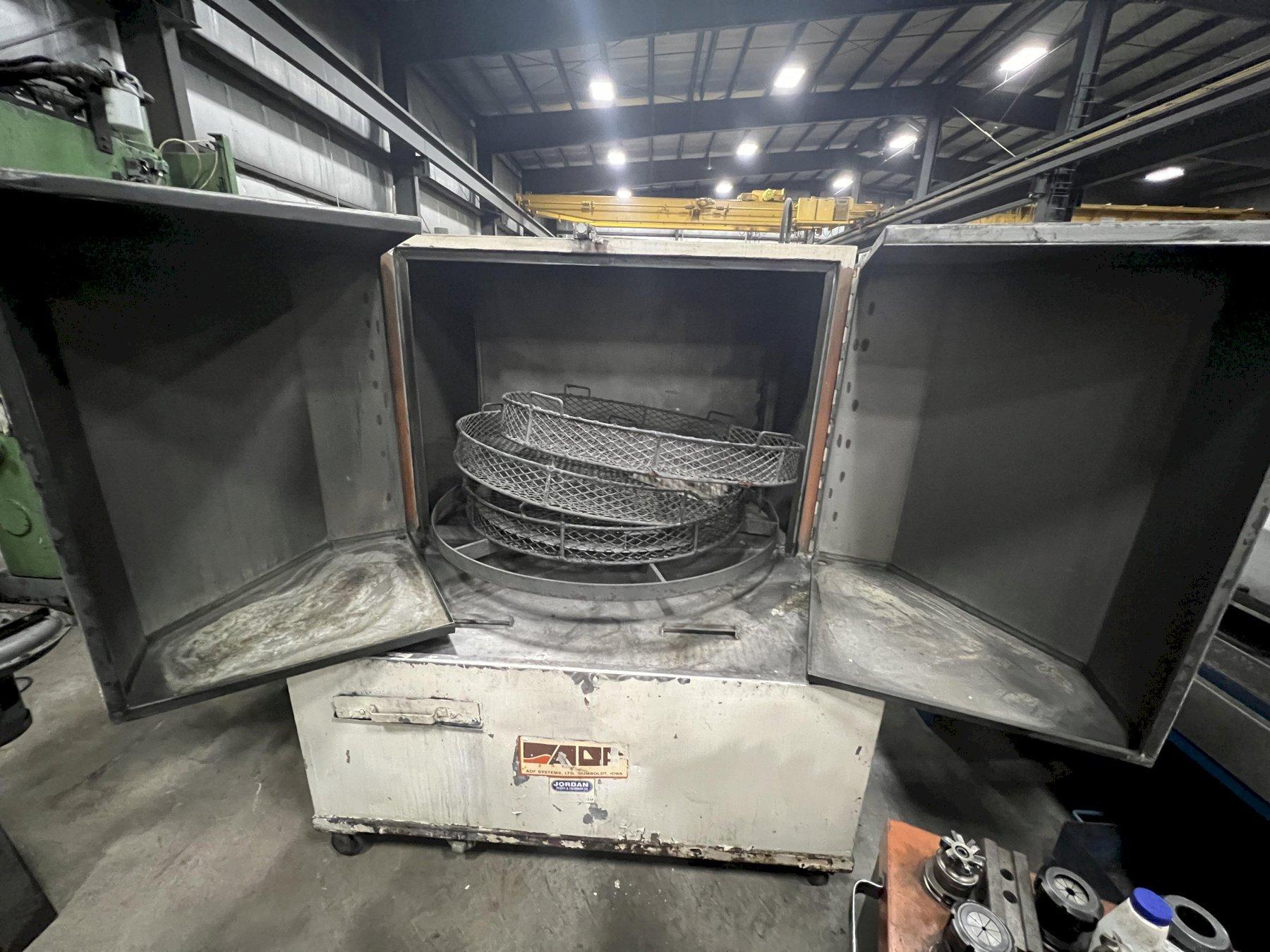

3 41" REMOVABLE MESH TABLES
HI PRESSURE/LOW VOLUME PERFORMANCE
440 VOLTS
