Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE..................... CINCINNATI
MODEL.................... 350AF-10
SERIAL NUMBER............ 46839
AGE (YEAR)............... 1990
OVERALL BED LENGTH....... 144"
DIST. BTWN. HOUSINGS..... 10' 6"
TONNAGE.................. 350
BENDING CAPACITY......... 3/4" x 8'6"
STROKE................... 10"
OPEN HEIGHT.............. 18"
CLOSED HEIGHT............ 8"
THROAT DEPTH............. 10"
MAIN MOTOR............... 25 HP
ELECTRICS................ 460V / 3PH
WEIGHT APPROX............ 53,800 LBS.
SLOT FOR BED............. 13" DEEP X 18" WIDE X 9'9" LONG
EQUIPPED WITH:

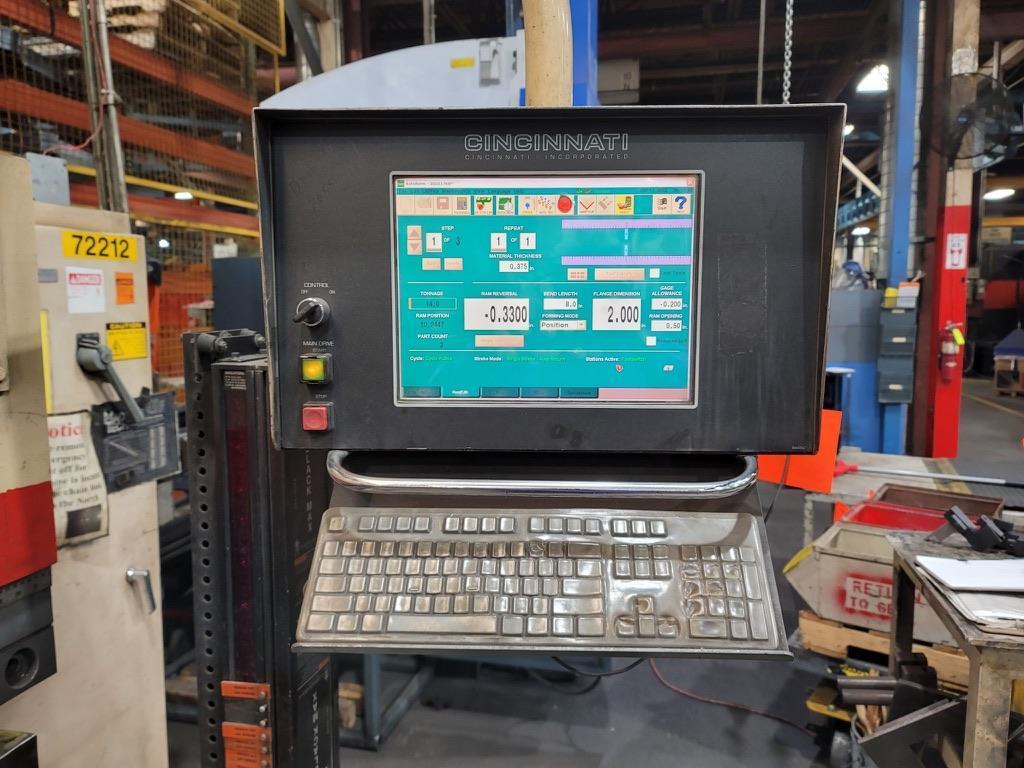

CINCINNATI WINDOWS BASED 3-AXIS CNC CONTROL (RETROFITTED 2010)
HEAVY DUTY 2-AXIS BACK GAUGE
CROWNING ON BED
HYDRAULIC CLAMPING ON RAM
12' DIE RAIL
PALM BUTTONS
ELECTRIC FOOT SWITCH
LINK LITE BLACK MAX LIGHT CURTAINS
SOLD WITH MDNA 30 DAY RETURN PRIVILEGE
FREIGHT FROM WAUKESHA, WISCONSIN TO CEDAR RAPIDS, IOWA $2,500
