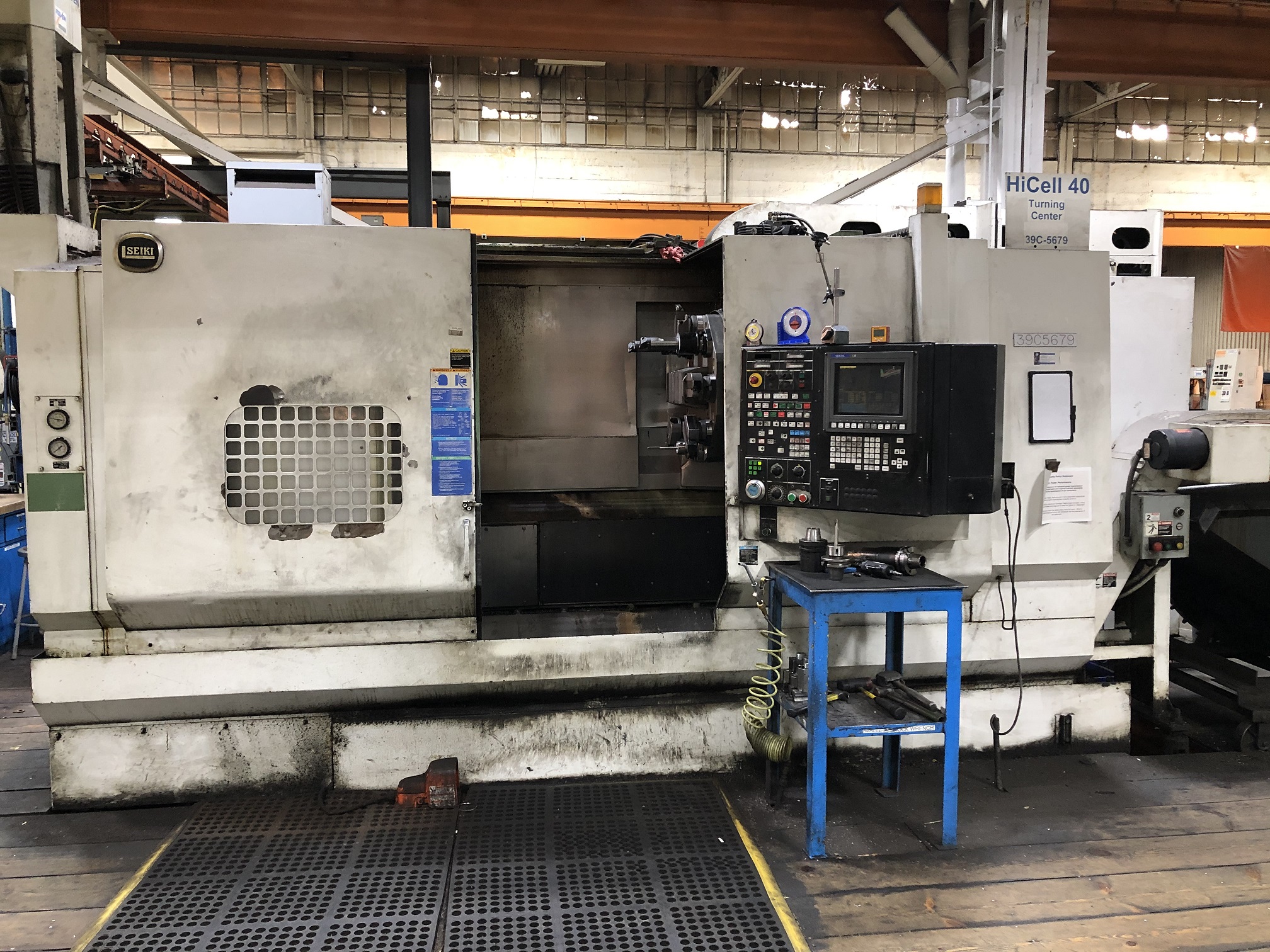

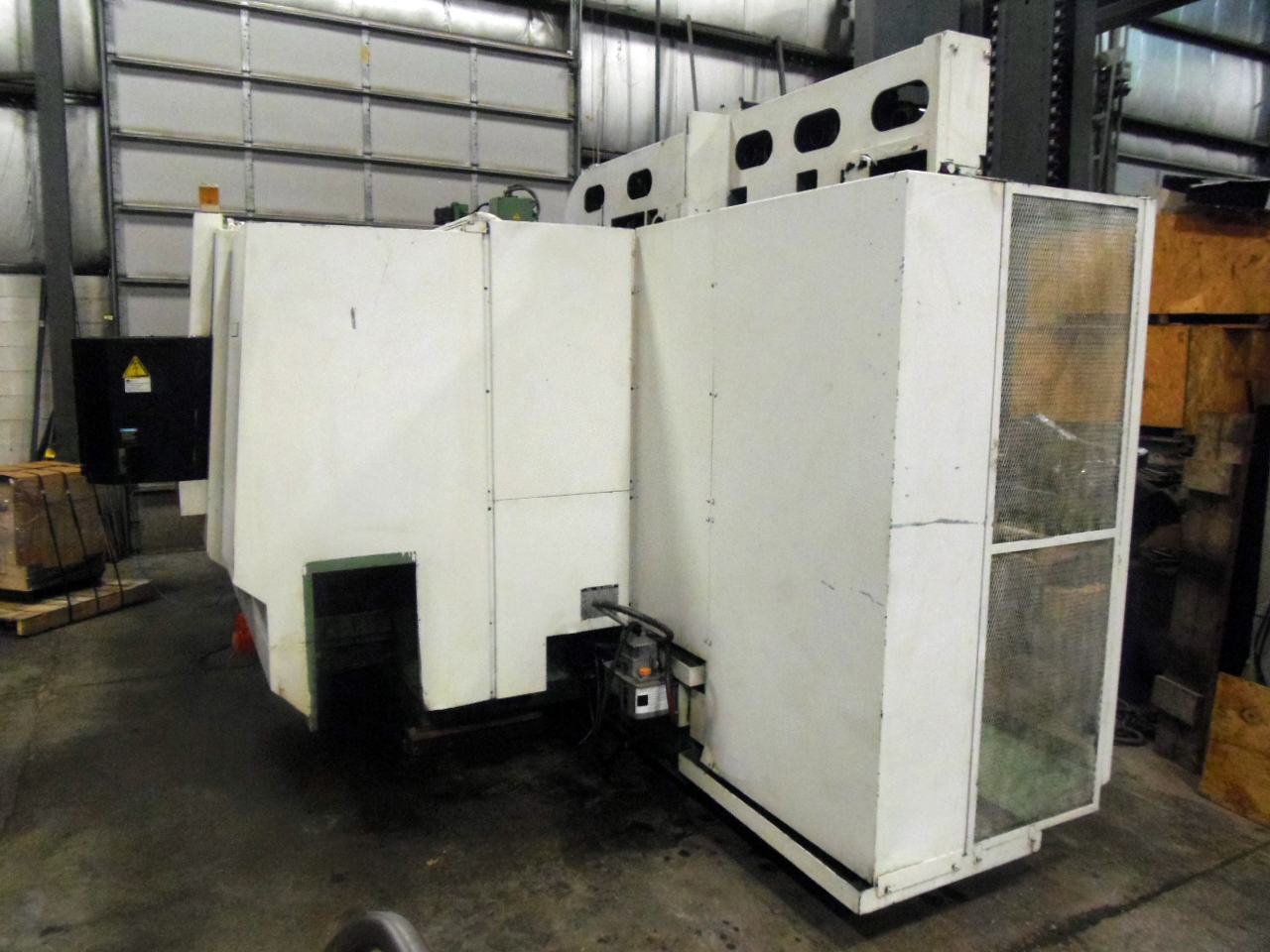

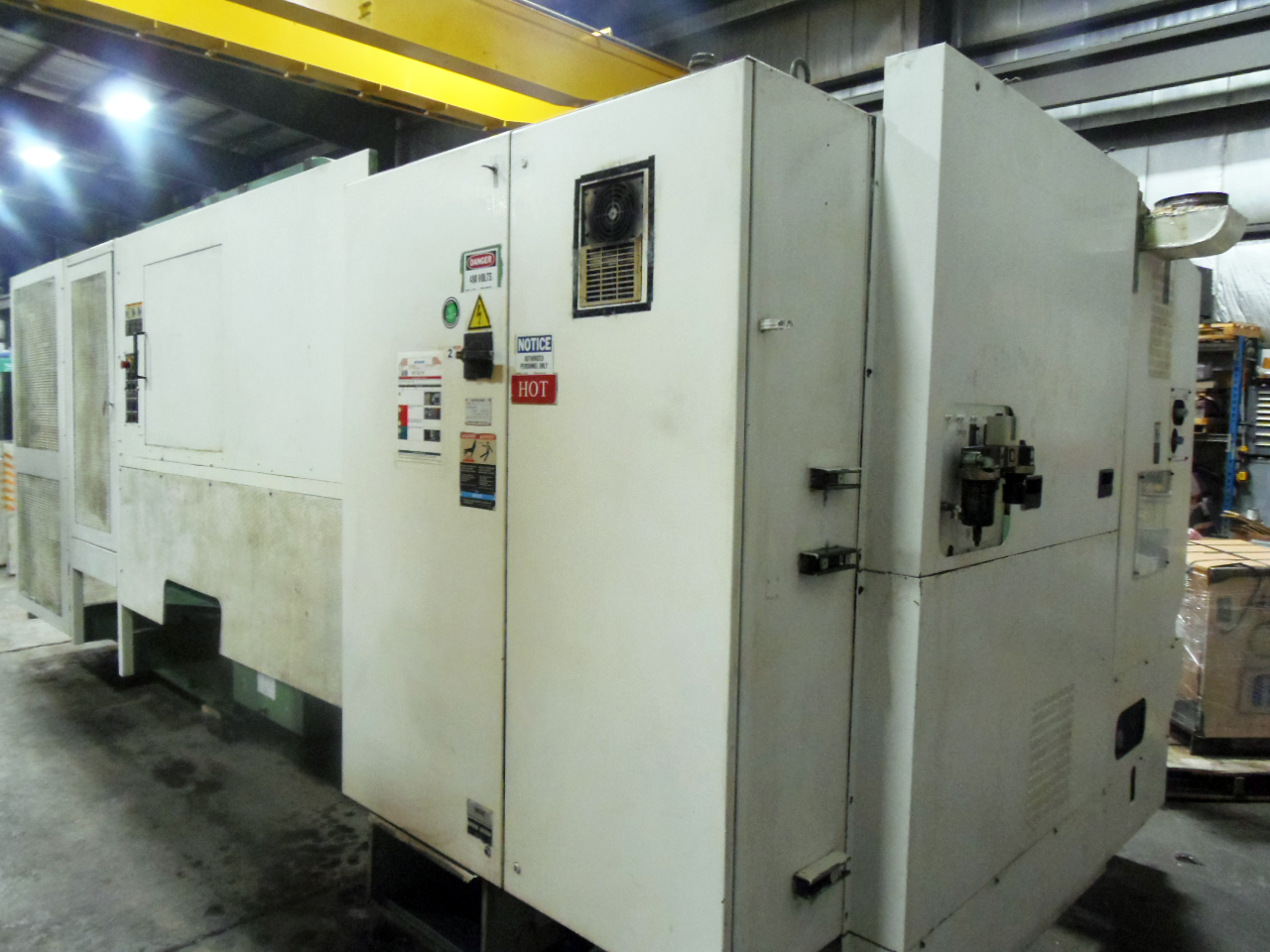

GENERAL SPECIFICATIONS:
MAKE................................. HITACHI SEIKI
MODEL................................ HIGHCELL 40
SERIAL NUMBER........................ CA-40069
AGE (YEAR)........................... 1997
MAX SWING............................ 27.6" (700 MM)
CHUCK DIAMETER (3 JAW).............. 15" (381 MM)
MAX MACHINABLE LENGTH................ 61.8" (1570 MM)
SPINDLE SPEED RANGE.................. 20 - 1800 RPM
GEAR RANGES.......................... 3
SPINDLE END SHAPE.................... A-11
SPINDLE THRU HOLE DIA................ 4.7" (120 MM)
SPINDLE MOTOR........................ 27/40 HP (20/30 KW)
STROKE X AXIS........................ 13" (330 MM)
STROKE Z AXIS........................ 63.8" (1620 MM)
RAPIDS X AXIS........................ 590"/MIN (15,000 MM/MIN)
RAPIDS Z AXIS........................ 787"/MIN (20,000 MM/MIN)
CUTTING FEED RATE.................... 0.0001-99.9999 INCH/REV (0.001-999.999 MMPR)
NUMBER OF MOUNTABLE ROTATING TOOLS... 2
ROTATING TOOL SELECTION METHOD....... RANDOM
ROTATING TOOL SPINDLE TAPER.......... NT50
STROKE
Y AXIS............................ 7.9 (+-4) 200MM (+-100)
CUTTING FEED RATE
C AXIS............................ 2000 0/MIN
Y AXIS............................ 0.0003 - 19.7 INCH/MIN
0.01 - 500 MM/REV
RAPID TRAVERSE RATE
C AXIS............................ 16.6 RPM
Y AXIS............................ 393.7 INCH/MIN (10000 MM/MIN)
ROTATING TOOL SPINDLE SPEED.......... 100 - 2000 RPM
ROTATING TOOL SPINDLE MOTOR.......... 3.7/7.4 HP

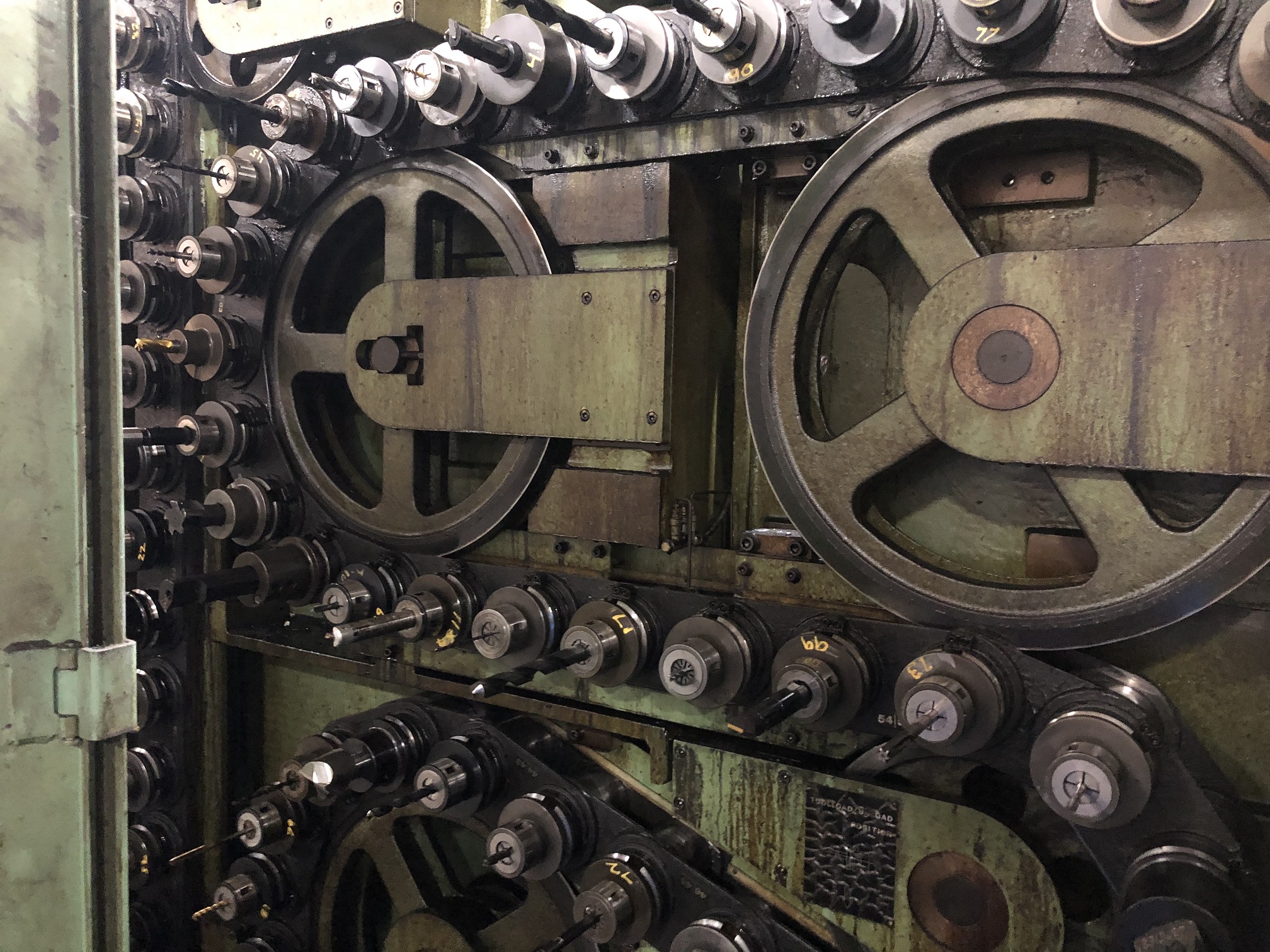

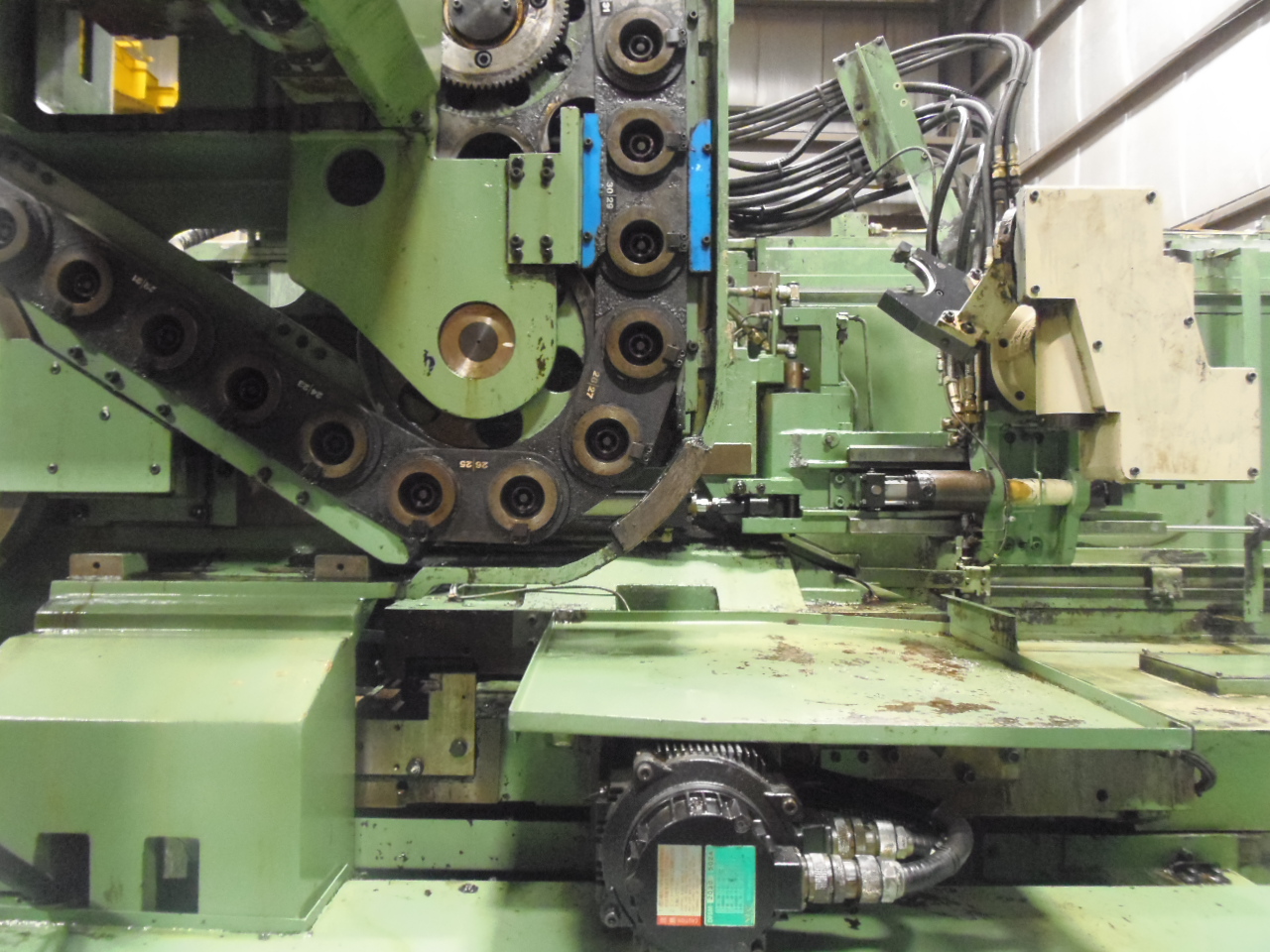

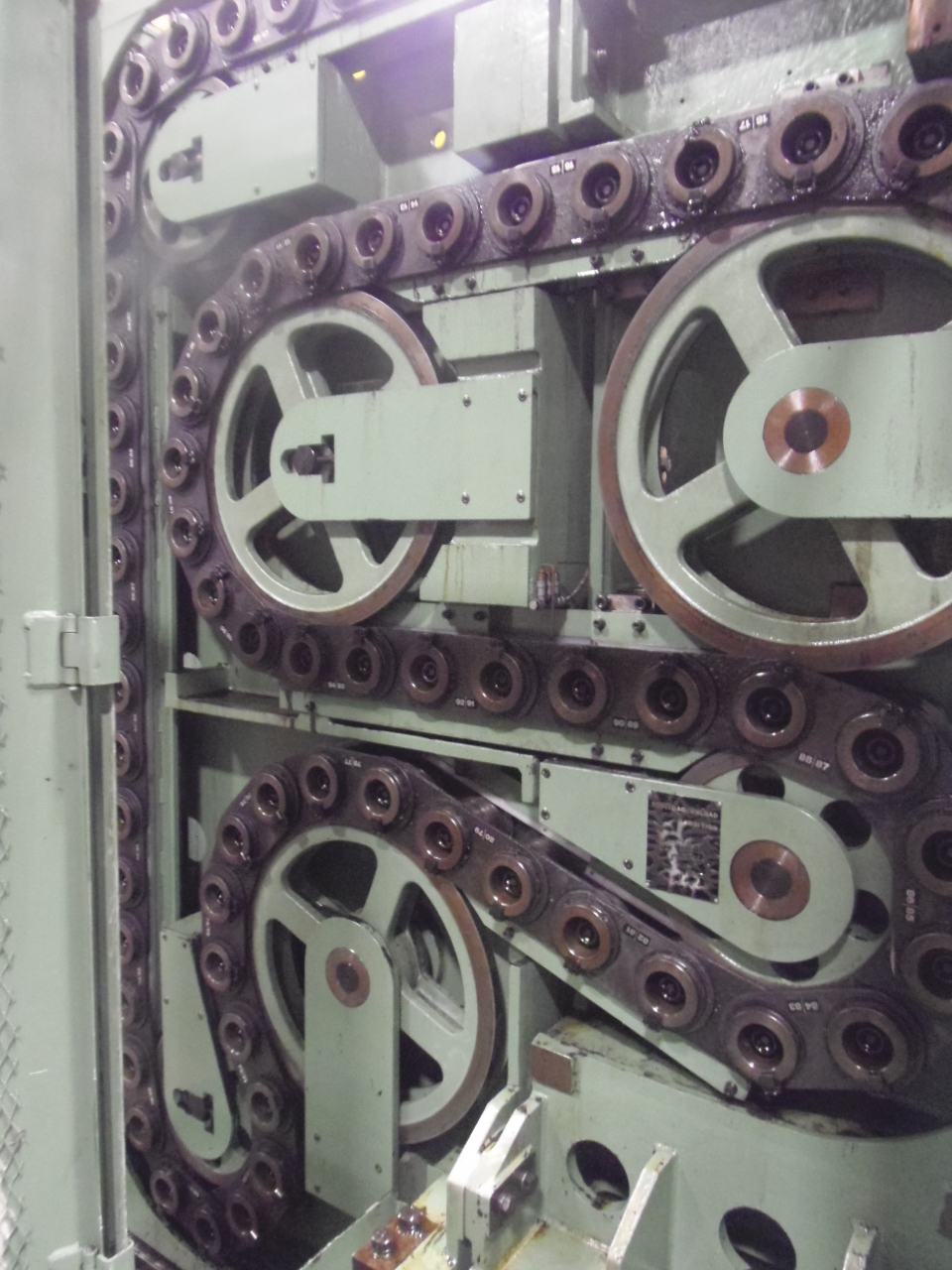

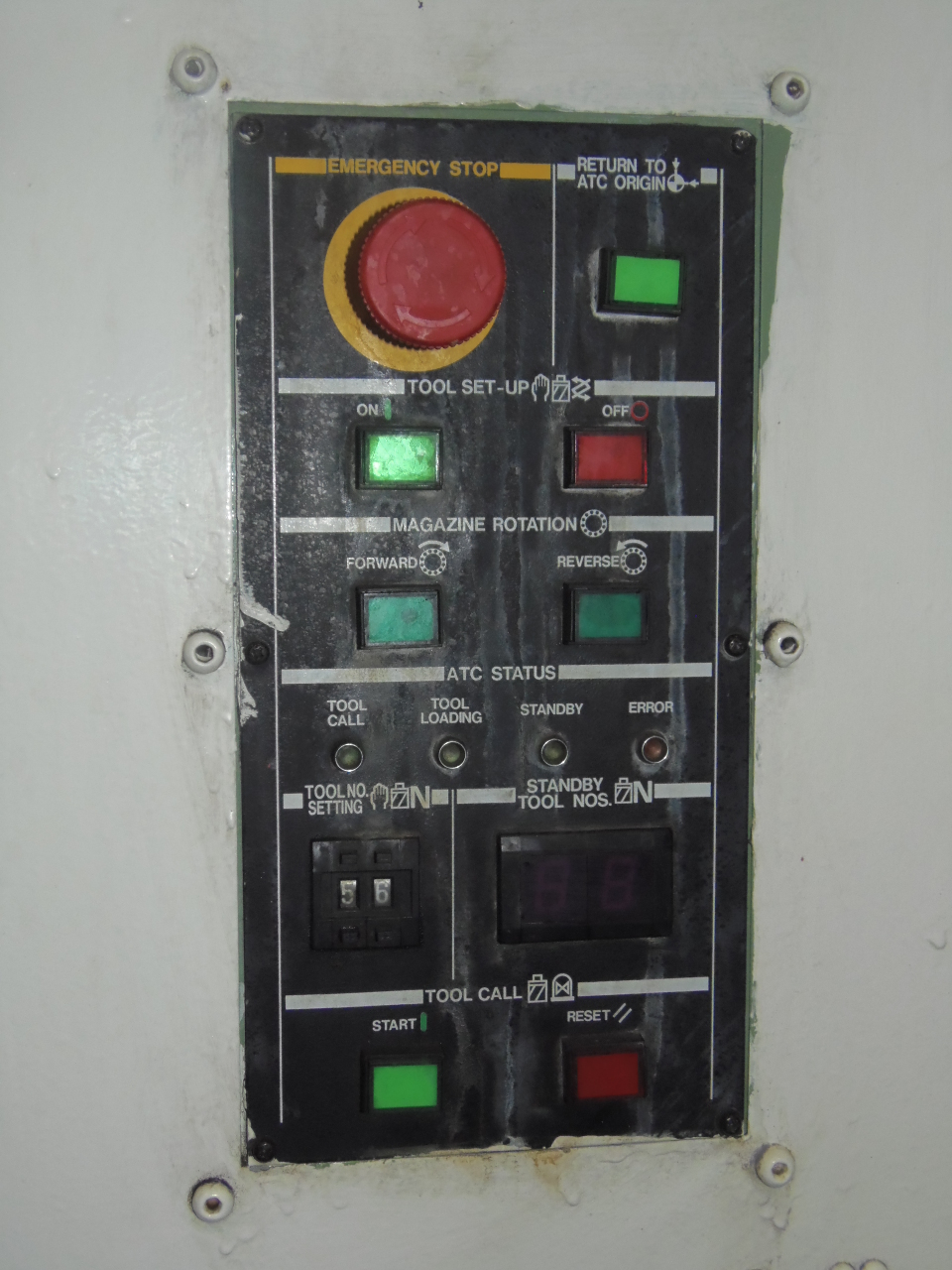

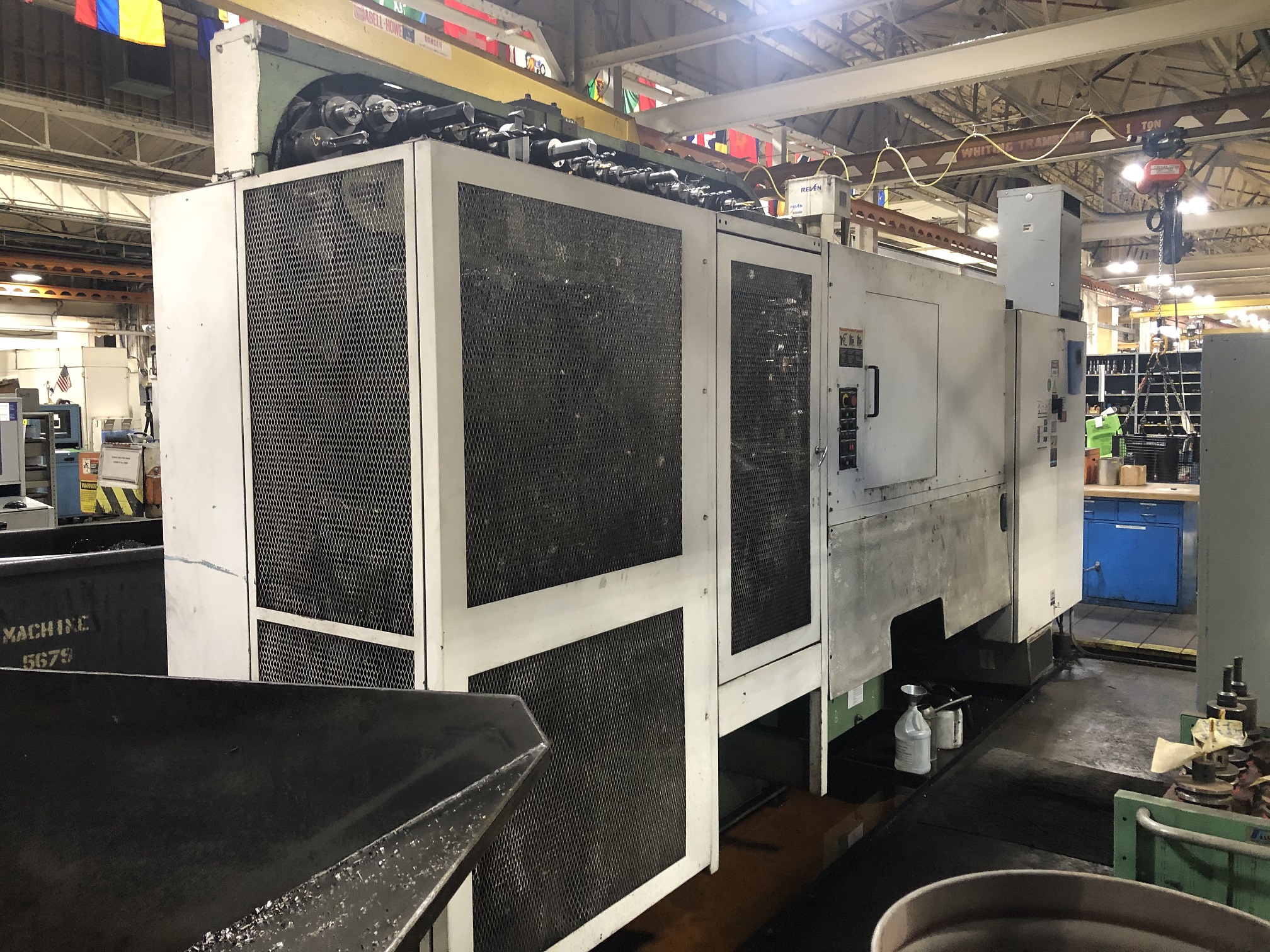

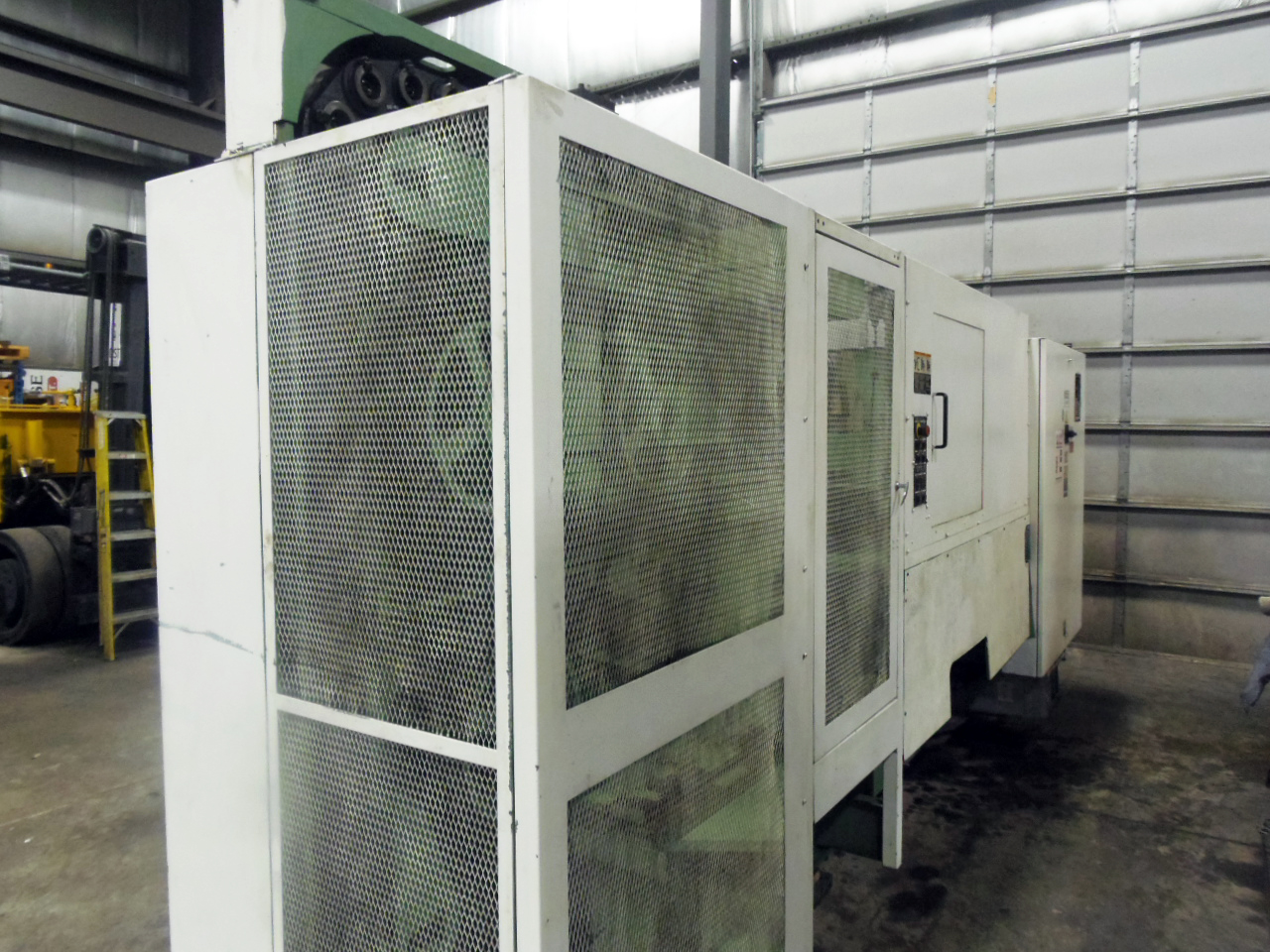

TOOL CHANGER POSITIONS............... 90
TOOL SELECTION METHOD................ RANDOM
MAX. TOOL SIZE....................... 4." DIA.X 11.8" LONG X 22 LBS
TOOL CHANGE SYSTEM................... TWIN ARM
TAILSTOCK
TAPER............................. MT-5
TAILSTOCK MOTORIZED MOVEMENT...... 63"
CONTROL
NUMBER OF AXIS.................... 5

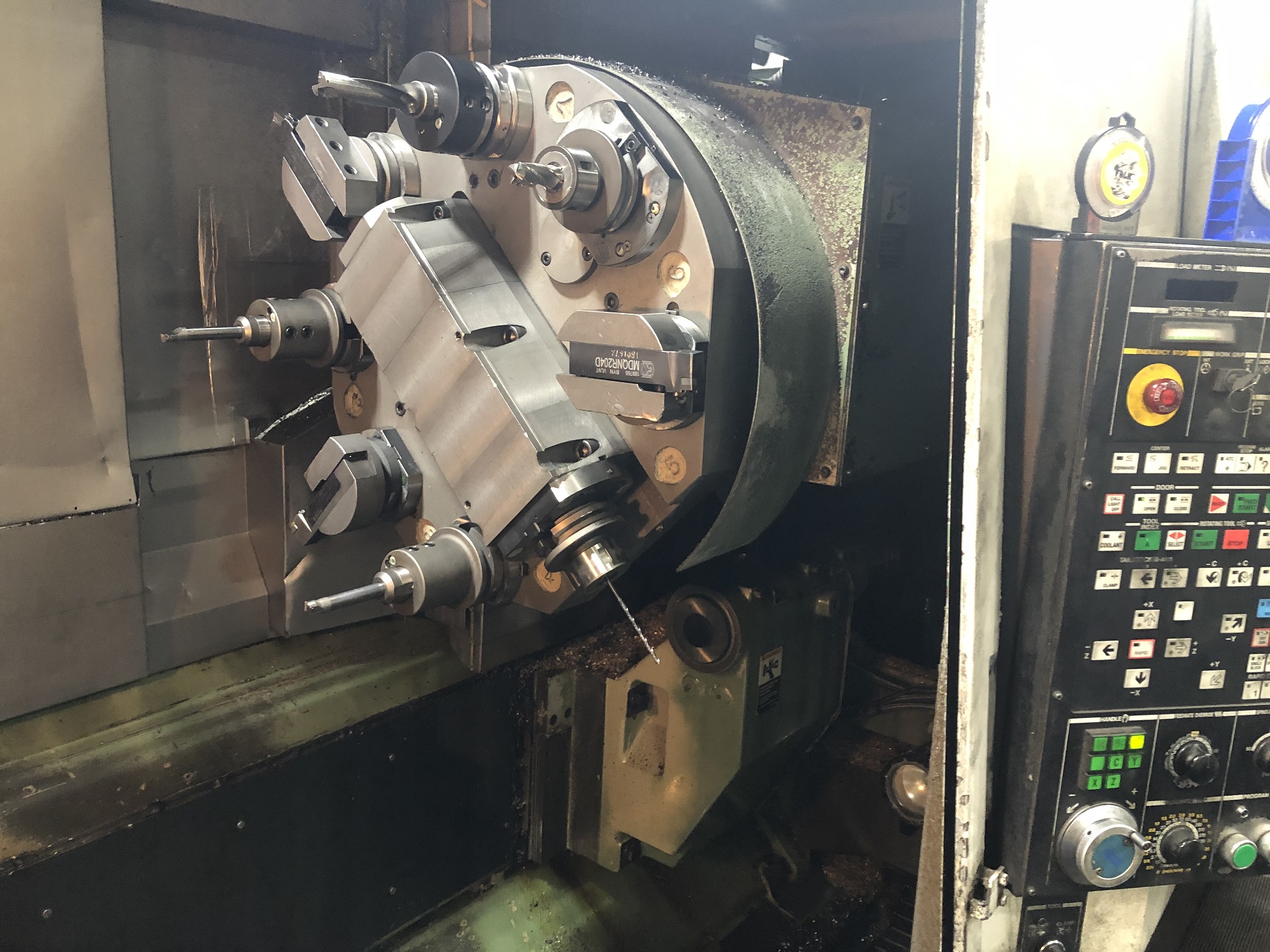

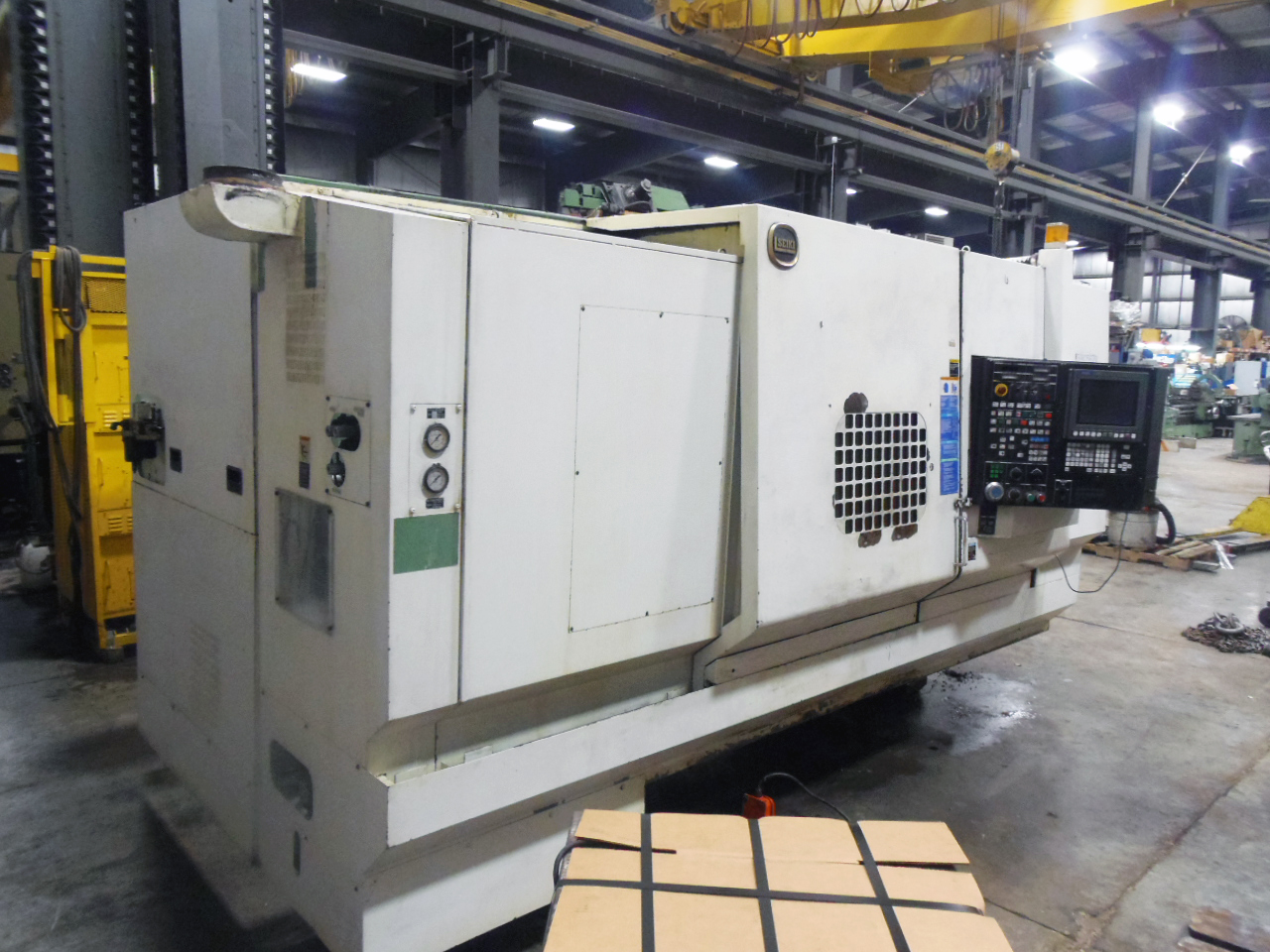

CONTROL UNIT...................... SEICOS-LIII-A
ELECTRICS............................ 230/460 V
WEIGHT............................... 36000 LBS.
APPROX. DIMENSIONS................... 160" X 126" (6640 X 3200 MM)
EQUIPPED WITH:
LIVE MILLING/TOOLING
C AND R AXIS
MANUALS

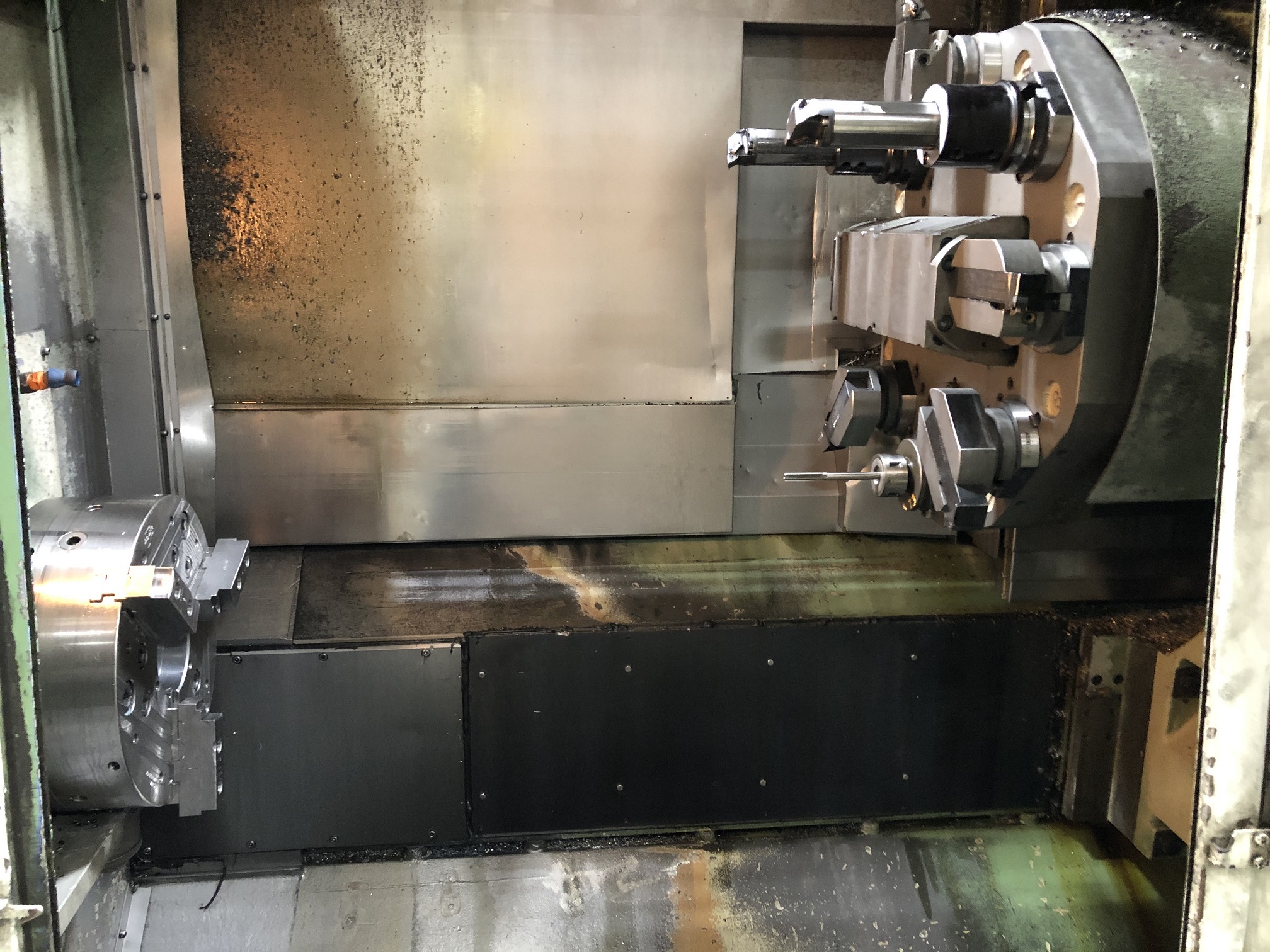

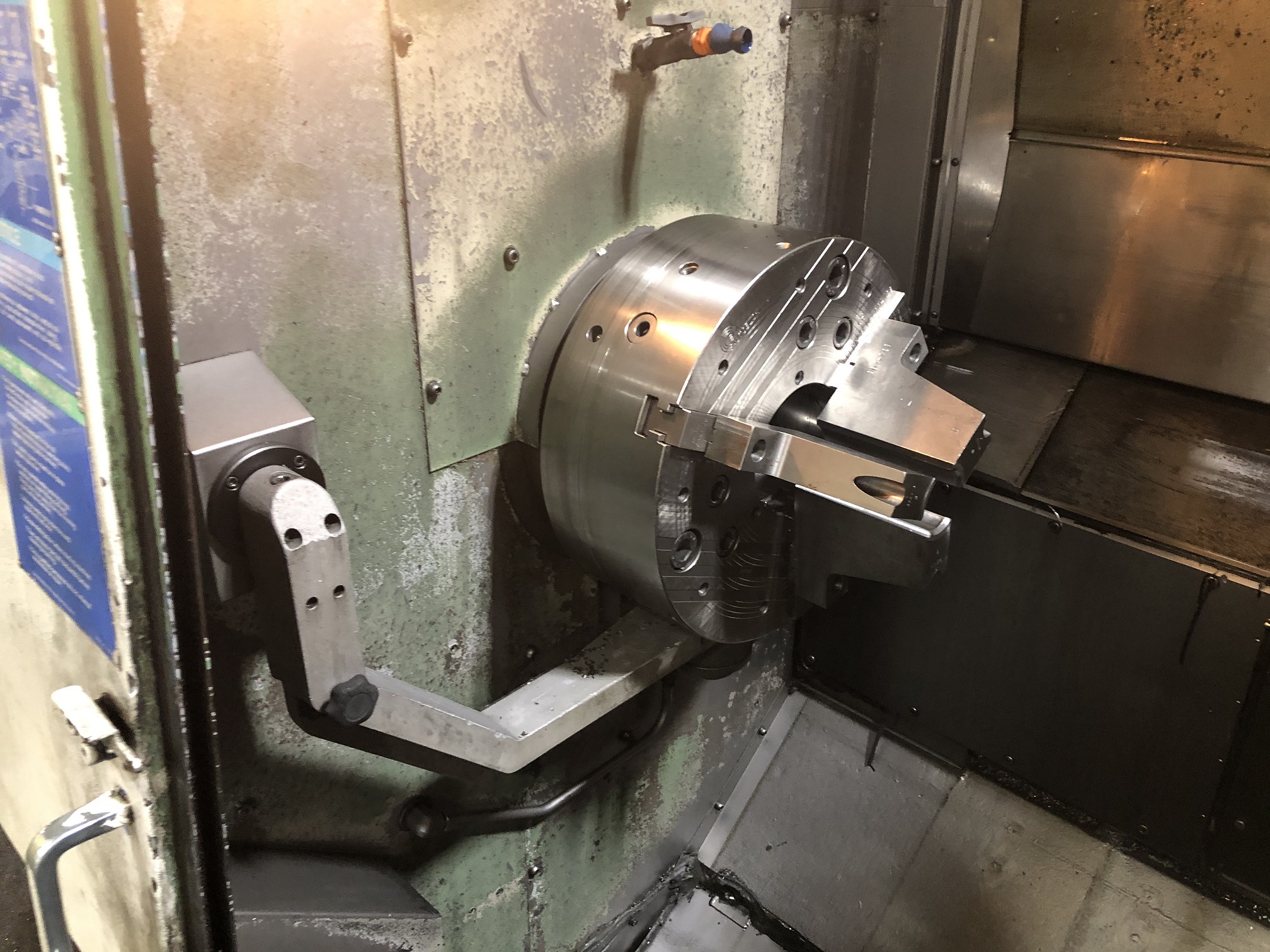

CUSHMAN 15" 3 JAW HYDRAULIC CHUCK
TAILSTOCK

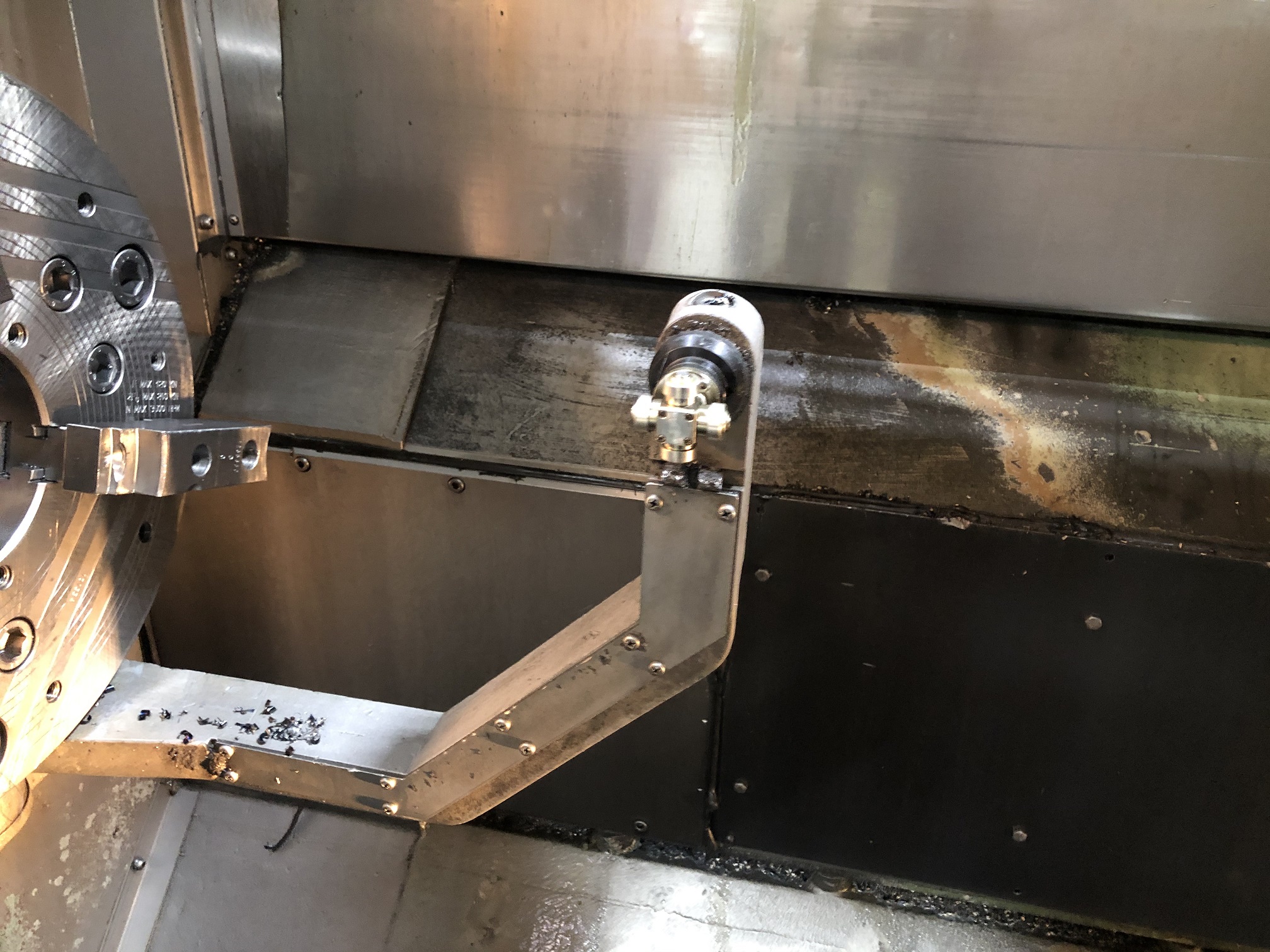

TOOL SETTER

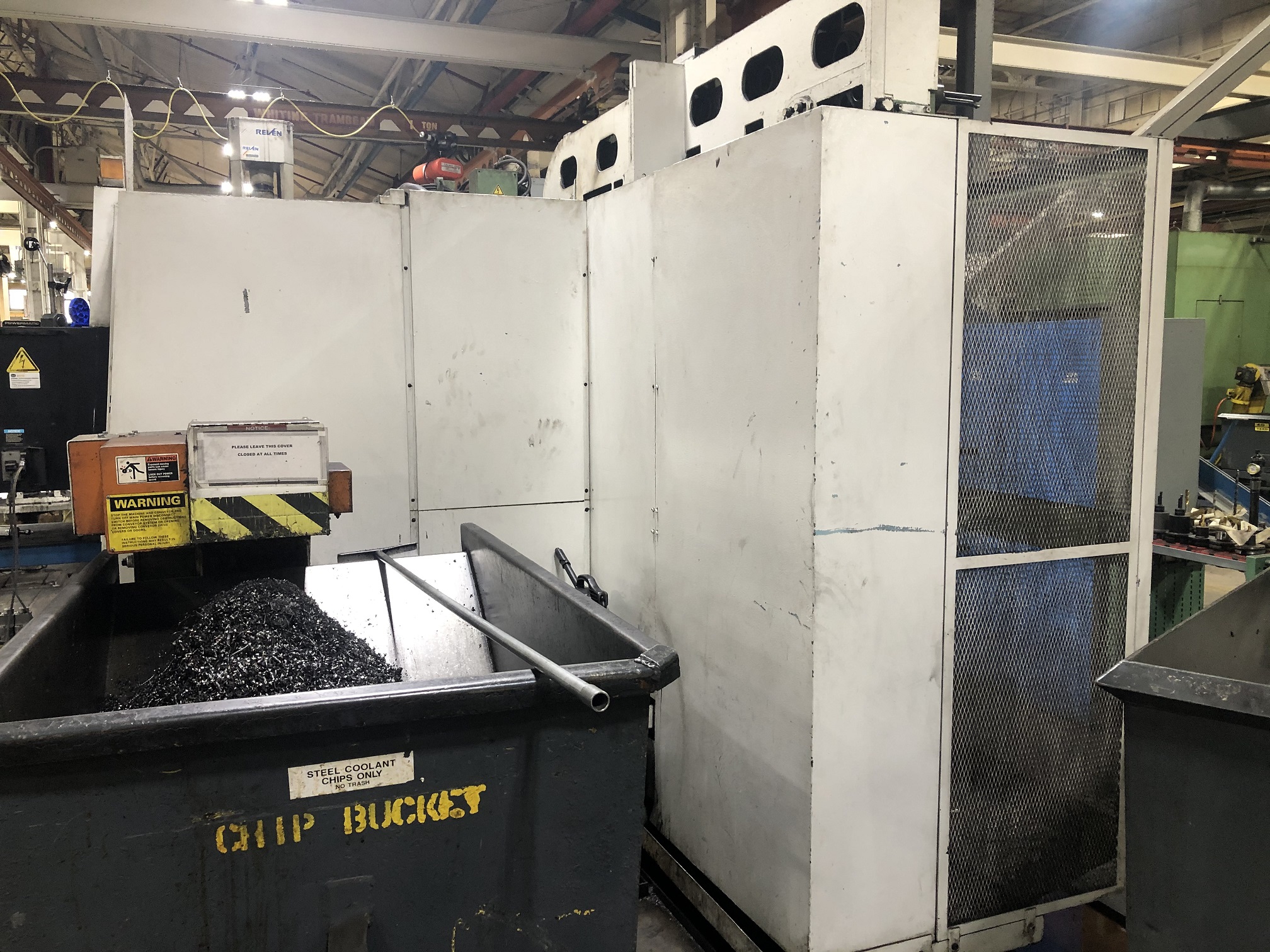

CHIP CONVEYOR

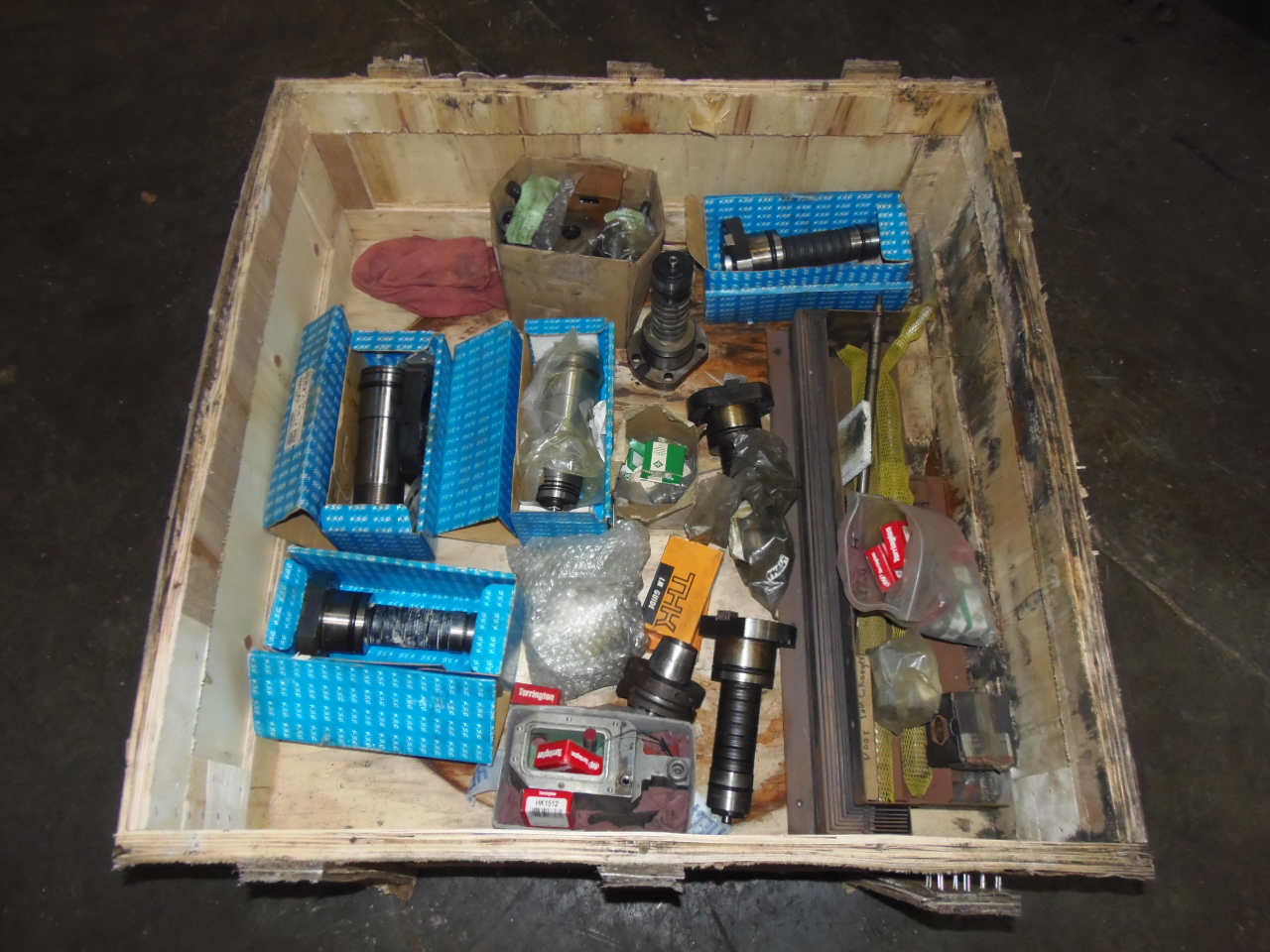

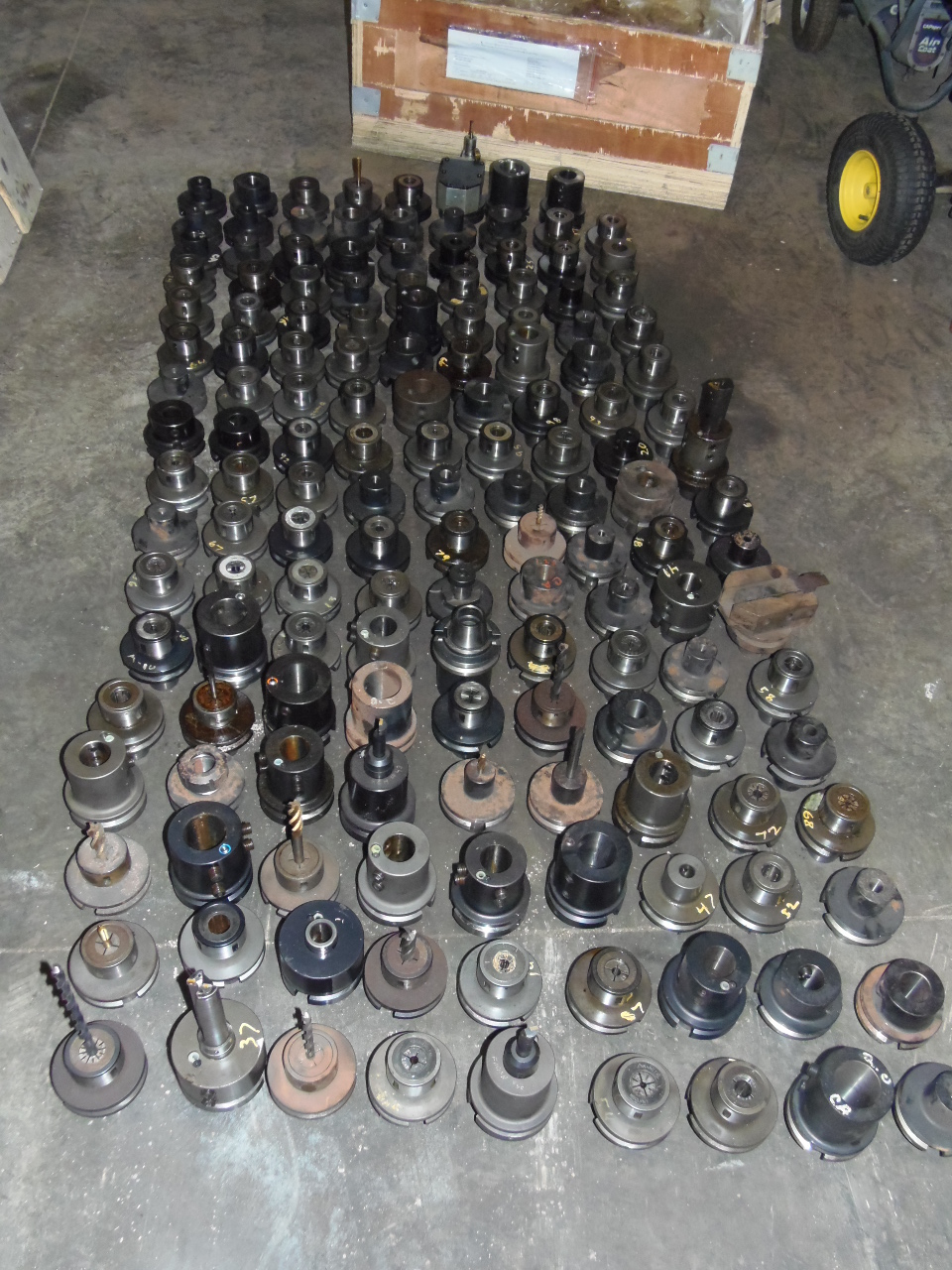

150 TOOL HOLDERS

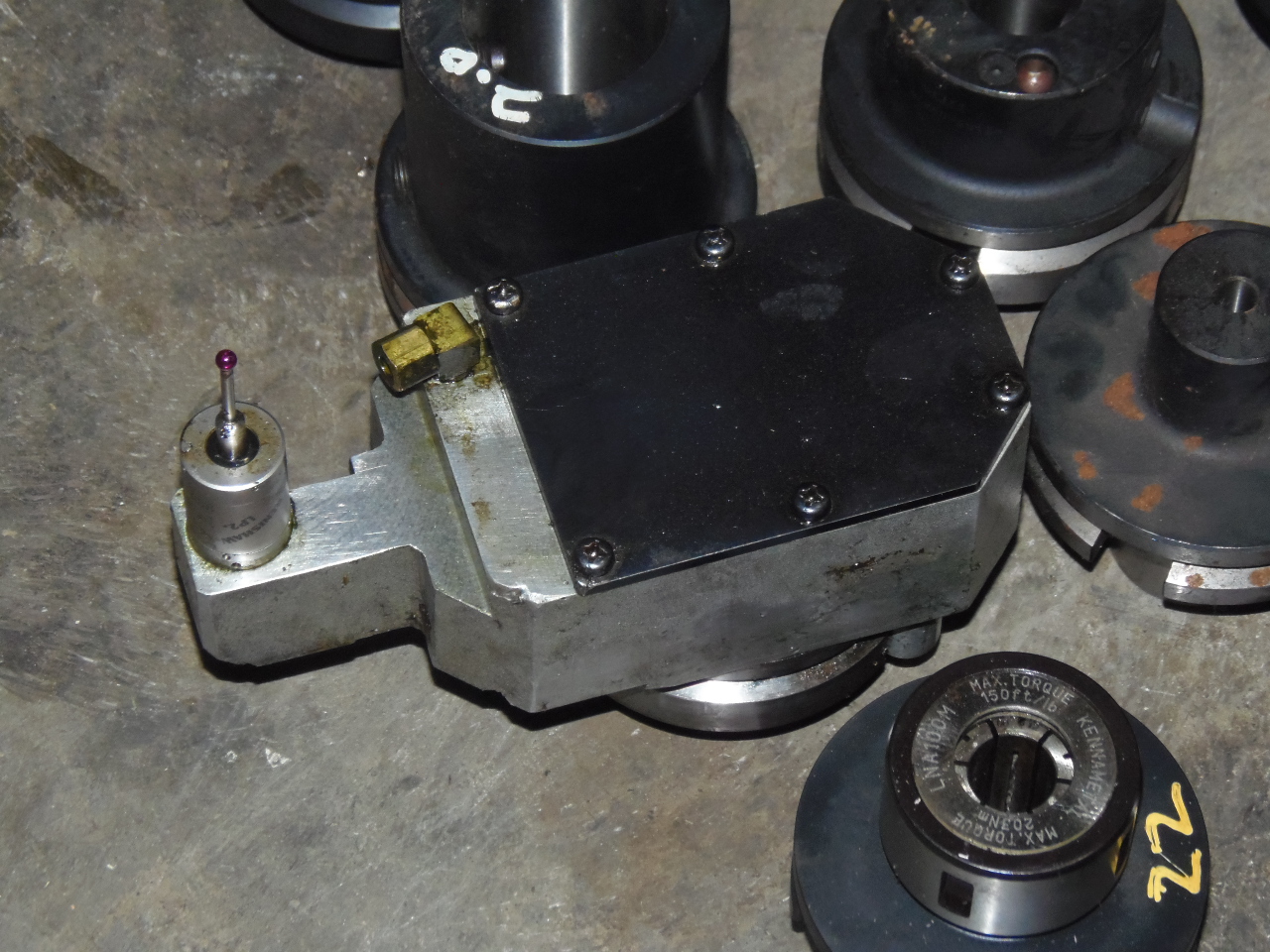

PROBE

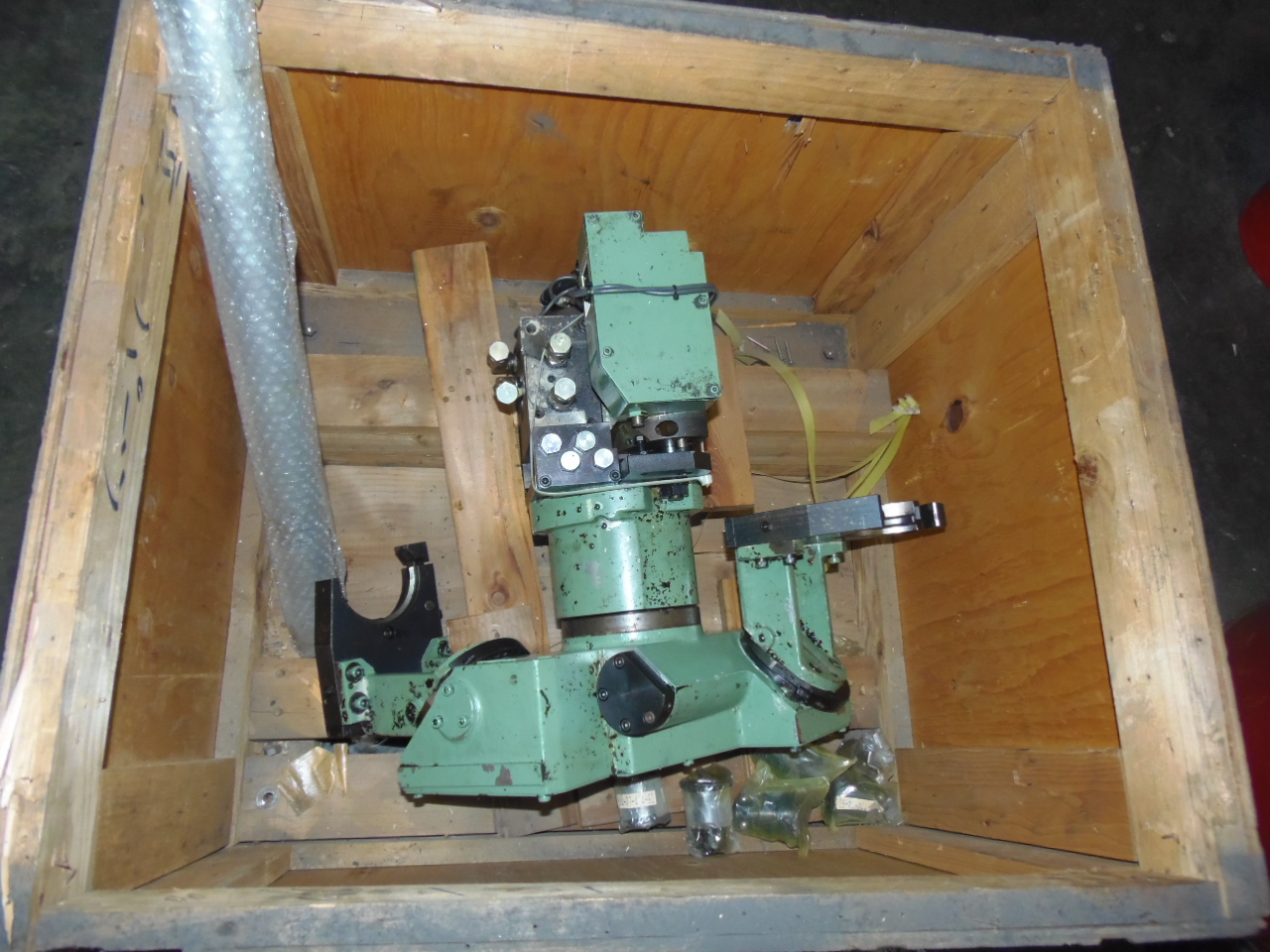

EXTRA TOOL CHANGER ARM

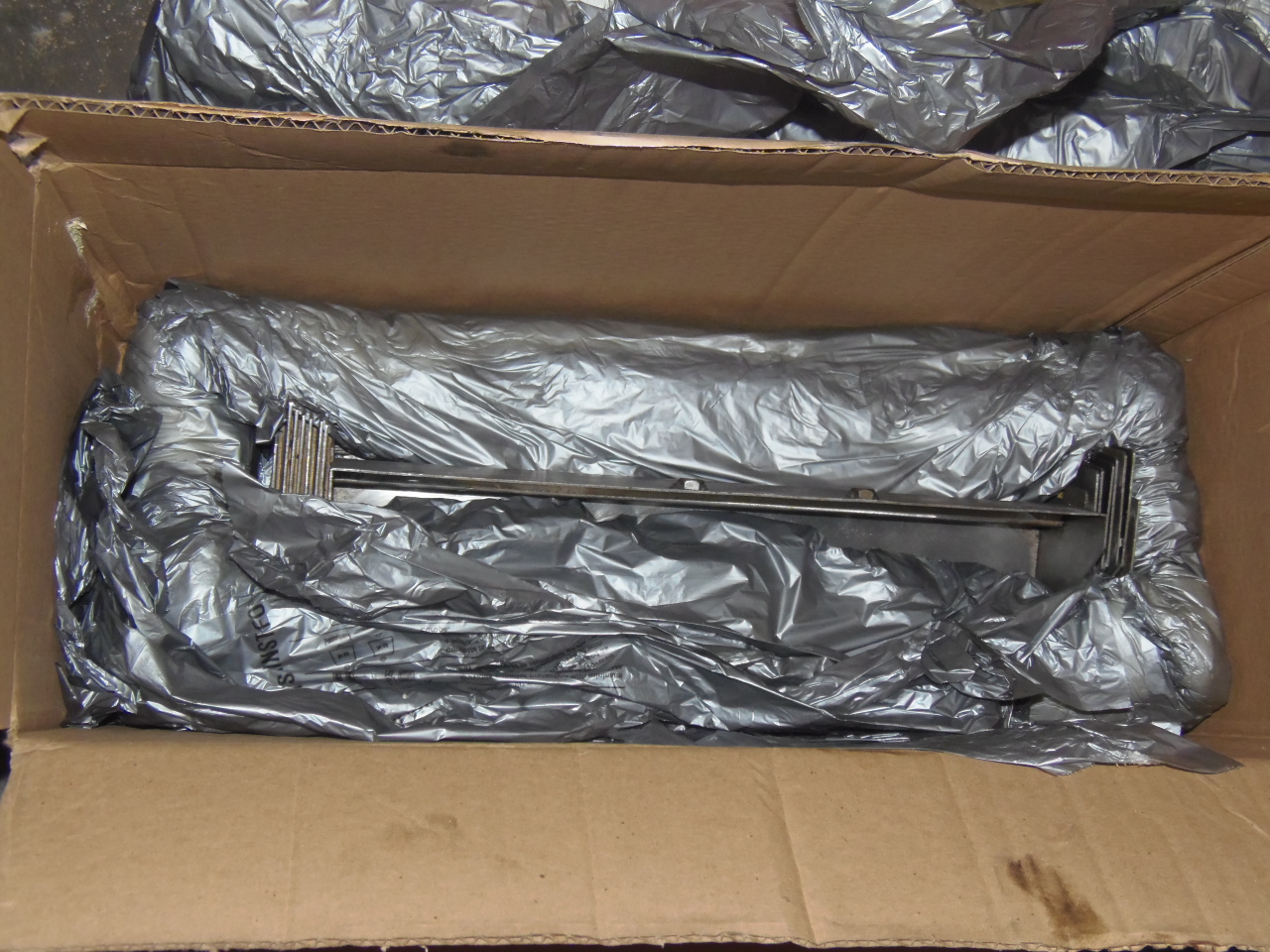

UNUSED WAY COVER
