Specifications
Equipped With
GENERAL SPECIFICATIONS:

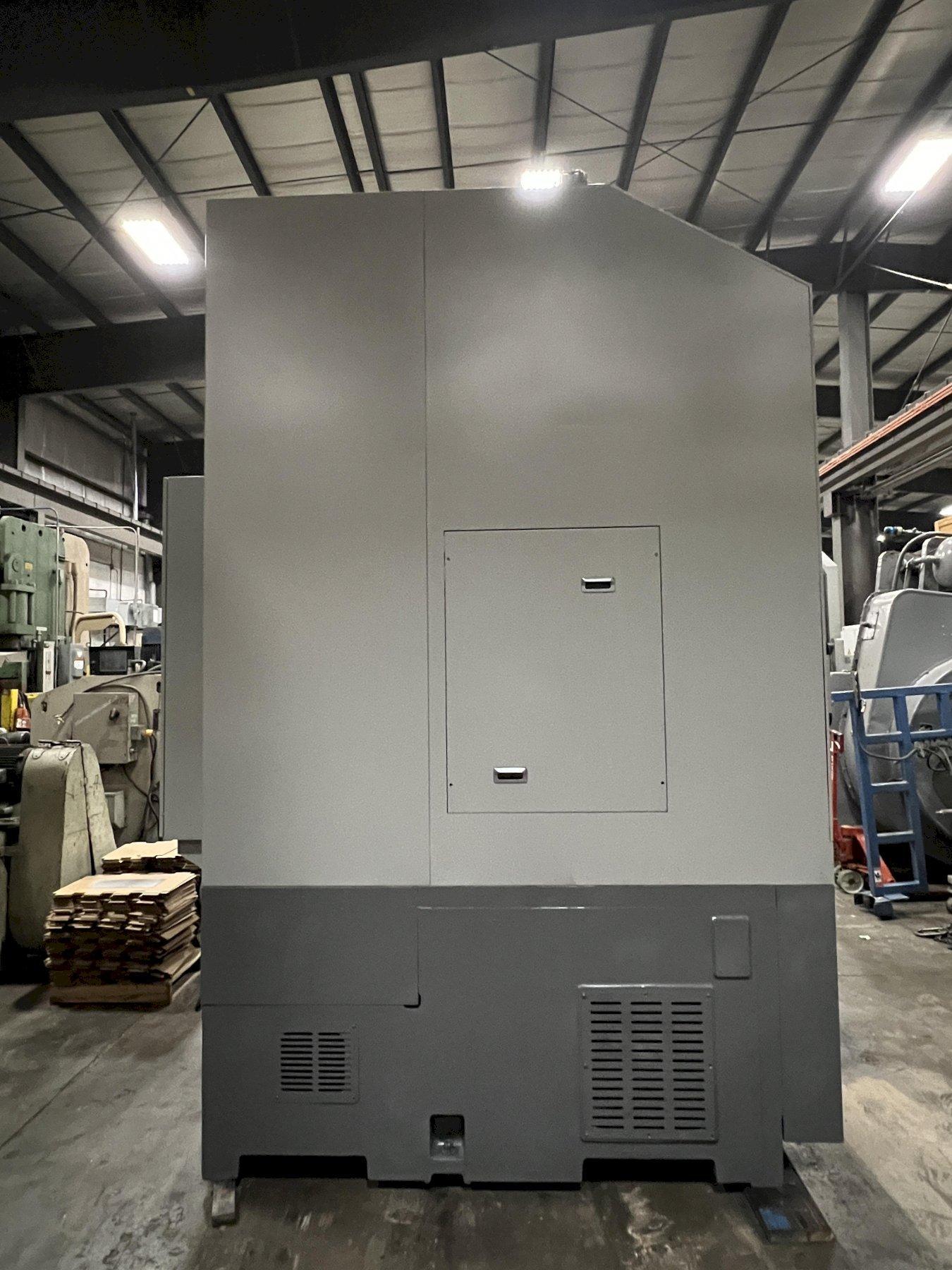

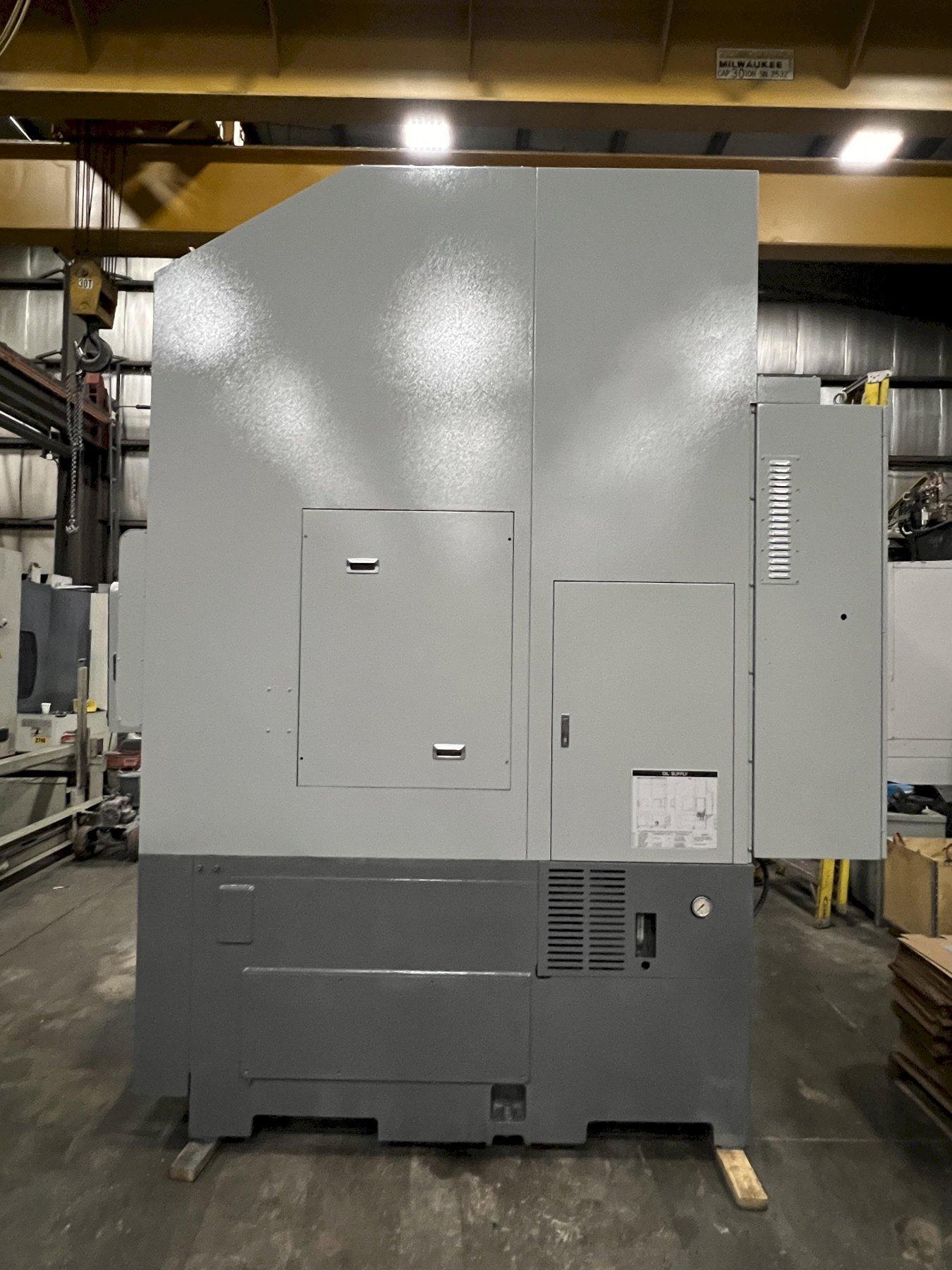

MAKE.............................. HYUNDAI WIA

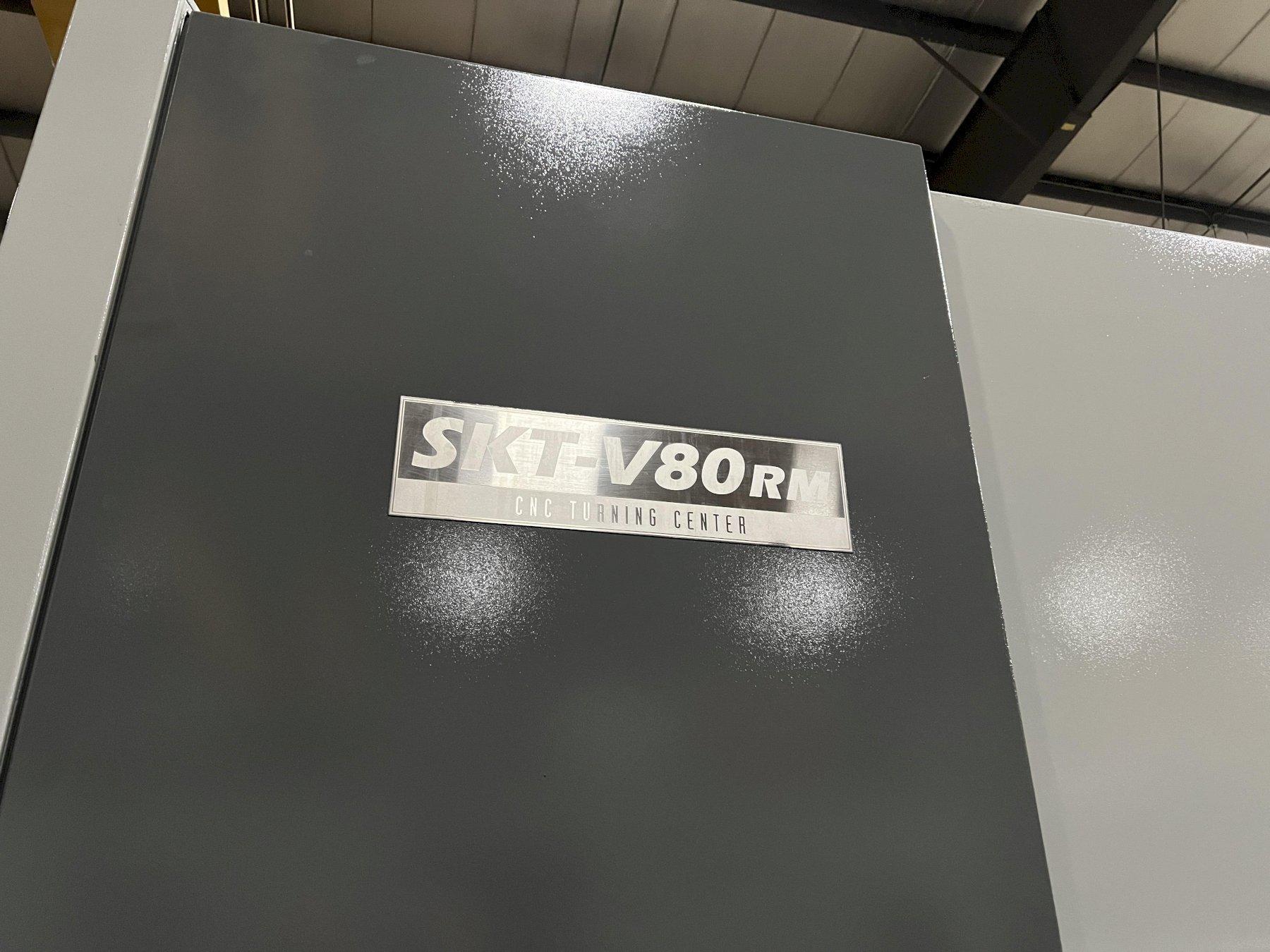

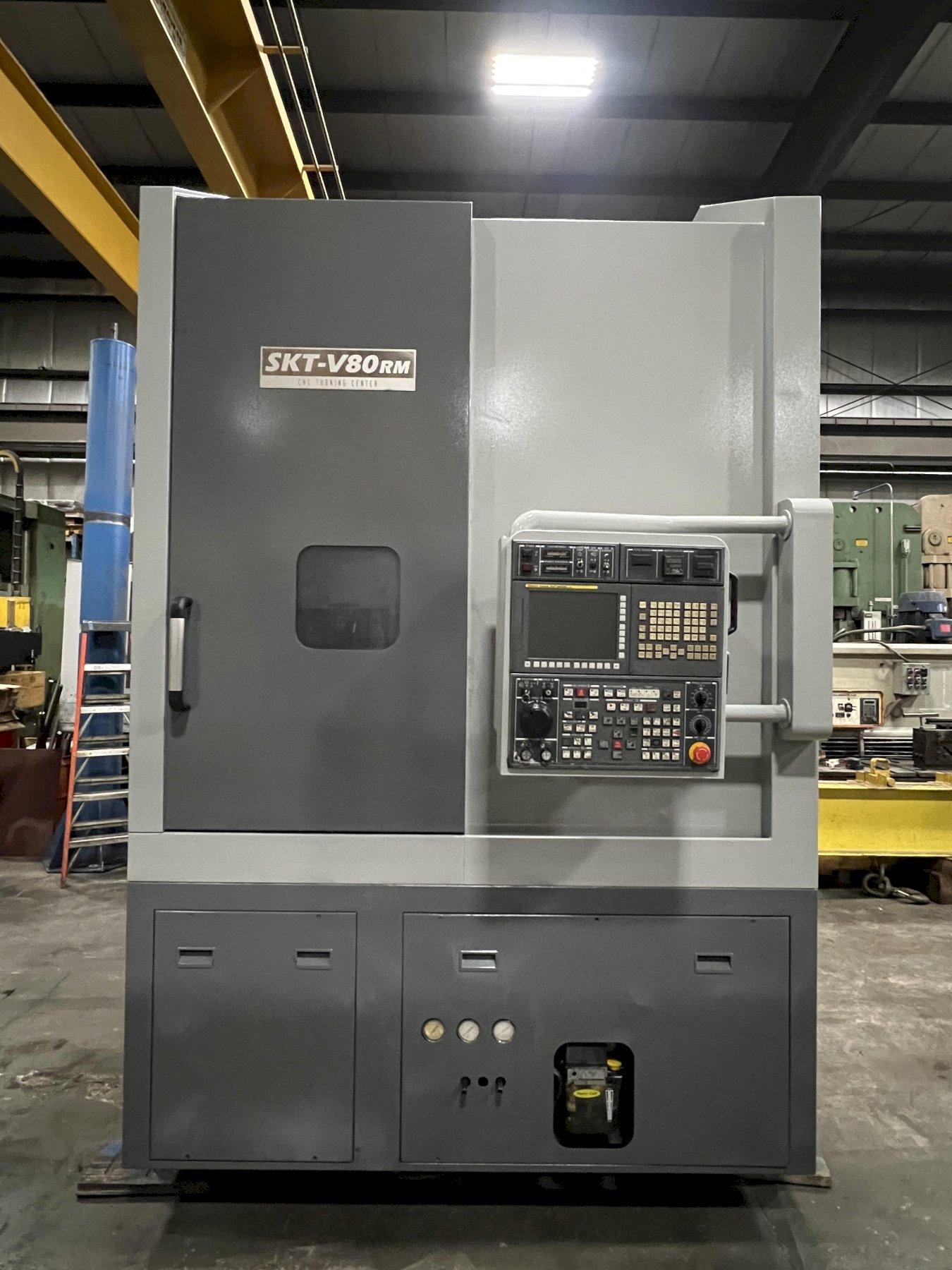

MODEL............................. SKT-V80RM

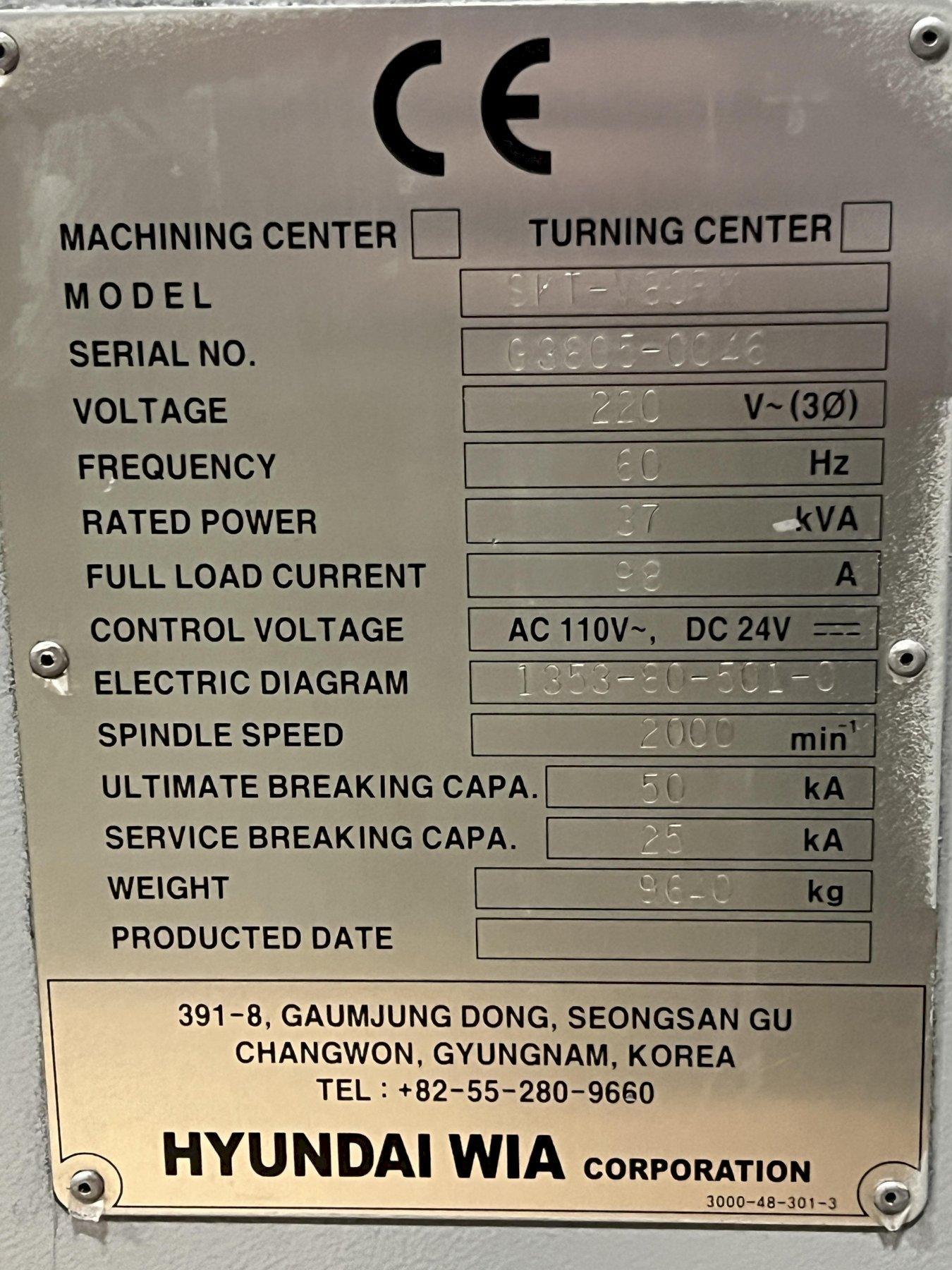

SERIAL NUMBER..................... G3805-0046
AGE (YEAR)........................ 2010
MAXIMUM SWING..................... 890 MM (35")
SWING ON THE CARRIAGE............. 710 MM (27.9")
MAX. MACHINE DIAMETER............. 800 MM (31.4")
MAX. MACHINE LENGTH(SHAFT)........ 800 MM (31.4")
STANDARD CHUCK.................... HC-18A11
STANDARD CYLINDER................. Y2035SRE
SECTIONAL HEIGHT OF SPINDLE....... 1107 MM (43.5")
SPINDLE:
MAIN SPINDLE SHAPE................ ASA A2-11
PENETRATION DIA OF MAIN SPINDLE... 104 MM (4")
SPEED RANGE OF MAIN SPINDLE....... 20-2000 RPM

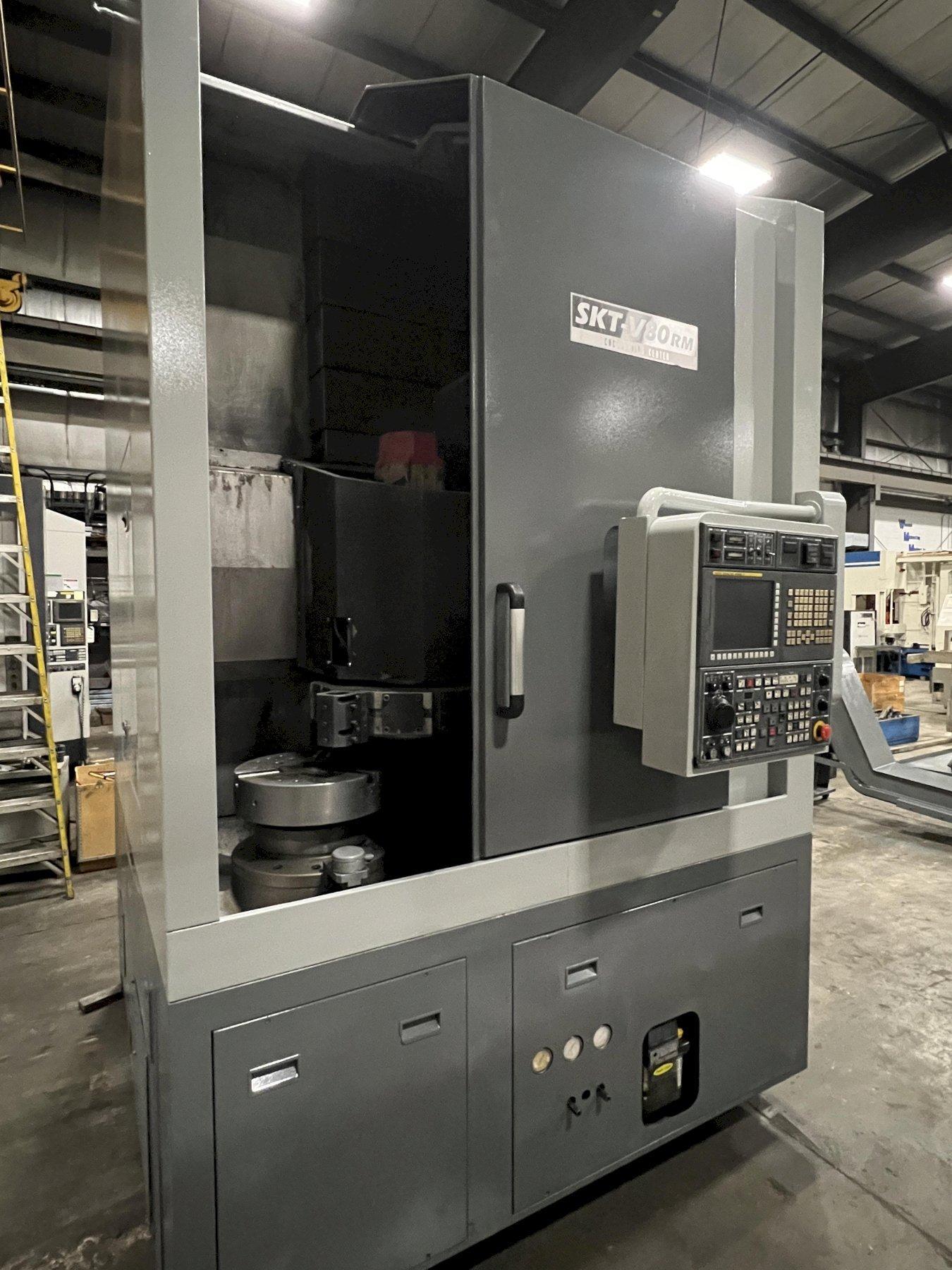

TURRET:

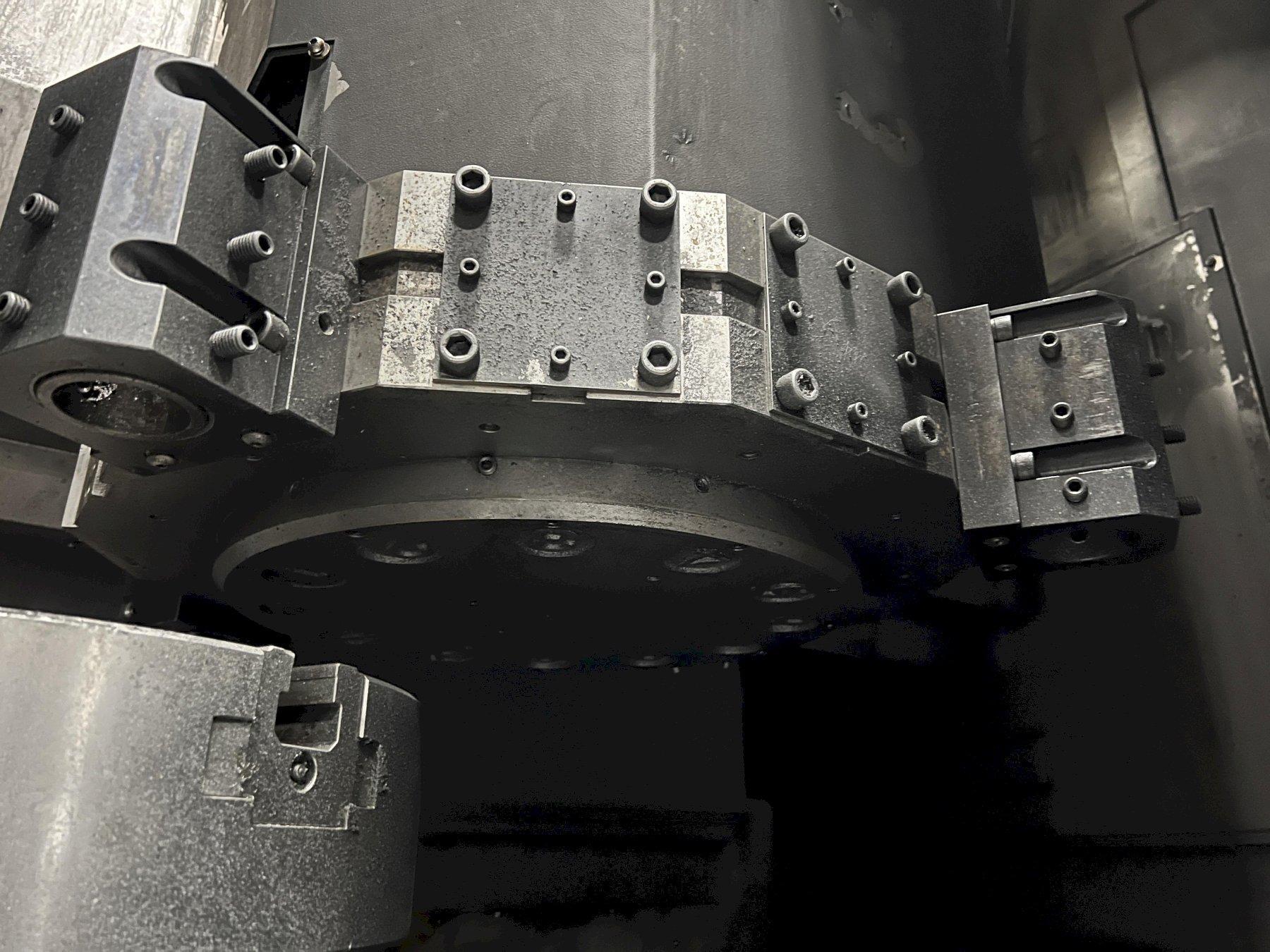

TYPE OF TURRET: (12 ANGLE DRUM TURRET DODECAGON)
NUMBER OF EQUIPPED TOOLS........... 12
CLAMP FORCE........................ 110 KN
SEGREGATION TIME (INDEX)........... .2 SEC / 1 STEP
SEGREGATION TIME (INDEX)........... 1.7 SEC / FULL STEP
TRAVELING SHAFT:
TRAVELING DIST. OF X AXIS.......... 440 MM
TRAVELING DISTANCE OF Z AXIS....... 800 MM
RAPID TRAVELING SPEED OF X AXIS.... 20 M /MIN
RAPID TRAVELING SPEED OF Z AXIS.... 20 M /MIN
MOTOR:
MAIN SPINDLE MOTOR (30 MIN / CONT.) 22/30 KW
X AXIS MOTOR....................... 4 KW
Z AXIS MOTOR....................... 6 KW
COOLANT MOTOR...................... .9 KW
HYDRAULIC MOTOR.................... 2.2 KW
SIZE OF MACHINE:
HEIGHT OF MACHINE.................. 3350 MM (132")
REQUIRED AREA...................... 1975 X 3497 MM (77" X 137")
WEIGHT............................. 11000 KG (25,000 LBS)

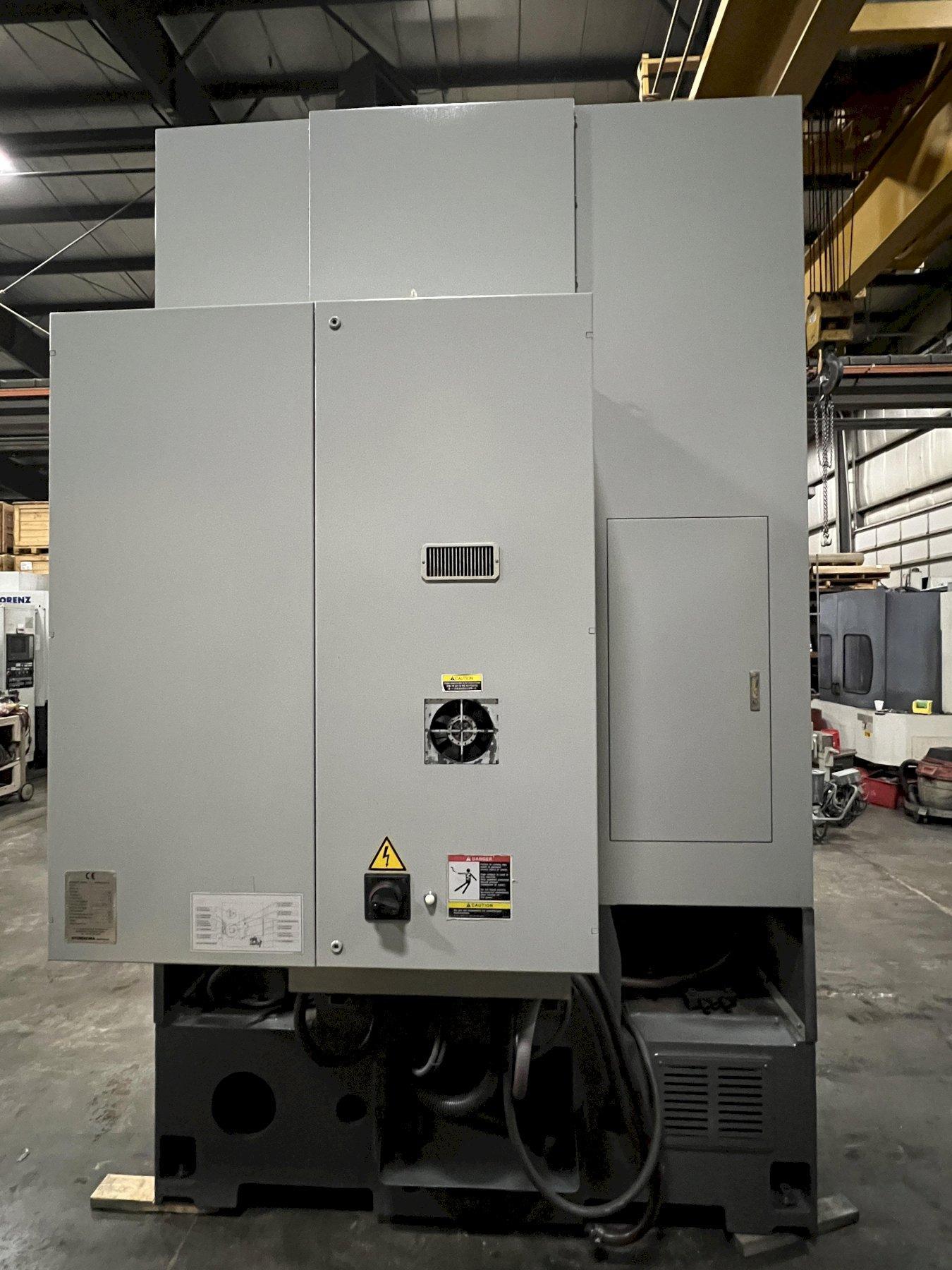

ELECTRICAL E

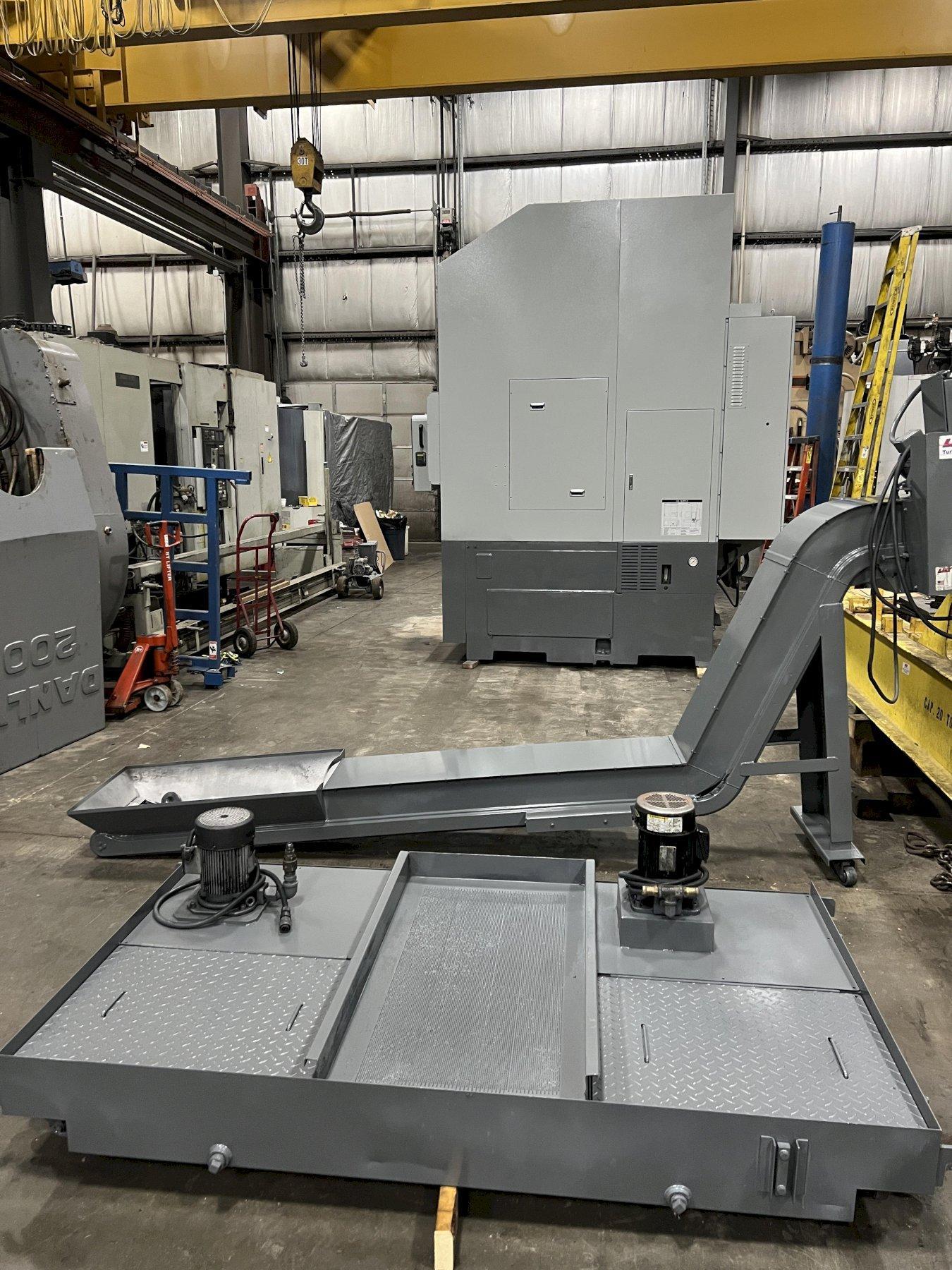

EQUIPPED WITH:
LIVE MILLING (LIVE TOOLING)
MISC. LIVE TOOL HOLDERS
MISC. MANUALS

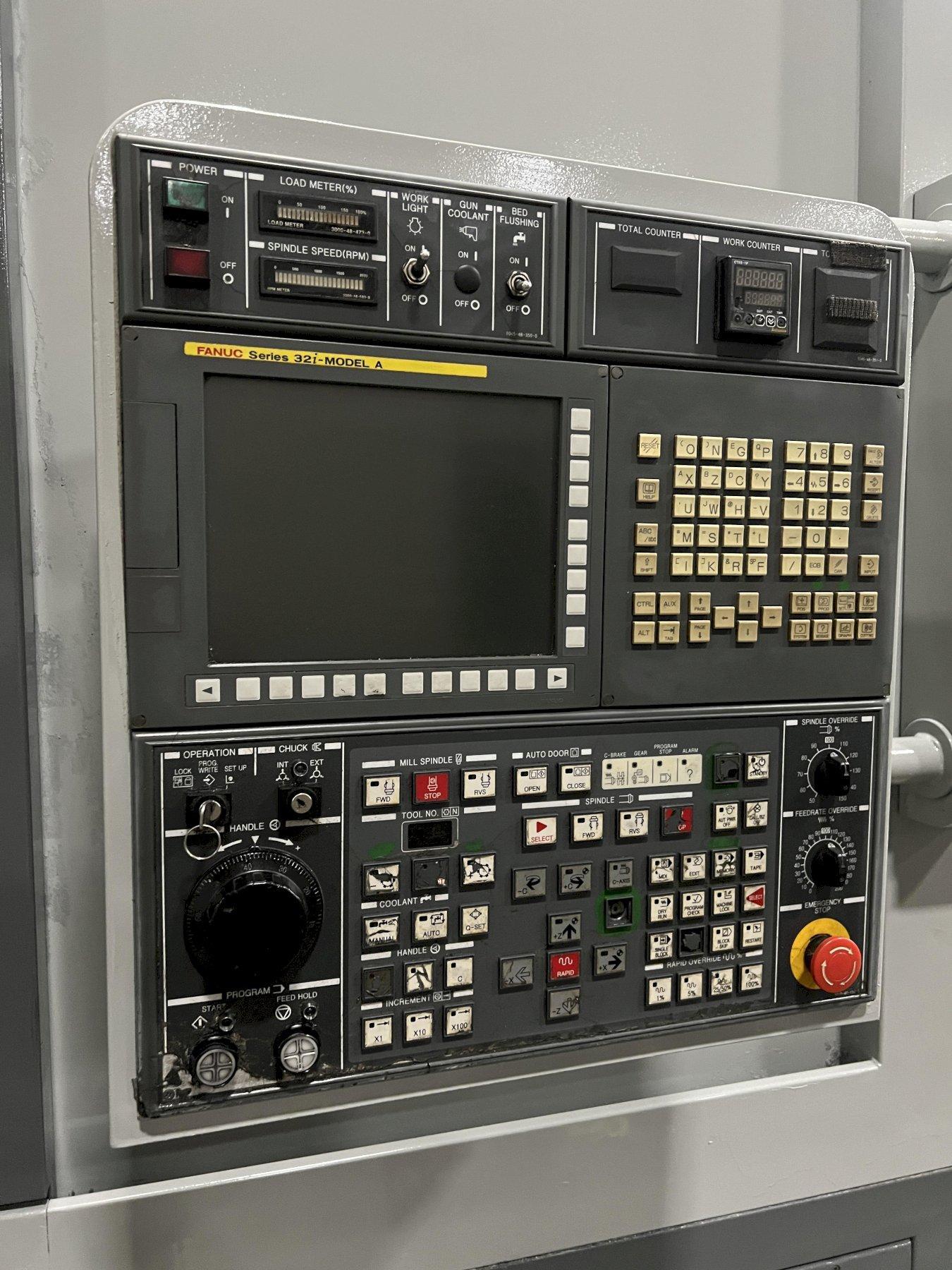

FANUC 21i-TB CNC CONTROL

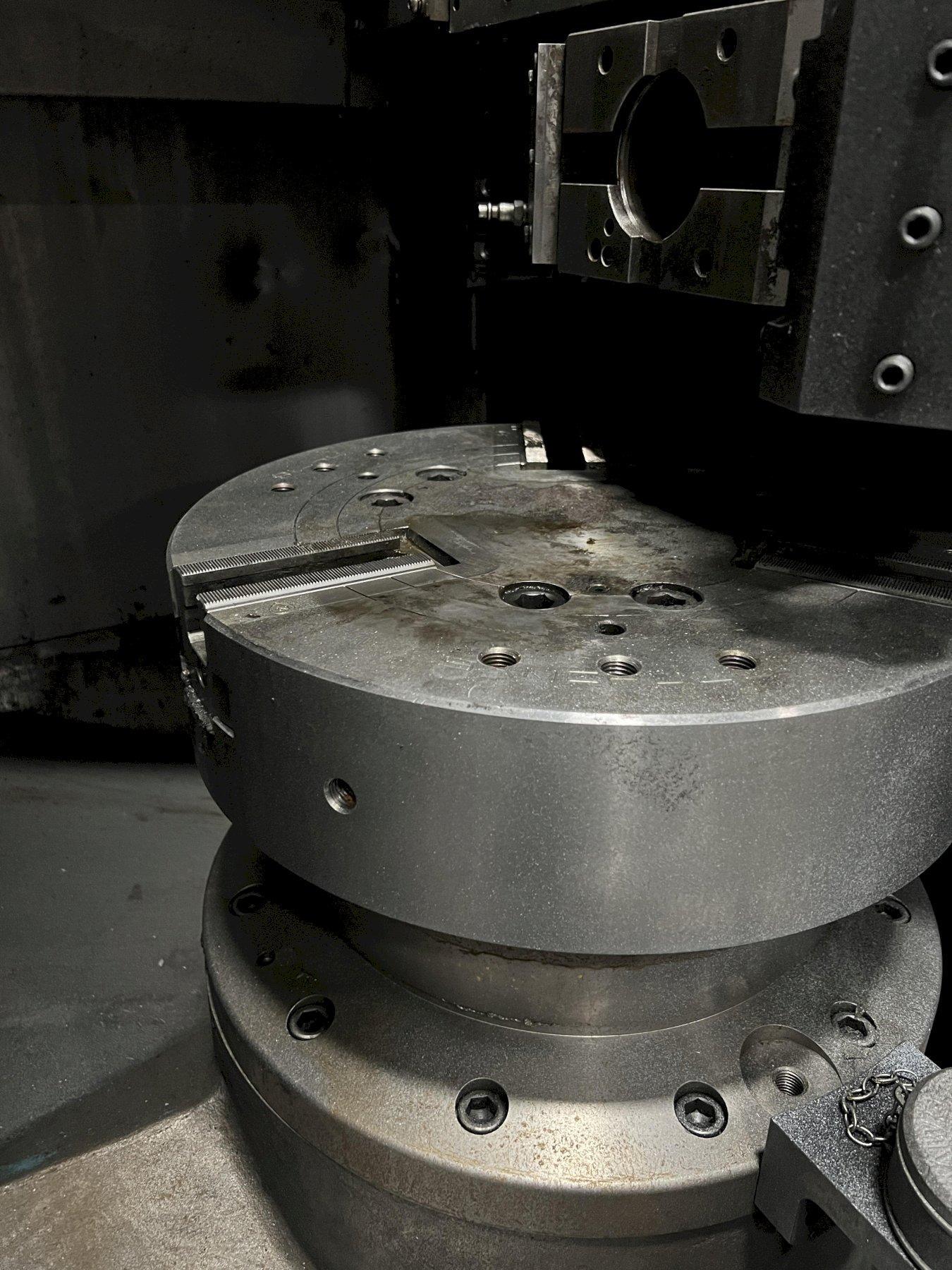

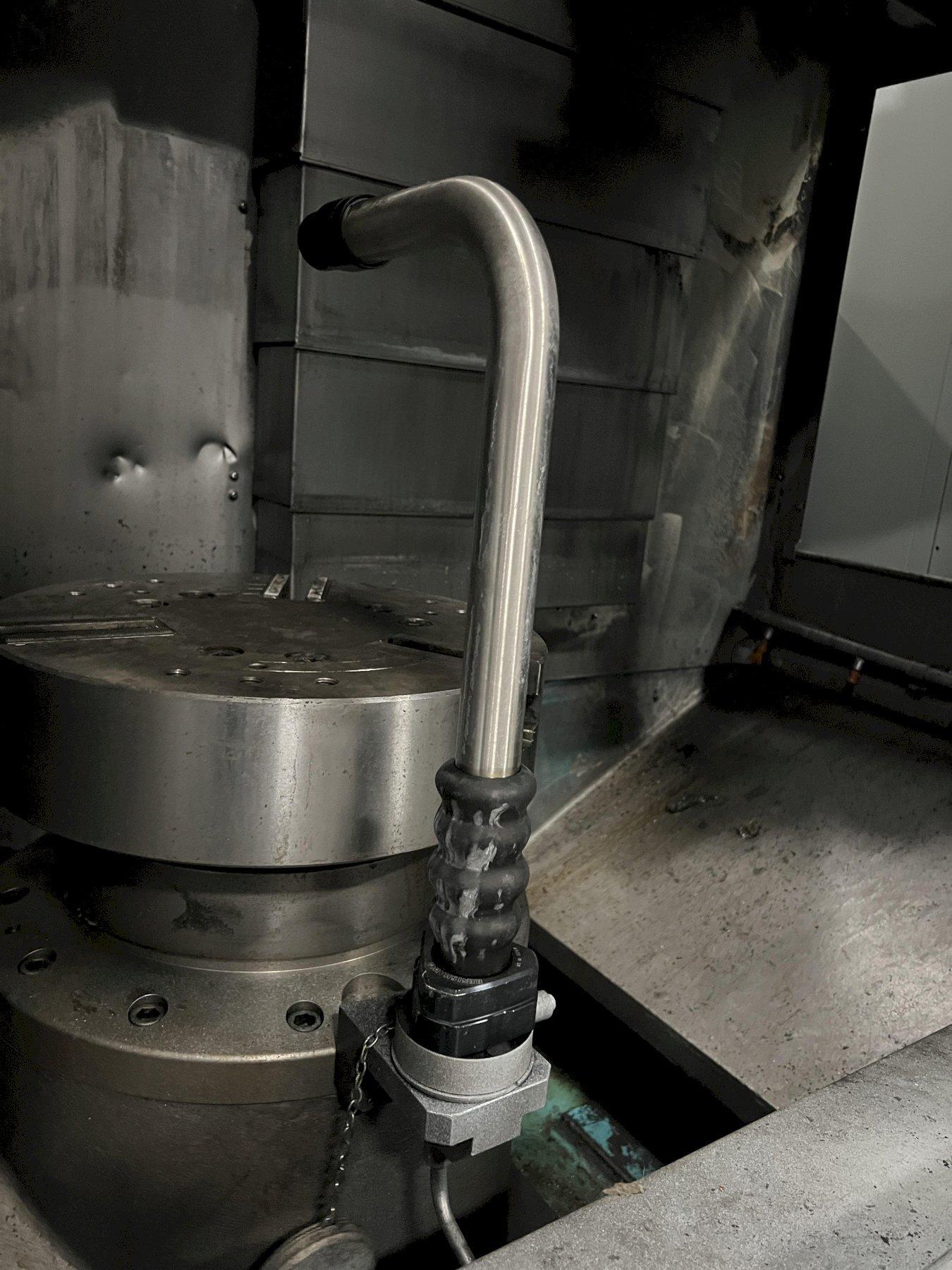

18" SAMCHULLY 3 JAW HYD. CHUCK
SPECIFICATIONS SUBJECT TO VERIFICATION
