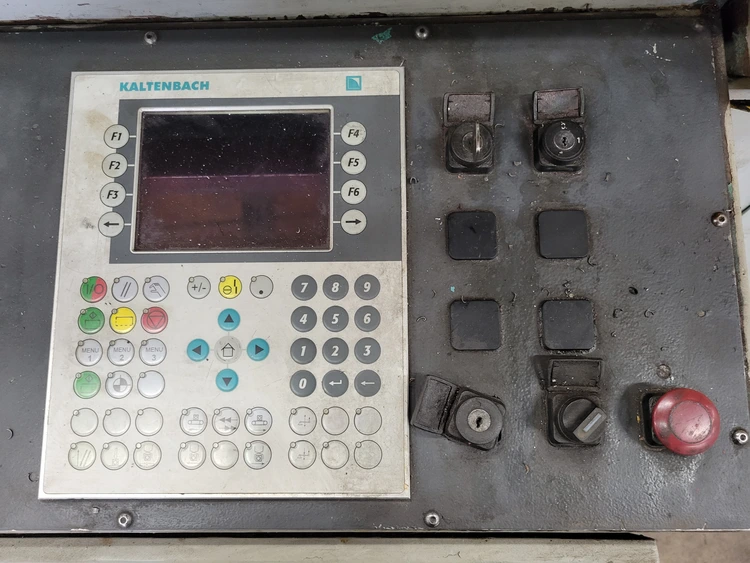

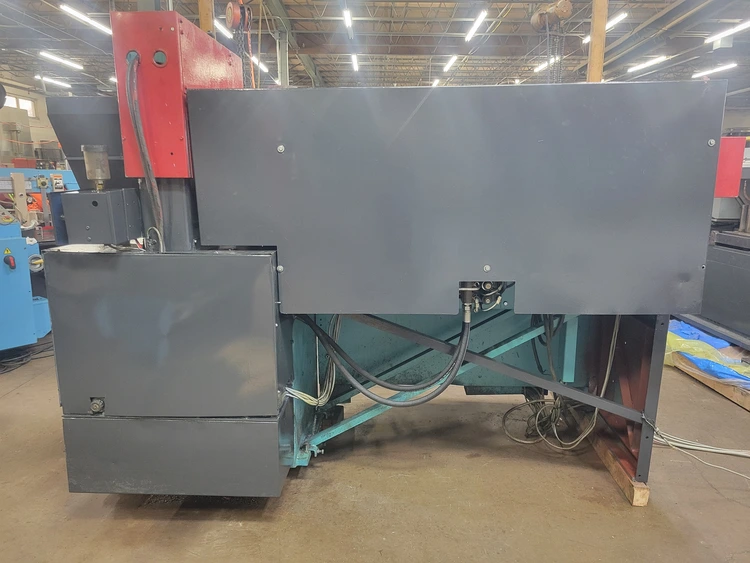

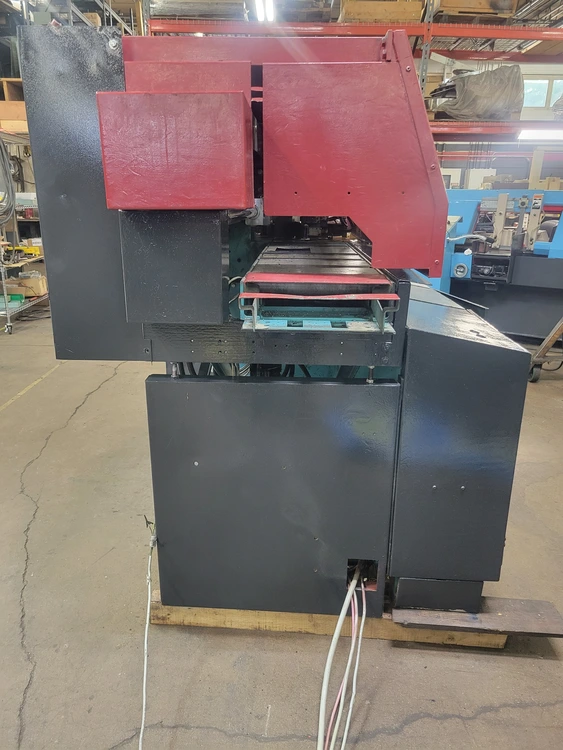

Specifications
Equipped With

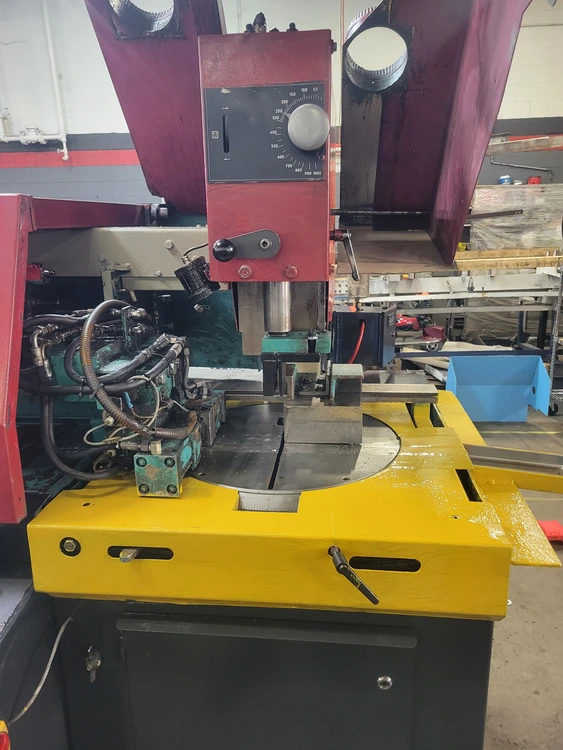

Saw blade . . . . . . . . . . . . . . . . . . 15.75 in (400mm)
Saw blade drive details . . . . . . . . . . . 50/4 x 14/80 mm
Working Range :
Round material - 90°/45° . . . . . . . . . . 5.1 in
Square material - 90° . . . . . . . . . . . . 4.7 in
Square material - 45° . . . . . . . . . . . . 4.3 in
*Flat material - 90° . . . . . . . . . . . . 12.0 x 0.8 in
*Flat material - 45° . . . . . . . . . . . . 9.6 x 1.1 in
Channels: vertical - 90°/45° . . . . . . . . 4.7 x 2.1 in
Channels: *horizontal - 90° . . . . . . . . . 9.4 x 3.3 in
Channels: *horizontal - 45° . . . . . . . . . 7.0 x 2.7 in
*Reduced in automatic mode (with infeed gripper max. 7.4")
Drive Capacity:
Saw motor . . . . . . . . . . . . . . . . . . 2.4/3.6 HP
Hydraulic system motor . . . . . . . . . . . 2.4 HP
Motorized length setting . . . . . . . . . . 0.50 HP
Coolant pump . . . . . . . . . . . . . . . . 0.13 HP
Cutting Speeds:
With saw blade 400 mm (standard) . . . . . . 50/100 SFM
or . . . . . . . . . . . . . . . . . . . 40/80 SFM
or . . . . . . . . . . . . . . . . . . . 60/120 SFM
Saw Blade Feed:
Infinitely variable to a chart . . . . . . . 0-1,000 mm/min
Rapid return stroke . . . . . . . . . . . . . 3,300 mm/min

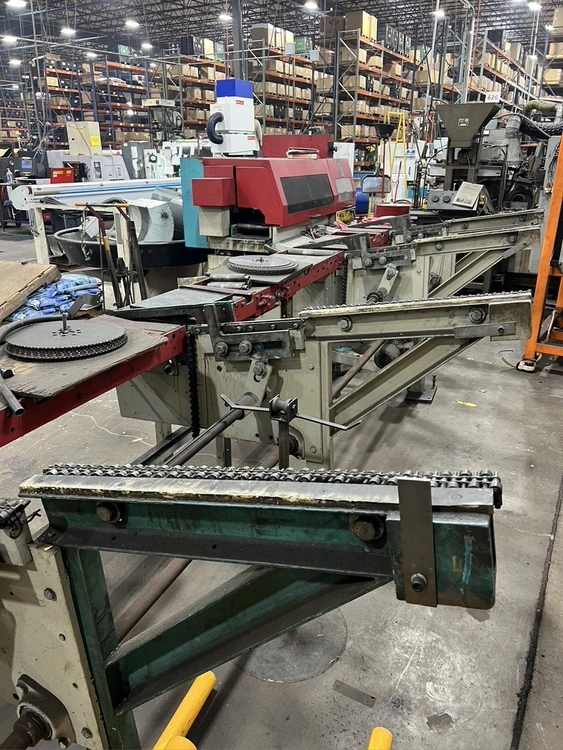

Material Feed Gripper:
Cut length range (standard) . . . . . . . . . 0.39-80.0 in
Feed carriage speed . . . . . . . . . . . . . 48 FPM
Weight:
Machine without accessories . . . . . . . . . approx 3,750 lbs
