GENERAL SPECIFICATIONS:

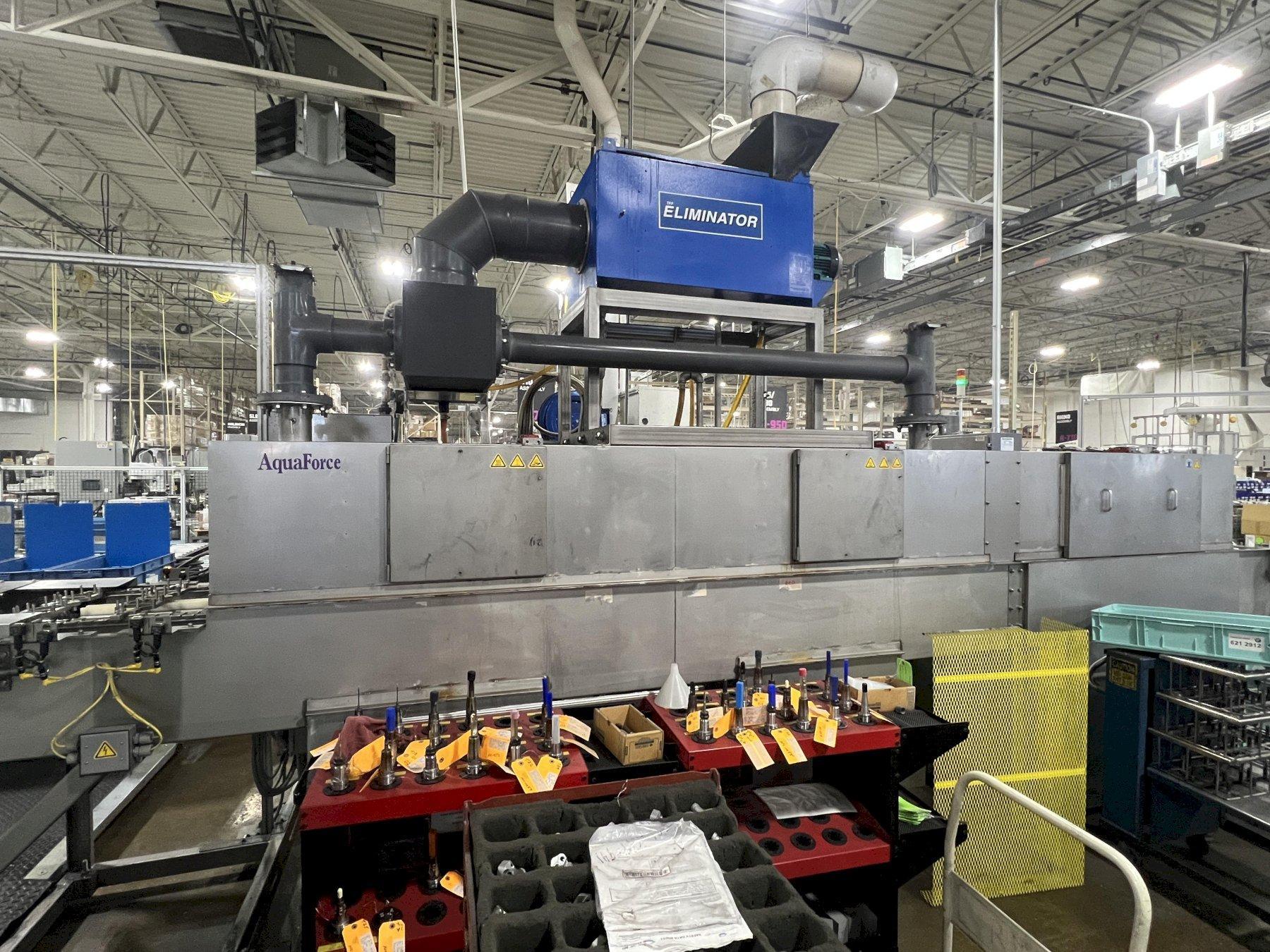

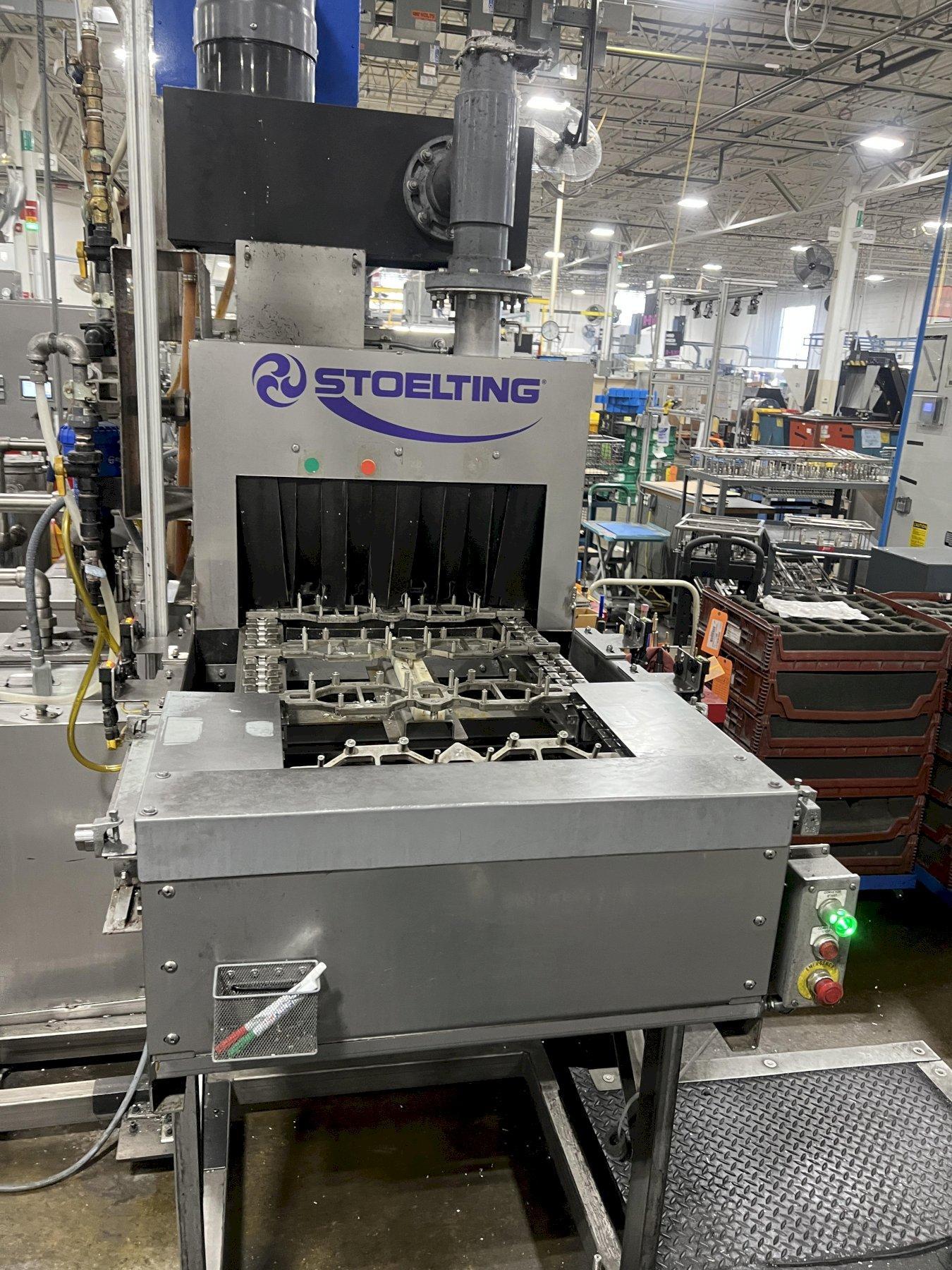

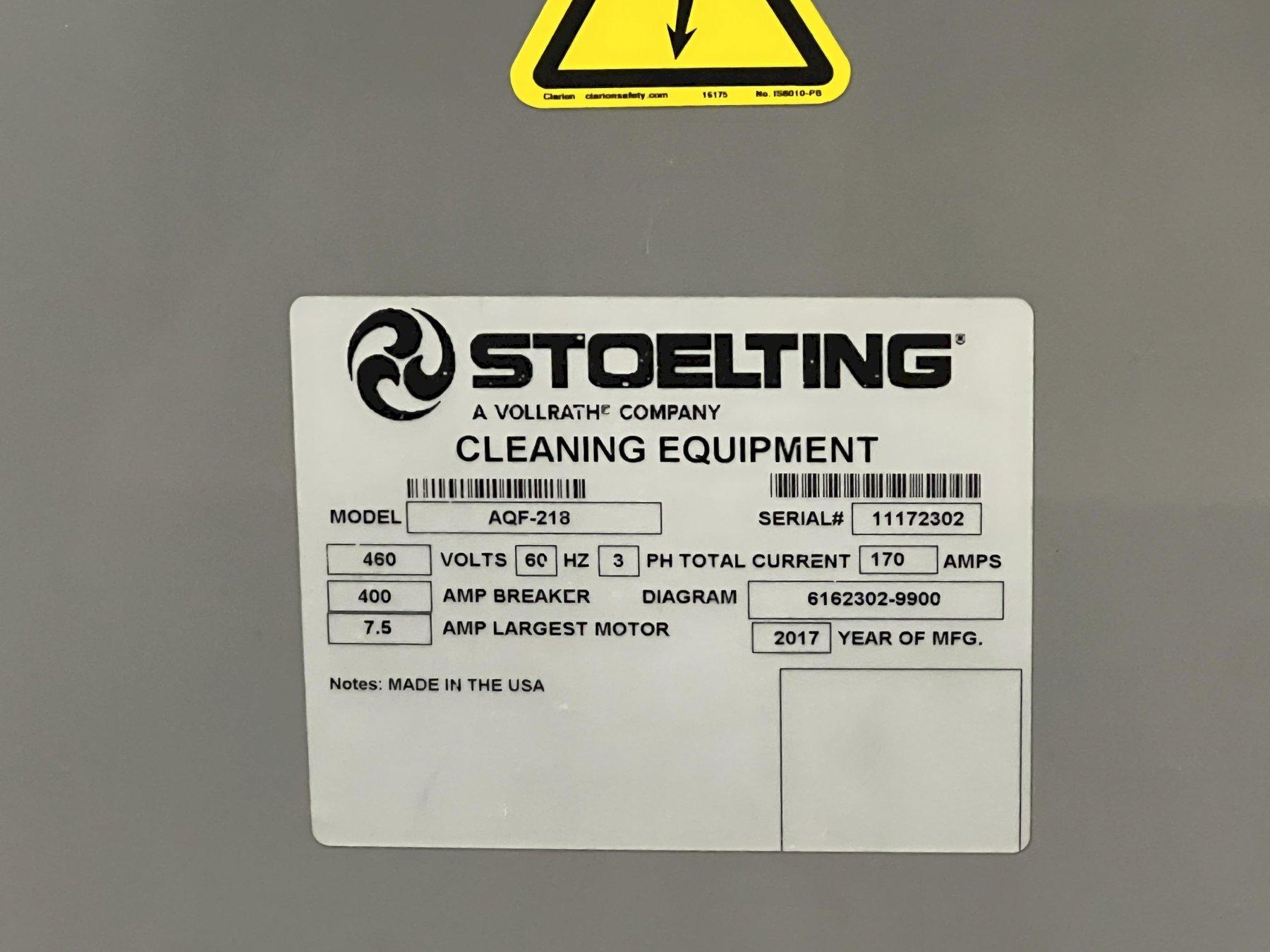

MAKE...................... STOELTING
MODEL..................... AQF-218
(AQUAFORCE WASH RINSE DRY)
SERIAL NUMBER............. 11172302
AGE (YEAR)................ 2017
BELT WIDTH................ NA
DIMENSIONS................ 21.5' X 7' X 10' T
WEIGHT.................... 15,000 LBS APPROX
EQUIPPED WITH:

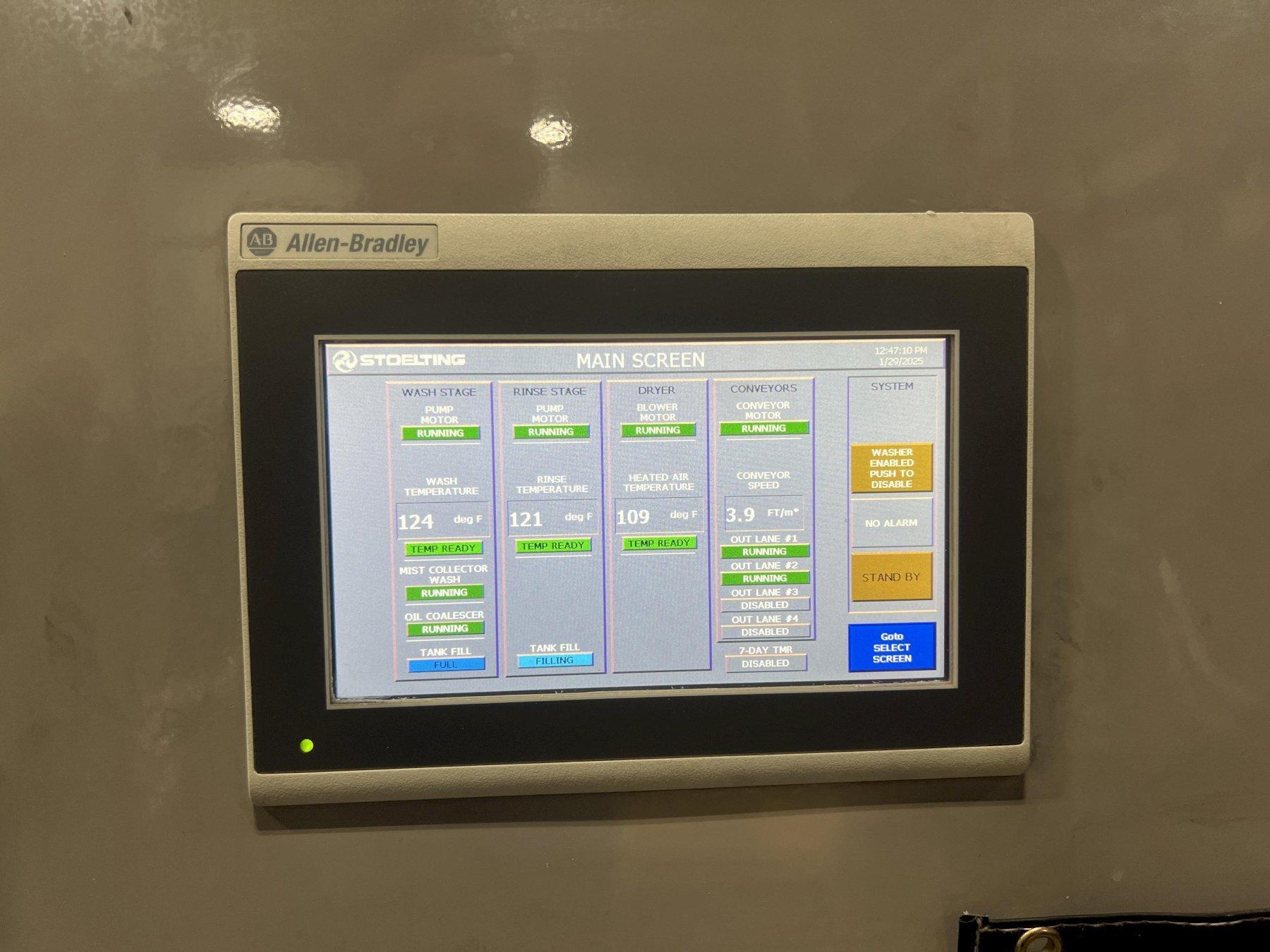

ALLEN BRADLEY CNC CONTROL
FURTHER INFORMATION:
All wetted surfaces, including pumps and plumbing, are constructed from stainless steel—the most premium and durable option available for a parts washer. This ensures maximum longevity, corrosion resistance, and reliability. No expense was spared in the design and build of this unit
Flow:
3' Load
5' Wash
5' Rinse
5' Dryer
3' Unload
GENERAL CONSTRUCTION:
Tanks 12 Gauge Stainless Steel
Canopies 14 Gauge Stainless Steel
Chip Baskets Stainless Steel
Piping Stainless
Spray Headers Stainless
Heated Blow-Off Construction Stainless Steel
Conductivity Monitors in Wash and Rinse Tanks
Dosatron Chemical Injection (Wash Only)

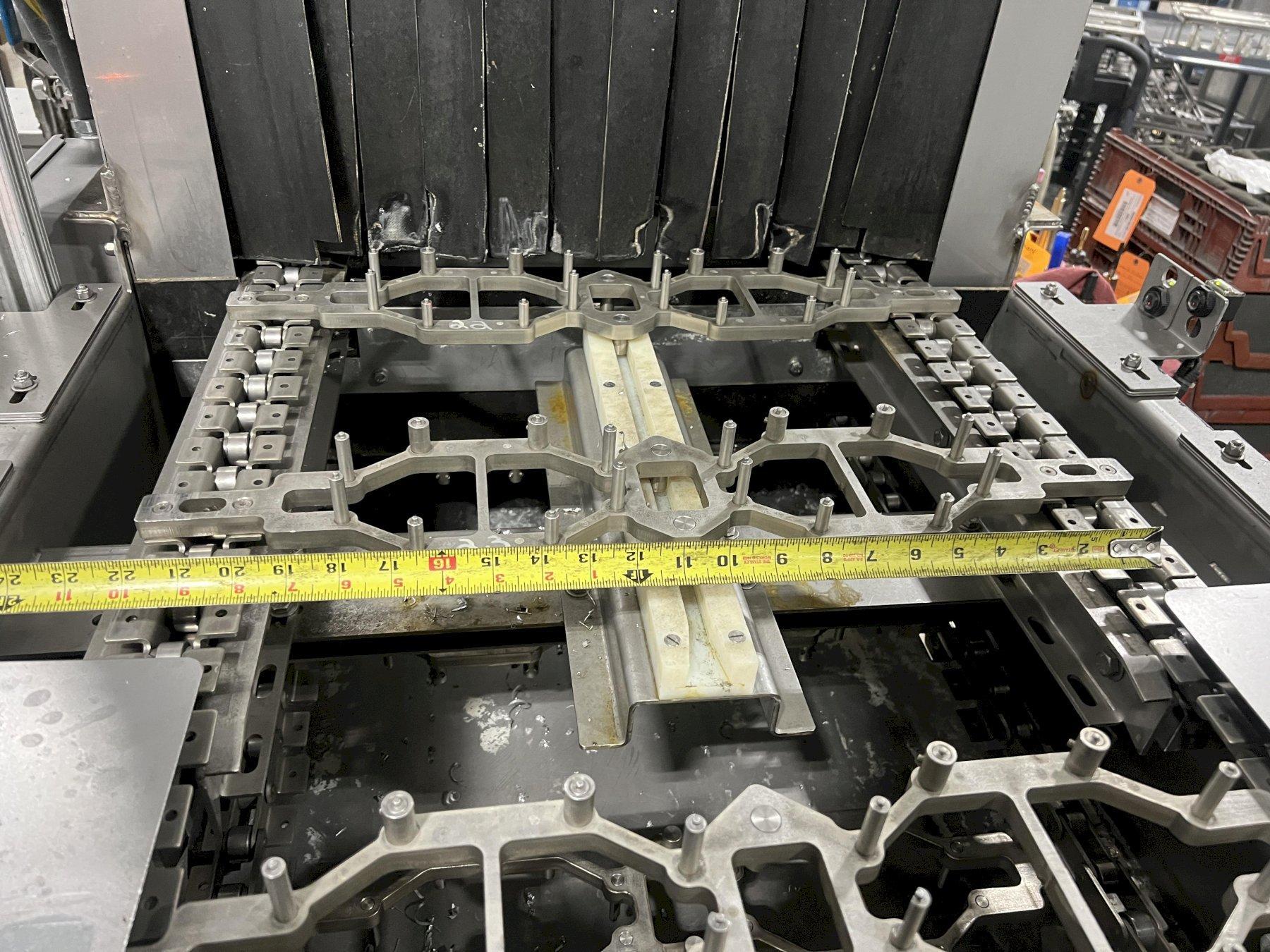

CONVEYOR CHAIN:
Wash Rinse Dry
(2) Strands of C-2602 Stainless Steel Roller Chain
With K1 Attachments 1-1/2" Pitch Oversized Rollers
With Part Fixtures at 12.00" Centers
Belt Sprockets: Stainless Steel
1 HP Variable Speed AC Drive Motor .5 to 5 FPM
UTILITES:
Incoming water:
Nominal 40 PSI
Maximum 125 PSI
Tank Fill: 3/4" NPT Tank Drains 2" NPT
Electrical: 460 V/60HZ/3PH
CANOPY VENTING:
Mist Collector NUTECH ME1400XC 3 HP 460 V 1400 CFM

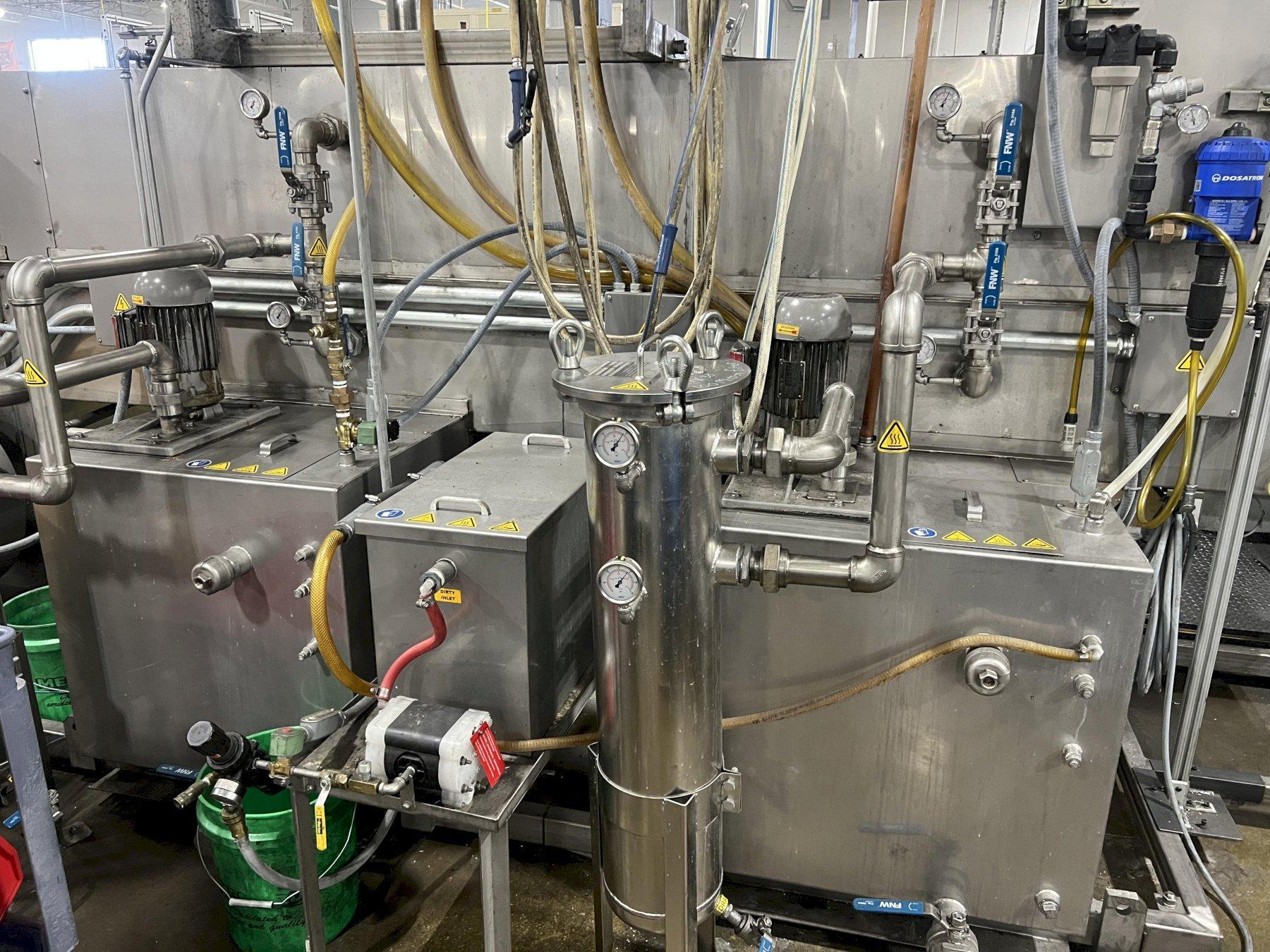

PUMPS:
316 Stainless Steel Fitted, Sealless, Painted Exterior
FILTRATION: Rosedale Model NCO-830 Stainless Steel Housing W/100 Micron Bags Wash & Rinse Stages.
OIL REMOVAL:
PRAB Model CF2-2A-SS Cross Flow Separator Stainless Steel Construction
2 GPM Oil Pickup Rating
1 SCFM @ 20 PSI Air Required 1/4" NPT Air Inlet
HEAT SPECS:
42 KW Electric Immersion Heaters
(4) 10.5 KW Heaters In Wash & Rinse Tanks
30 KW Modular Duct Heaters
(5) 6 KW Heaters in Heated BlowOff Tank
EQUIPPED WITH:
150 Gallon Wash Tank 3 HP Gusher Stainless Steel Pump 52 GPM, 140 Deg. F.
150 Gallon Rinse Tank 3 HP Gusher Stainless Steel Pump 36 GPM, 140 Deg. F.
7.5 HP 1000 CFM Blower 250 Deg. F
Canopy Access Doors with Safety Switches
Solution Tank Access Doors
Remote Stat Stop E-Stop at each end.
SPECIFICATIONS SUBJECT TO VERIFICATION
